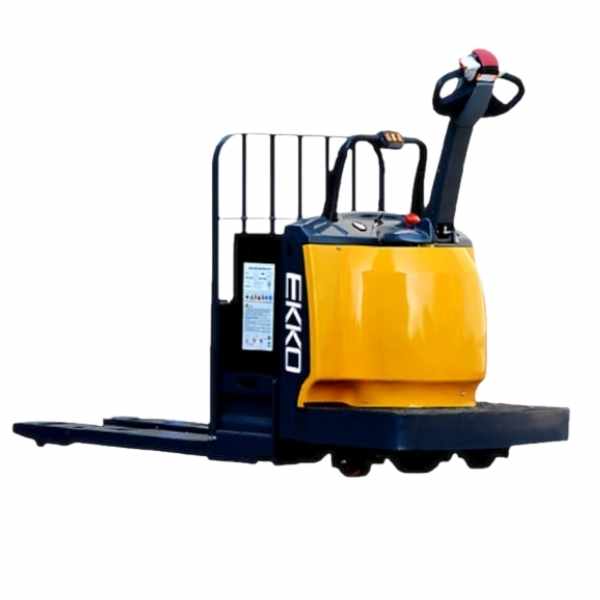

EKKO EP30A Rider Pallet Jack
The EKKO EP30A Rider Pallet Jack combines the versatility of a traditional pallet jack with the full power of electric lifting and driving capabilities. Engineered for high-efficiency operations, it is ideal for loading and unloading trucks, maneuvering through loading docks, stock rooms, manufacturing floors, and warehouses.
Built with high-quality steel and precision-engineered components, the EP30A is designed to endure challenging environments. Its durable drive system ensures smooth performance across various terrains, absorbing impacts and handling directional changes with ease. Powered by advanced lithium technology, this rider pallet jack offers reliable performance, reduced downtime, and confident operation in any application.
EP30A Rider Pallet Jack Main Features
- Load Capacity 6600lbs.
- Fork Size 27×48
- Raised Height 9.17″
- Lowered Height 3.26″
- Curtis Controller
- ZF AC Driver Motor
- Polyurethane Wheels
- Steel Entry Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Battery 24V/280Ah Included
- 3 Years Limited Warranty
Rider Pallet Jack Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | – | EP30A |
| Lift | – | Electric |
| Drive | – | Electric |
| Load Capacity | lb | 6600 |
| Load Center | in | 24 |
| Wheelbase | in | 67.72 |
| Lowered Fork Height | in | 3.26 |
| Lifting Height | in | 9.17 |

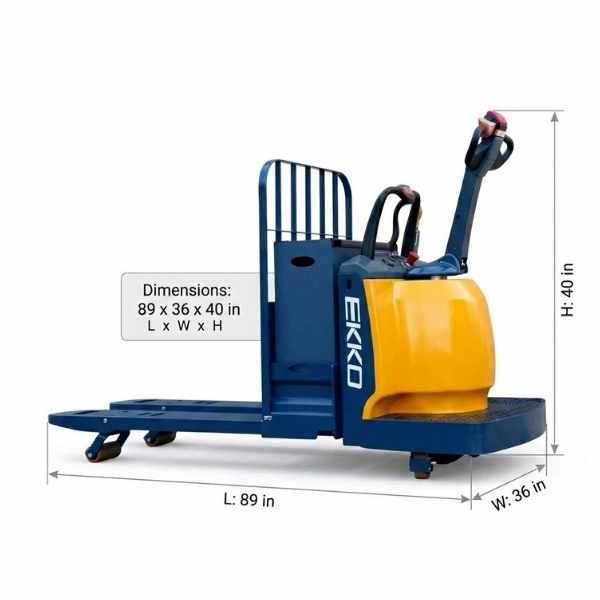

| Overall Length | in | 88.58 |
| Overall Width | in | 35.83 |
| Fork Size (s/e/l) | in | 2/9/48 |
| Outside Distance of Fork | in | 27 |
| Turning Radius | in | 81.34 |
| Lifting Speed (Laden/Unladen) | in/s | 7.5 / 8 |
| Lowering Speed (Laden/Unladen) | in/s | 36 / 30 |
| Max Gradeability (Laden/Unladen) | % | 5/15 |
| Brake Type | – | Electromagnetic |
| Drive Motor | W | 3000 |
| Lift Motor | W | 2200 |
| Charger | V/A | 24 / 30 |
| Battery Voltage / Capacity | V/Ah | 24V/280Ah |
| Drive Motor Type | – | AC Motor |
| Noise Level at Operator Seat | dB(A) | 70 |
| Service Weight (With Battery) | lb | 1720 |
