Aardwolf Slab Rack Post 800mm

Aardwolf Slab Rack Post 800mm

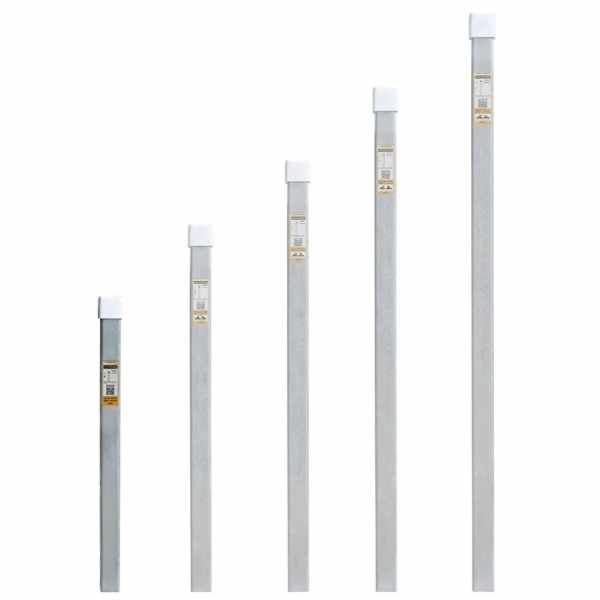

Aardwolf Slab Rack Post 800mm x 50 x 50 with a 5mm wall thickness.  Steel yield strength of 345 MPa.

ASR06 Main Features

Among the features of this wonderful Slab Rack, we find:

• The rack heights are aligned for glass/stone dolly used for transporting slab material.
• Galvanised square tube posts with rubber post caps to prevent scratches to polished surfaces.
• Rubber-topped rails protect the slab edges and finish on marble and granite.

The fabrication of Aardwolf Slab & Bundle Racks

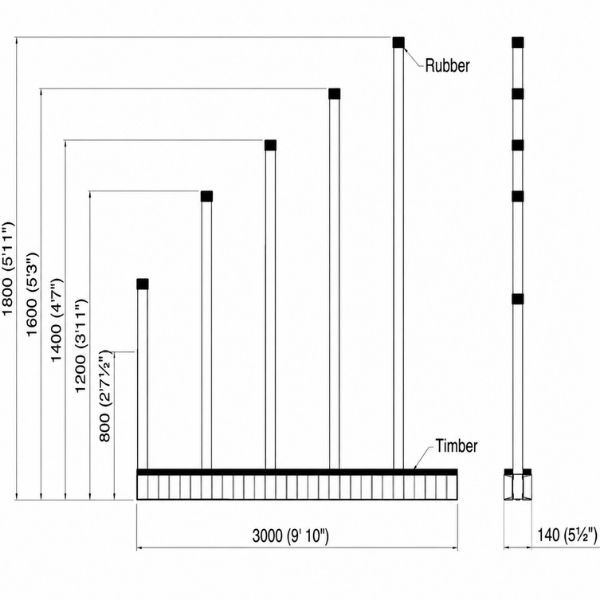

Slab Rack Post 800mm Technical Specifications

Weight: 6.5kg/14.55 lb

Storage Capacity

The maximum number of 20mm thick marble or granite slabs, with maximum size slabs 3200 x 1100 x 20mm, that can be safely stored per bay (using 2 post) at a maximum 4° lean is: 44 slabs

Storage Capacity

The maximum number of marble or granite slabs that can be safely stored per bay at a 4° lean depends on the type of post selected, the slab thickness and dimensions. Aardwolf has developed a simple calculator specifically for the users to calculate the slab storage capacity.

Calculate Post Storage Capacity

(If your screen is small, you can open the calculator in a new page by clicking here)

Warning: Do not use the Aardwolf Slab Rack Storage Calculator to calculate the storage capacity of competitor’s posts as they commonly use posts with a 3mm wall thickness and steel of a lower strength, sometimes with yield strength as low as 210 MPa.
