Alpha Hoses - 0002
,

Alpha Hoses

Alpha Professional Tools
  • All-Weather Flexibility From -40°F To +140°F
  • Kink-Free Under Pressure
  • Lightweight and Abrasion Resistant
  • Zero Memory Allowing It To Lay Flat
  • Made of A Premium Hybrid Polymer Material
  • Comes in Many Lengths
  • Pneumatic and Water Hoses Available
SKU: N/A Categories: ,

SKU: N/A Categories: ,
Free Shipping on Orders $300+
(except Freight)
30 days returns
Payment Secure System

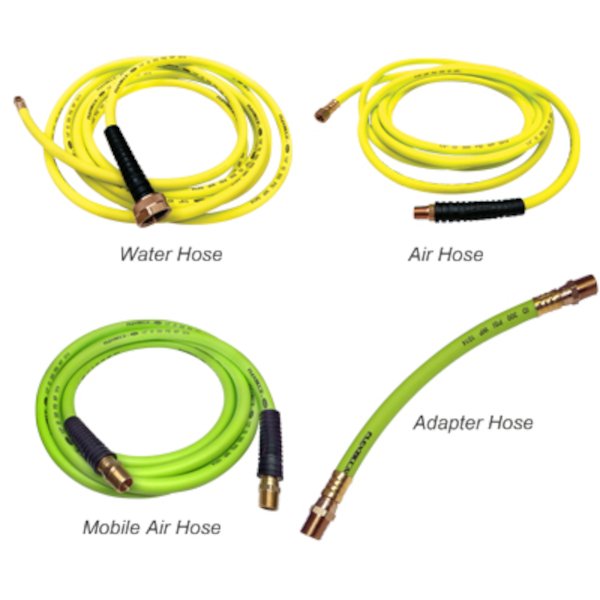

Alpha Hoses

Alpha Hoses are designed to deliver superior performance for air and water lines, now available in extended lengths to meet diverse job requirements. Made from Flexzilla®, a Premium Hybrid Polymer, these hoses offer unmatched flexibility in all weather conditions, from -40°F to +140°F. Built to perform, Alpha Hoses are kink-free under pressure, abrasion resistant, and feature zero memory, ensuring they lay flat exactly where placed and coil effortlessly after use. Durable, reliable, and easy to handle, they are the perfect solution for demanding environments.

Hoses Main Features

  • All-Weather Flexibility From -40°F To +140°F
  • Kink-Free Under Pressure
  • Lightweight and Abrasion Resistant
  • Zero Memory Allowing It To Lay Flat
  • Made of A Premium Hybrid Polymer Material
  • Comes in Many Lengths
  • Pneumatic and Water Hoses Available
  • Many Connectors Available
  • *Note: Hoses 20ft. Or Longer Are Special Order and Are Not Returnable

Alpha Filter/Regulator Manifold System Specifications

Part No. Size Diameter Type Recommended For Threads
1030-0002 15ft. (4.5m) 1/4″ Air Hose AIR-680/830/850/680UW & PSG-600/658 1/4″ NPSM x 1/4″ NPT Male
1030-0010 20ft. (6.0m) 1/4″ Air Hose AIR-680/830/850/680UW & PSG-600/658 1/4″ NPSM x 1/4″ NPT Male
1030-0012 25ft. (7.6m) 1/4″ Air Hose AIR-680/830/850/680UW & PSG-600/658 1/4″ NPSM x 1/4″ NPT Male
1030-0014 30ft. (9.1m) 1/4″ Air Hose AIR-680/830/850/680UW & PSG-600/658 1/4″ NPSM x 1/4″ NPT Male
1030-0016 35ft. (10.6m) 1/4″ Air Hose AIR-680/830/850/680UW & PSG-600/658 1/4″ NPSM x 1/4″ NPT Male
1030-0018 40ft. (12.1m) 1/4″ Air Hose AIR-680/830/850/680UW & PSG-600/658 1/4″ NPSM x 1/4″ NPT Male
1030-0003 15ft. (4.5m) 1/4″ Water Hose AIR-680/830/850/680UW & PSG-600/658 1/4″ NPSM x 3/4″ 11-1/2″ GHT
1030-0011 20ft. (6.0m) 1/4″ Water Hose AIR-680/830/850/680UW & PSG-600/658 1/4″ NPSM x 3/4″ 11-1/2″ GHT
1030-0013 25ft. (7.6m) 1/4″ Water Hose AIR-680/830/850/680UW & PSG-600/658 1/4″ NPSM x 3/4″ 11-1/2″ GHT
1030-0015 30ft. (9.1m) 1/4″ Water Hose AIR-680/830/850/680UW & PSG-600/658 1/4″ NPSM x 3/4″ 11-1/2″ GHT
1030-0017 35ft. (10.6m) 1/4″ Water Hose AIR-680/830/850/680UW & PSG-600/658 1/4″ NPSM x 3/4″ 11-1/2″ GHT
1030-0019 40ft. (12.1m) 1/4″ Water Hose AIR-680/830/850/680UW & PSG-600/658 1/4″ NPSM x 3/4″ 11-1/2″ GHT
1030-0031 15ft. (4.5m) 1/2″ Air Hose PSC-150 3/8″ NPSM x 3/8″ NPT Male
1030-0033 20ft. (6.0m) 1/2″ Air Hose PSC-150 3/8″ NPSM x 3/8″ NPT Male
1030-0035 25ft. (7.6m) 1/2″ Air Hose PSC-150 3/8″ NPSM x 3/8″ NPT Male
1030-0037 30ft. (9.1m) 1/2″ Air Hose PSC-150 3/8″ NPSM x 3/8″ NPT Male
1030-0039 35ft. (10.6m) 1/2″ Air Hose PSC-150 3/8″ NPSM x 3/8″ NPT Male
1030-0041 40ft. (12.1m) 1/2″ Air Hose PSC-150 3/8″ NPSM x 3/8″ NPT Male
1030-0030 15ft. (4.5m) 1/4″ Water Hose PSC-150 1/4″ NPSM x 3/4″ 11-1/2″ GHT
1030-0032 20ft. (6.0m) 1/4″ Water Hose PSC-150 1/4″ NPSM x 3/4″ 11-1/2″ GHT
1030-0034 25ft. (7.6m) 1/4″ Water Hose PSC-150 1/4″ NPSM x 3/4″ 11-1/2″ GHT
1030-0036 30ft. (9.1m) 1/4″ Water Hose PSC-150 1/4″ NPSM x 3/4″ 11-1/2″ GHT
1030-0038 35ft. (10.6m) 1/4″ Water Hose PSC-150 1/4″ NPSM x 3/4″ 11-1/2″ GHT
1030-0040 40ft. (12.1m) 1/4″ Water Hose PSC-150 1/4″ NPSM x 3/4″ 11-1/2″ GHT
1030-0025 1′ (0.3m) 1/2″ Adapter Manifold 1/2″ NPT Swivel
1030-0026 2ft. (0.6m) 1/2″ Adapter Manifold 1/2″ NPT Swivel
1030-0027 3ft. (0.9m) 1/2″ Adapter Manifold 1/2″ NPT Swivel

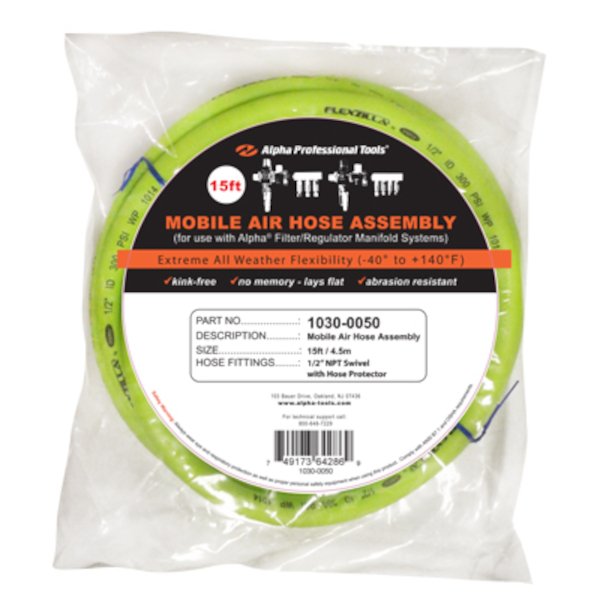

1030-0050 15ft. (4.5m) 1/2″ Mobile Manifold 1/2″ NPT Swivel w/Hose Protector
1030-0052 20ft. (6.0m) 1/2″ Mobile Manifold 1/2″ NPT Swivel w/Hose Protector
1030-0054 25ft. (7.6m) 1/2″ Mobile Manifold 1/2″ NPT Swivel w/Hose Protector
1030-0056 30ft. (9.1m) 1/2″ Mobile Manifold 1/2″ NPT Swivel w/Hose Protector
1030-0058 35ft. (10.6m) 1/2″ Mobile Manifold 1/2″ NPT Swivel w/Hose Protector
1030-0060 40ft. (12.1m) 1/2″ Mobile Manifold 1/2″ NPT Swivel w/Hose Protector
1030-0200 30ft. (9.1m) 1/4″ Air / 1/8″ Water Twin Water/Air Hose PSP-158 1/4″ BSPT Air / 1/8″ BSPT Water
1030-0201 30ft. (9.1m) 1/4″ Air / 1/8″ Water Twin Water/Air Hose PSP-114 1/4″ BSPT Air / 1/8″ NPT Water

Additional Information

PartNo UPC Code Pkg. Weight (lbs) Package Dimensions Commodity Code Country Of Origin
1030-0002 749173641565 1.06 11in x 11in x 2in 4009.22.0050 USA
1030-0010 749173641633 1.32 11in x 11in x 2.5in 4009-22-0050 USA
1030-0012 749173641657 1.70 11in x 11in x 3in 4009.22.0050 USA
1030-0014 749173641671 1.88 11in x 11in x 3.5in 4009.22.0050 USA
1030-0016 749173641695 2.16 11in x 11in x 3.75in 4009.22.0050 USA
1030-0018 749173641718 2.44 11in x 11in x 4in 4009.22.0050 USA
1030-0003 749173641572 1.12 11in x 11in x 2in 4009.22.0050 USA
1030-0011 749173641640 1.36 11in x 11in x 2.5in 4009.22.0050 USA
1030-0013 749173641664 1.76 11in x 11in x 3in 4009.22.0050 USA
1030-0015 749173641688 2.04 11in x 11in x 3.5in 4009.22.0050 USA
1030-0017 749173641701 2.38 11in x 11in x 3.75in 4009.22.0050 USA
1030-0019 749173641725 2.72 11in x 11in x 4in 4009.22.0050 USA
1030-0031 749173641749 2.30 11in x 11in x 2in 4009.22.0050 USA
1030-0033 749173641763 1.32 11in x 11in x 2.5in 4009.22.0050 USA
1030-0035 749173641787 1.88 11in x 11in x 3in 4009.22.0050 USA
1030-0037 749173641800 2.16 11in x 11in x 3.5in 4009.22.0050 USA
1030-0039 749173641824 2.16 11in x 11in x 3.75in 4009.22.0050 USA
1030-0041 749173641848 2.44 11in x 11in x 4in 4009.22.0050 USA
1030-0030 749173641732 1.20 11in x 11in x 2in 4009.22.0050 USA
1030-0032 749173641756 2.50 11in x 11in x 2.5in 4009.22.0050 USA
1030-0034 749173641770 2.90 11in x 11in x 3in 4009.22.0050 USA
1030-0036 749173641794 3.30 11in x 11in x 3.5in 4009.22.0050 USA
1030-0038 749173641817 3.70 11in x 11in x 3.75in 4009.22.0050 USA
1030-0040 749173641831 4.10 11in x 11in x 4in 4009.22.0050 USA
1030-0025 749173642838 0.45 3917.33.0000 USA
1030-0026 749173642845 0.65 3917.33.0000 USA
1030-0027 749173642852 1.30 3917.33.0000 USA
1030-0050 749173642869 3917.33.0000 USA
1030-0052 749173642876 3917.33.0000 USA
1030-0054 749173642883 3917.33.0000 USA
1030-0056 749173642890 3917.33.0000 USA
1030-0058 749173642906 3917.33.0000 USA
1030-0060 749173642913 3917.33.0000 USA
1030-0200 749173646386 11in x 11in x 3.5in 4009.22.0050 USA
1030-0201 749173646393 11in x 11in x 3.5in 4009.22.0050 USA
SKU: N/A Categories: ,
Weight 3 lbs
Dimensions 14 × 12 × 4 in
