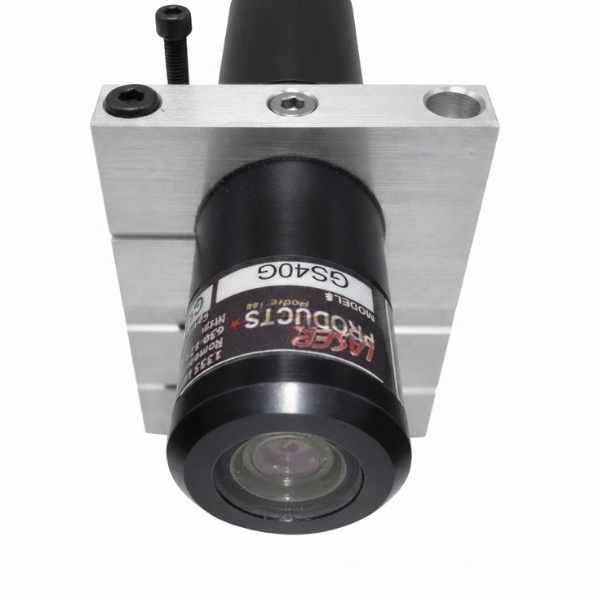

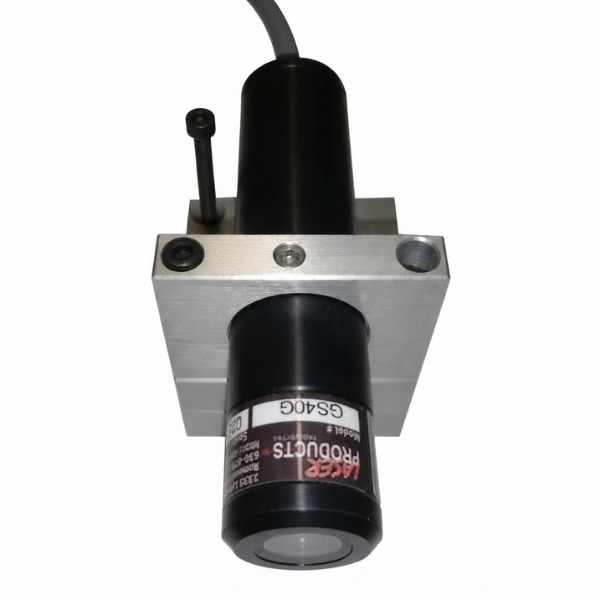

GS-40 Saw Laser
The GS-40 Saw Laser provides you with a visible laser line for precise cuts. This product eliminates the guess-work by giving you the exact location of your cuts every time. The GS-40’s laser takes advantage of the strongest powered lasers on the market for incredibly bright lines.

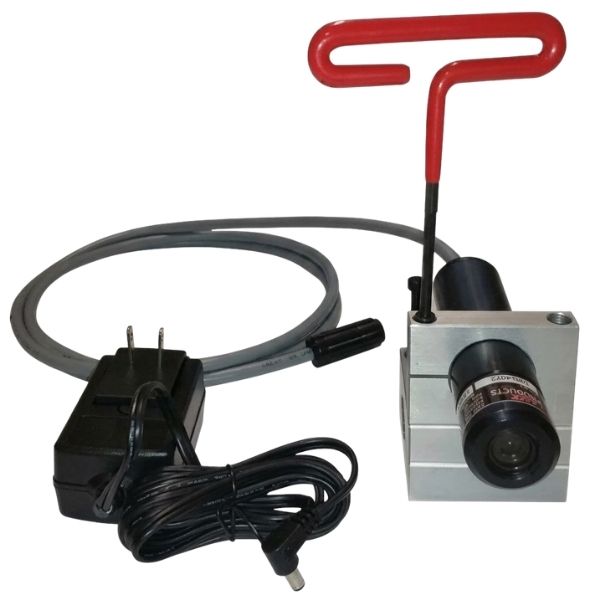

Primarily designed for bridge saws and CNC equipment, the GS-40 can also be used for band saws and permanently mounted table or panel saws. The unit comes as a green or red laser and is supplied with 110-240 VAC input and is vibration and water resistant – IP 65 rated (NEMA 4). It will project a fine green or red line at a 75 degree fan angle which will enable you to position the work piece, slabs or wood and know exactly where the blade is going to cut. The entire laser is hardcoat anodized to make it rugged enough for any application. There is also a mounting bracket included with the laser that allows you to clamp it on any pipe that has an outside diameter of 0.75″ – 1.75″ OD pipe.
1. Position the unit where the beam projects evenly across your saw path. This can be easily done with the use of our laser mount.
2. Run the blade across the material without cutting completely through.
3. Align the laser to match that cut, keeping it as perpendicular to the saw as possible and then tighten the laser down. In most installations, the laser line will actually project on the edge of the saw blade as well as the material to be cut.
The GS-40 Saw Laser is already calibrated to project a straight laser line. There is no user calibration to be done with the exception of mounting the unit to your saws or for any other specific purposes. For wet saw applications, the unit has an easy wipe off window to remove any water mist, tile/stone particles that may collect on the lens. The same holds true for saw dust.
