Sector Stone Router Machine Triple Speed

Description

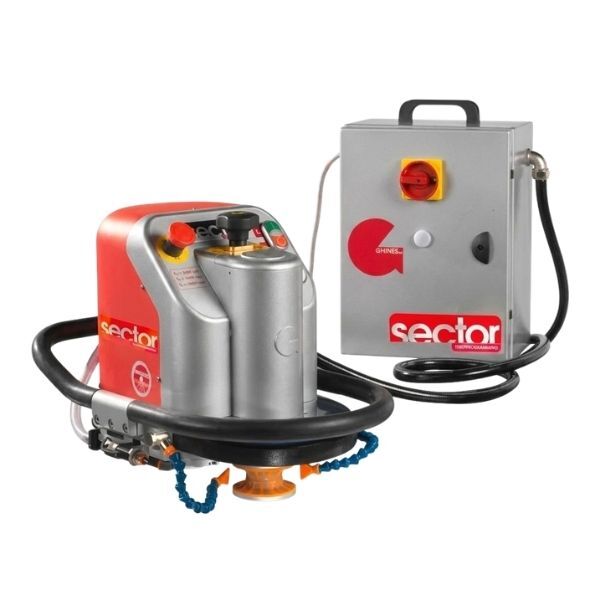

Sector Stone Router Machine Triple Speed

SECTOR STONE ROUTER MACHINE TRIPLE SPEED allows to exploit the properties of every single tool to their maximum and work any material (the diffusion of synthetic materials make necessary an intermediate speed not to make opaque the resin bonded components).This simple process keeps the same schedule and costs both on “simple” profiles (full bullnose, bird’s beak etc) and on of bigger complexity.

The shaping and polishing process is realized into a number from 5 to 7 phases, according to the kind of material.
The three different tool rotation speeds can be set through the S₁, S₂ and S₃ push buttons:

Max speed (10000 rpm): Stock removal and finishing of natural materials (marble, granite…)

Intermediate speed (6000 rpm): Stock removal and finishing of any type of synthetic material

Min. speed (2600 rpm): Polishing of both natural and synthetic materials by vulcanized GHINESTOOLS wheels

High power, constant torque
SECTOR STONE ROUTER MACHINE TRIPLE SPEED is equipped with an electronic vectorial inverter to optimize the supplied power, maintaining constant the torque at any rpm.

Universal supply tension
Even if equipped with a three phase motor, SECTOR TRIPLESPEED is supplied with single phase 230V/50-60Hz, therefore it can be plugged in standard single phase outlets.

Gliding system

• Lubricated nylon rollers (AQUAWHEEL)
• Veil of water (AQUAPLANING)Spindle (stainless steel)
• Rotation speeds: 2600, 6000 or 10000 rpm
• Rise and fall: 35 mmFramework: die-casted aluminium
  Power: 2,2 kW
  Electronic vectorial inverter
  Supply tension: 230V/50-60Hz single-phase
  Ground fault interrupteDimensions, Weight
• Operating head: 350 x 550 x 350 mm, 33 kg
• Power unit: 370 x 470 x 230 mm, 15 kg
