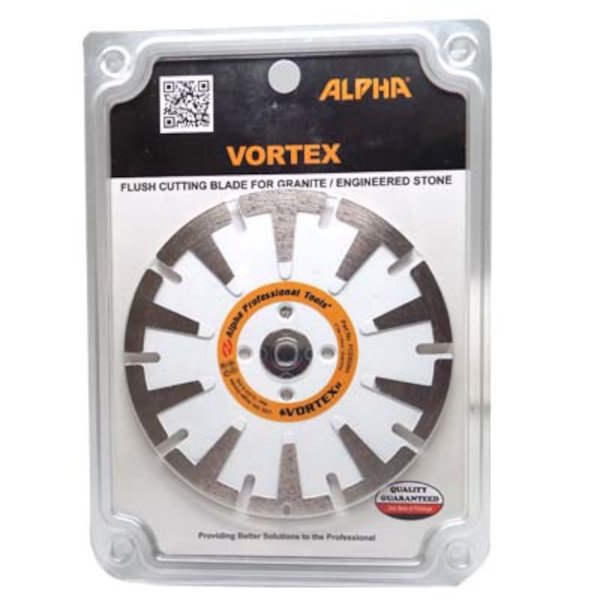

Alpha Vortex for Granite
Alpha Vortex for Granite is engineered to deliver superior flush cutting performance with unmatched strength and durability. Designed with dual side protection segments on both sides of the blade, it provides enhanced stability while ensuring longer life and reliability. This innovative design offers stone fabricators exceptional versatility and efficiency, making flush cutting operations smoother and faster than ever.
Capable of both wet and dry use, the Alpha Vortex is an aggressive blade that guarantees quick, precise cuts and an excellent cost-per-cut ratio. Available in 4” and 5” sizes, it is ideally suited for granite and other hard materials, giving professionals the cutting edge they need for top-quality results.
Vortex for Granite Main Features
- Requires Quad Drive to fit High-Speed Angle Grinder
- Perfect for Granite and Engineered Stone
- Specially Designed for Flush Cutting
- Stone Fabricator’s Choice
- Chip-Free Cutting on Most Demanding Applications
- Side Protection Segments Help Cutting Straight
Alpha Vortex for Granite videos

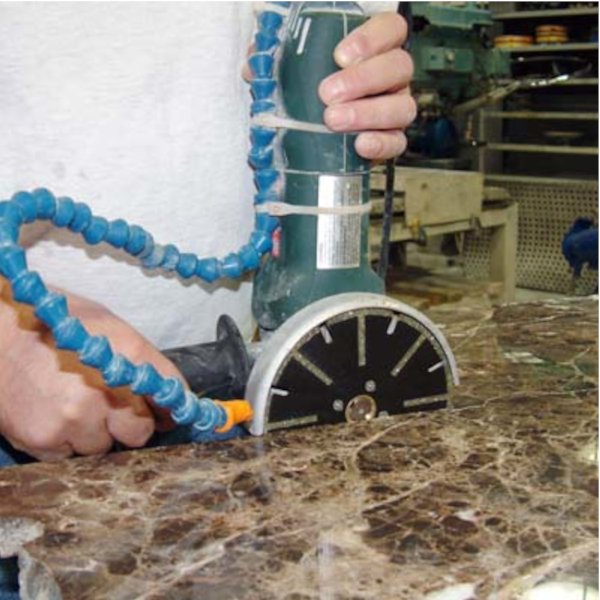

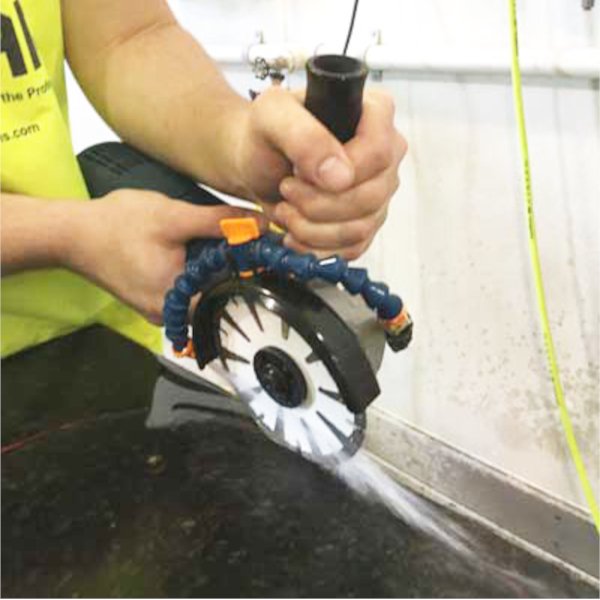

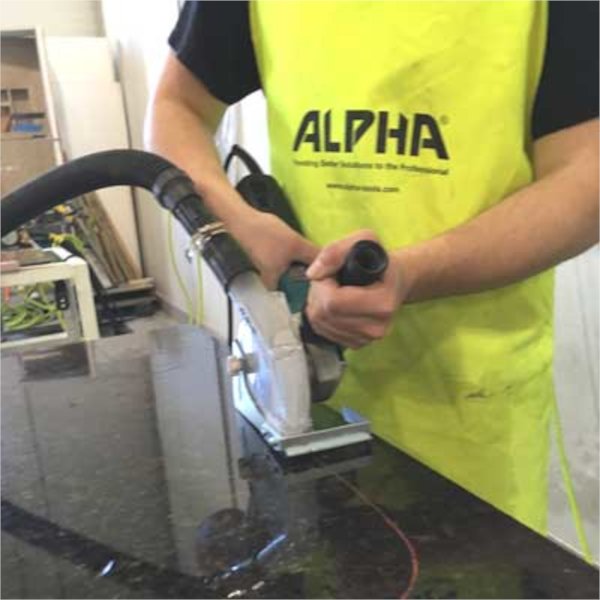

Angle Grinder w/Vortex for Granite
Alpha Vortex for Granite Specifications
| Part No. | Size | Thickness | Maximum RPM | Type | Arbor(s) | Recommended For | Threads |
|---|---|---|---|---|---|---|---|
| FCD40AH | 4″ | 2.5mm | 14,500 | 20mm Quad Drive | |||
| FCD50AH | 5″ | 2.5mm | 12,200 | 20mm Quad Drive | |||
| AAH-20 | Aluminum Adapter | 20mm | Dry | 5/8″-11 | |||
| BAH-5/8 | Brass Adapter | 20mm | Dry | 5/8″-11 |
Vortex for Granite Related Documents
| Document Type | Link |
|---|---|
| Safety Data Sheet | Diamond Tools Cutting Blade |
| Reference | Vortex-Granite_HelpfulHints |
| Reference | Vortex-Granite_HowToUse |
| Flyer | Blade Selection Guide |
| Flyer | Vortex for Granite flyer |
| Flyer | Cutting System Overview |
Additional Information
| PartNo | UPC Code | Pkg. Weight (lbs) | Package Dimensions | Commodity Code | Country Of Origin |
|---|---|---|---|---|---|
| FCD40AH | 749173470332 | 0.40 | 8.5in x 6.75in x 0.5in | 8202.91.0000 | Japan |
| FCD50AH | 749173470349 | 0.50 | 8.5in x 6.75in x 0.5in | 8202.91.0000 | Japan |
| AAH-20 | 749173450761 | 0.10 | 5in x 3in x 1in | 8466.91.0000 | China |
| BAH-5/8 | 749173650024 | 0.30 | 5in x 3in x 1in | 8466.91.0000 | Japan |
Frequently Asked Questions
What materials can be cut using the Alpha® Vortex for Granite blade?
The Alpha® Vortex blade is designed to be used on granite and engineered stone.
The Alpha® Vortex for Granite is a dry cutting blade, can I use this blade for wet application?
Yes. Wet cutting will generally increase blade life and will keep harmful dust (Silica) out of the air.
What sizes of the Alpha® Vortex for Granite blades are available?
These blades are available in 4” and 5” diameters.
What is the cutting edge rim height of the Alpha® Vortex 4” and 5” blades?
4” Vortex (7mm) and 5” Vortex (6mm)
What is the spindle size required for use of the BAH-5/8 adapter?
Your power tool needs to have a 5/8”-11 threaded spindle for use of this adapter.
Does Alpha® offer other spindle sizes for the BAH and FAH adapters?
Yes. Other spindle sizes are available. Please contact your dealer or Alpha® directly to learn more about these other thread sizes.
Can I use the Alpha® Vortex for Granite blade on my polishing tool?
No. The RPM speeds of polishers are too slow. Diamond blades are recommended for use on high-speed angle grinders rated for the blade diameter being used.
What applications are the Alpha® Vortex for Granite blades designed for?
The Alpha® Vortex blades are designed for flush cutting and making 90 degree inside corners. Other cutting applications such as top mount sink bowl cut-outs when you need to cut the material between the drilled core holes are ideal for this blade.
Can I use the Alpha® Vortex blade without the BAH-5/8 adapter?
No. The Alpha® Vortex blades must always be used together with the BAH adapter. Alpha® does not recommend mounting the Vortex blade directly onto the flange of a power tool without the BAH adapter due to the countersunk holes drilled within the core of the blade.
