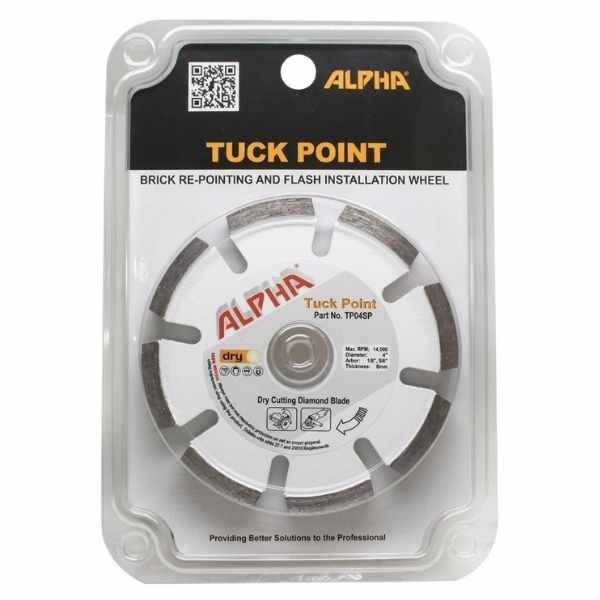

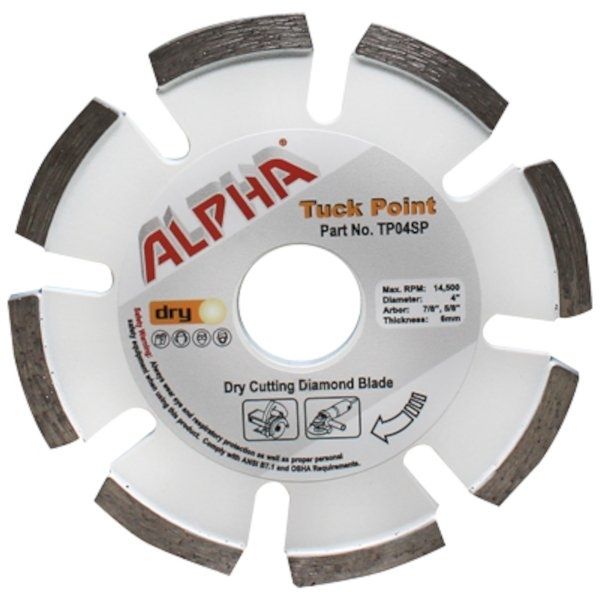

Alpha Tuck Point

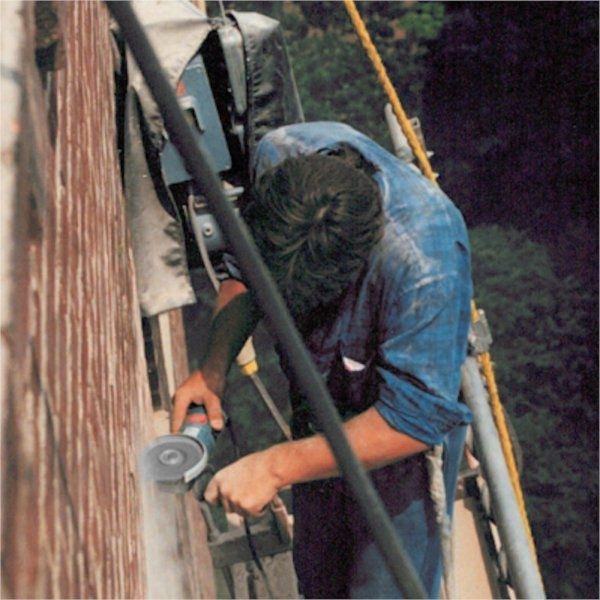

Alpha Tuck Point is a high-performance wheel engineered for brick re-pointing and flash installation. Designed for dry cutting, it is compatible with 4”, 4-1/2”, and 7” grinders, making it a versatile choice for masons and brick re-pointers. With its aggressive cutting ability and long-lasting durability, the Alpha Tuck Point Wheel ensures efficient work and consistent results. Featuring a segmented design with a very hard bond, it resists the abrasive mortar commonly used in bricklaying. Alpha Tuck Point simplifies demanding tasks, providing precision and reliability on every project.
Tuck Point Main Features
- Can Be Used Wet or Dry

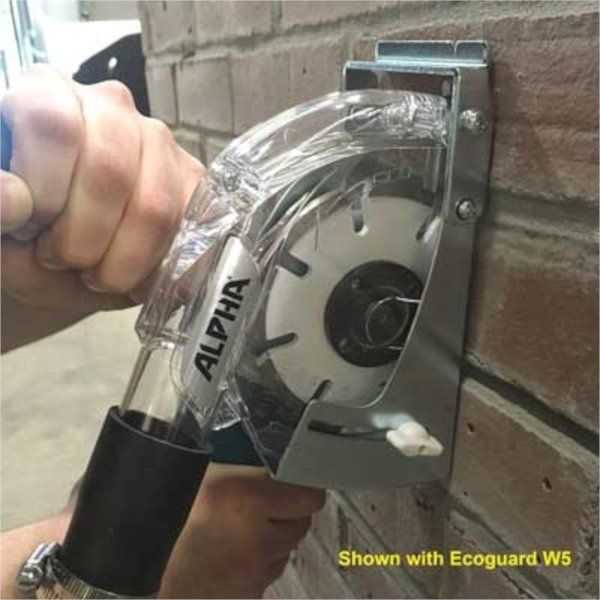

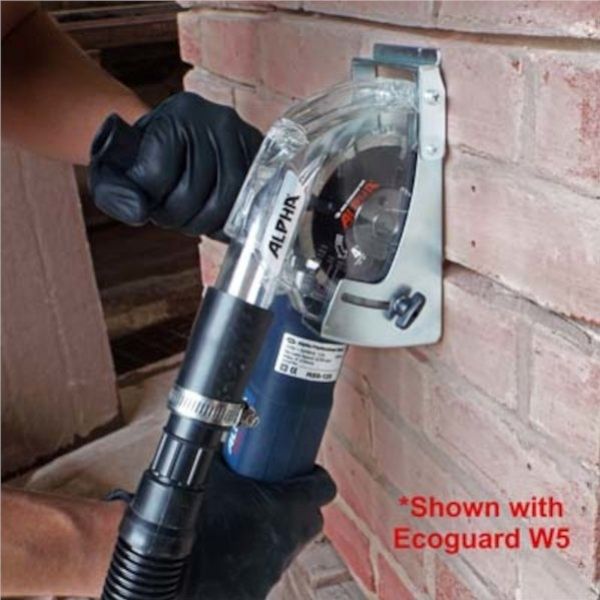

- Virtually Dust-Free Application with Ecoguard Type W5 and Vacuum
- Formulated for Aggressive Cutting and Long Life
- Best Tuck Pointing Blade on the Market
- Reliable Proven Performer
Alpha Tuck Point videos
Tuck Point
Alpha Tuck Point Specifications
| Part No. | Size | Thickness | Maximum RPM | Arbor(s) |
|---|---|---|---|---|
| TP0478 | 4″ | 6.0mm | 14,500 | 7/8″, 20mm, 5/8″ |
Tuck Point Related Documents
| Document Type | Link |
|---|---|
| Safety Data Sheet | Diamond Tools Cutting Blade |
| Reference | Tuckpoint_HelpfulHints |
| Reference | Tuckpoint_HowToUse |
| Flyer | Blade Selection Guide |
| Flyer | Hardscape Blade Chart |
| Flyer | Cutting System Overview |
Additional Information
| PartNo | UPC Code | Pkg. Weight (lbs) | Package Dimensions | Commodity Code | Country Of Origin |
|---|---|---|---|---|---|
| TP0478 | 749173462122 | 0.70 | 8in x 5.5in x 0.5in | 8202.91.0000 | Japan |
Frequently Asked Questions
What is the life expectancy of the Alpha® Marble Profile Wheel?
Due to the many different types of marble, it is impossible to accurately gauge the life of this wheel. However, we have been told by many satisfied customers that the life is surprisingly long.
What size material will this wheel profile?
This wheel is designed to cut and profile 3/8” marble tile. Do not try to profile anything over 3/8" thick.
What is the maximum RPM at which the Alpha® Marble Profile Wheel can be used?
See specifications chart.
Can I use the Alpha® Marble Profile Wheel on hard materials such as granite or porcelain?
No. The Alpha® Profile Wheel for Marble is constructed with electroplated diamonds on the outer edge of the wheel. If hard material such as granite or porcelain is used, the outer edge will wear faster and the life of the wheel will be very short. To create a 3/8” profile on granite or porcelain we recommend using the Alpha® Profiler Series.
Can the Alpha® Marble Profile Wheel be used dry?
No. The Alpha® Marble Profile Wheel for Marble must be used WET. Using this wheel dry will cause the electroplated diamonds to overheat and shorten the life of this wheel.
Can this wheel be used on a hand-held grinder?
No. This wheel is designed to be used on stationary machines such as the Alpha® AWS-110 Wet Stone Cutter.
Will the Alpha® Marble Profile Wheel fit onto the Alpha® AWS-125 Wet Stone Cutter?
No. The Alpha® Marble Profile Wheel has a 20mm arbor and the AWS-125 Wet Stone Cutter has a 7/8” arbor flange size. Alpha® recommends using the Alpha® Marble Profile Wheel together with the AWS-110 Wet Stone Cutter which has a 20mm arbor flange size.
