Alpha Contour for Porcelain
Alpha Contour for Porcelain is specifically engineered for curve cutting applications on Porcelain, Crystallized Glass, and Sintered Slabs, making it the ideal choice for demanding tasks such as sink cut-outs on 3cm materials. Unlike traditional diamond stone blades, which often cause chipping or fractures due to the hardness and density of these materials, the Alpha Contour Blade ensures clean and precise results without damage.

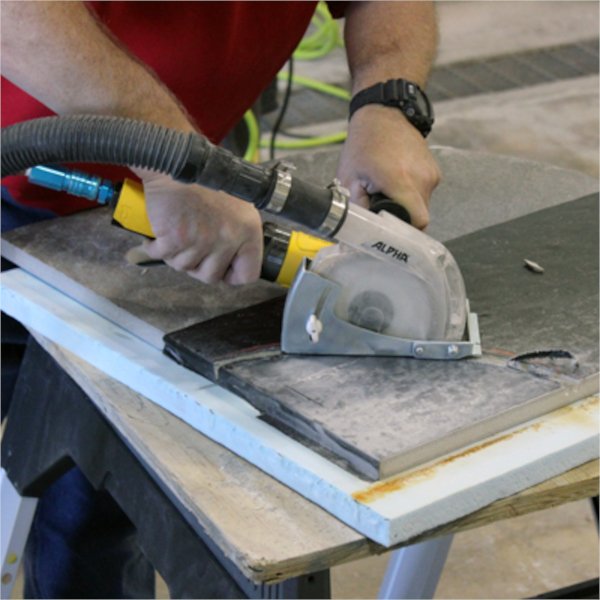

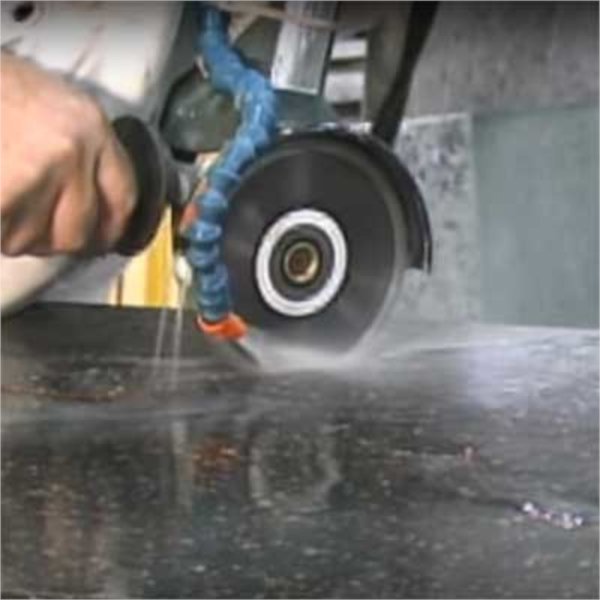

For optimal performance, pair the Alpha Contour for Porcelain with an Alpha Wet or Dry Stone Cutter, providing smooth and successful cut-outs while protecting the rim. Although designed for both wet and dry use, it is strongly recommended to operate the blade wet when working with these materials to achieve the highest quality finish and durability.
Contour for Porcelain Main Features
- Designed Specifically for Cutting Porcelain and Sintered Slabs
- Fits On 5″ Wet & Dry Stone Cutters
- Cuts Curved Areas Cleanly, Accurately and Safely While Allowing A Wider Kerf

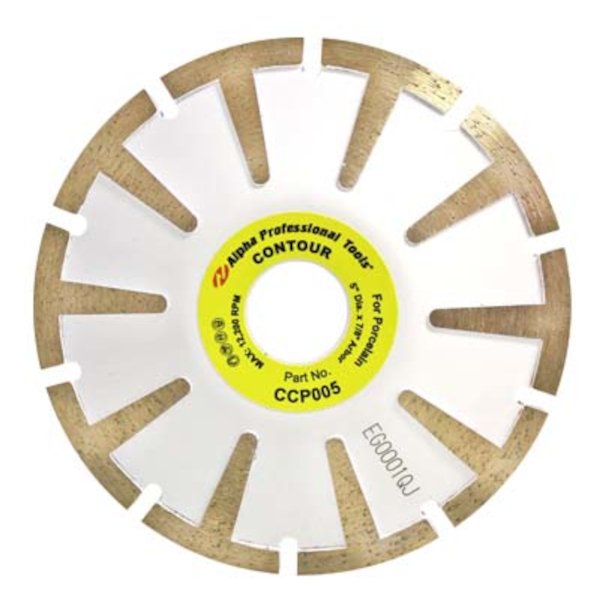

- Direct Sintered Diamond Segments On Steel Core Prevents Undercutting
- Can Be Used Either Wet or Dry
Alpha Contour for Porcelain videos
AWS-125 w/Contour for Porcelain/Crystallized Glass
How to work on Porcelain Paver Tiles
Alpha Contour for Porcelain Specifications
| Part No. | Size | Thickness | Maximum RPM | Arbor(s) | Depth Of Cut |
|---|---|---|---|---|---|
| CCP004 | 4″ | 4.0mm | 14,500 | 7/8″ | 3/4″ |
| CCP045 | 4-1/2″ | 4.0mm | 13,200 | 7/8″ | 3/4″ |
| CCP005 | 5″ | 4.0mm | 12,200 | 7/8″ | 1-1/4″ |
Contour for Porcelain Related Documents
| Document Type | Link |
|---|---|
| Safety Data Sheet | Diamond Tools Cutting Blade |
| Reference | Contour-Porcelain_HelpfulHints |
| Flyer | Cutting System Overview |
| Flyer | Blade Selection Guide |
| Flyer | Contour for Porcelain flyer |
| Flyer | Porcelain Paver Tiles flyer |
| Flyer | Hardscape Blade Chart |
Additional Information
| PartNo | UPC Code | Pkg. Weight (lbs) | Package Dimensions | Commodity Code | Country Of Origin |
|---|---|---|---|---|---|
| CCP004 | 749173461996 | 0.60 | 8in x 5.5in x 0.5in | 8202.91.0000 | Japan |
| CCP045 | 749173461965 | 0.60 | 8in x 5.5in x 0.5in | 8202.91.0000 | Japan |
| CCP005 | 749173460067 | 0.70 | 8.75in x 6.25in x 0.5in | 8202.91.0000 | Japan |
Frequently Asked Questions
Can I use the Alpha® Contour for Porcelain for cutting granite or marble?
No. The Contour for Porcelain blade is only intended for use on the material for which it was designed. If you try to use this blade to cut marble or granite, you may experience a slow cutting ability since this blade is designed for cutting hard, dense porcelain slab material. This bond is not suited for cutting abrasive materials.
The Alpha® Contour for Porcelain is available in what sizes?
This blade is available in 4", 4-1/2" and 5” diameters.
What is the arbor size if this blade?
The arbor size is 7/8”.
What is the purpose of the side protection segments on both sides of the blade?
These segments assist the blades cutting ability to cut curved areas cleanly as well as grind away material to make a wider kerf, allowing the blade to make tighter radiuses. They also prevent undercutting.
What is the maximum RPM this blade should be used at?
The maximum RPM for this blade is 12,200. This blade should not be used at RPM lower than 9,000.
Can I plunge-cut using this blade attached onto the Alpha® AWS-125 Wet Stone Cutter?
Yes. When the Contour for Porcelain blade is mounted on the Alpha® AWS-125 Wet Stone Cutter, you can plunge cut with excellent control, since you can place the base of the stone cutter on the material to give you better stability.
