Cyclone Incremental Bits Accessories
Cyclone Incremental Bits Accessories are precision-engineered mandrels and sleeves designed for use with Cyclone Incremental Bits on sink cut-out machines. These accessories provide secure mounting and reliable performance for tapered bits with M12 female-to-½ gas male threads, ensuring efficient power transfer and stable operation in wet-cutting applications. Available in multiple configurations, they allow users to select the ideal mandrel for standard or reverse-thread tooling requirements.
Designed to complement the premium Cyclone Incremental Bits system, these accessories are available in 70 mm, 35 mm, and 25 mm lengths, including standard and reverse-thread Super Cyclone mandrels. They support the latest Super Cyclone screw-on tips, which are taller and engineered to deliver longer service life, more sink cut-outs, and fewer glazing issues. Built for professional stone fabrication, these accessories help maximize the performance and versatility of Cyclone tooling.
You might also want to check our other CNC Tools where you will find a lot of premium tools for your job with CNC equipment and Auto Edge Machines.
Incremental Bits Accessories Features
Among these Bits Accessories features, we find:
- Designed for Cyclone Incremental Bits used on sink cut-out machines
- Compatible with tapered bits featuring M12 female to ½ gas male threads
- Supports the Super Cyclone screw-on tip system
- Provides secure and reliable tool mounting
- Available in standard and reverse-thread versions
- Built for wet-use stone fabrication applications
- Helps maximize tool performance and service life
Specifications
| SKU | SIZE | FITTING | BOND | MAX RPM | SUGGESTED FEED RATE |
|---|---|---|---|---|---|

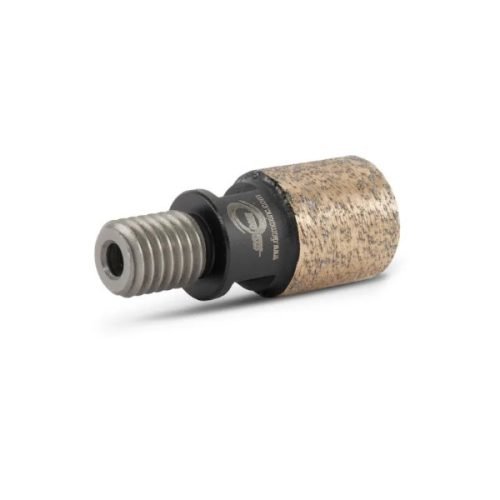

| FBSTIP | 20mm Cyclone | M12 | Medium | 4,000 | 30″ – 40″ / PM |
| FBSTIPS | 22mm Super Cyclone | M12 | Soft | 4,000 | 30″ – 40″ / PM |
| FBSTIP-T | Tapered 20mm Super Cyclone | M12 | Medium | 4,000 | 30″ – 40″ / PM |
| FBSTIPRT | Reverse thread, 20mm Cyclone | M12 | Medium | 5,500 | 30″ – 40″ / PM |
Cyclone Incremental Bits Accessories
| SKU | DESCRIPTION | SHAFT LENGTH | FITTING |
|---|---|---|---|
| FBSTIP-M* | Cyclone mandrel with sleeve | 70mm | M12 female – ½ gas male |
| FBSM-RT* | Reverse thread Super Cyclone mandrel | 70mm | M12 female – ½ gas male |
| FBSM35* | Super Cyclone Mandrel Thread (short) | 35mm | M12 female – ½ gas male |
| FBSM-RT25* | Reverse thread Super Cyclone mandrel (short) | 25mm | M12 female – ½ gas male |
*You will find these accessories as part of the Ultra Incremental Bit.
