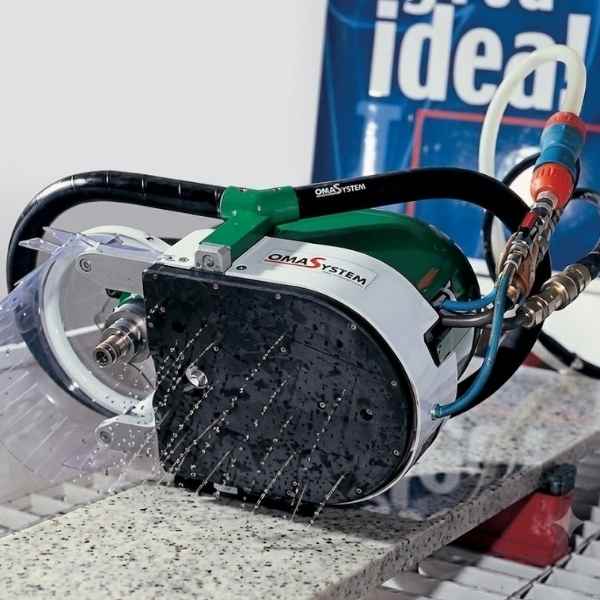

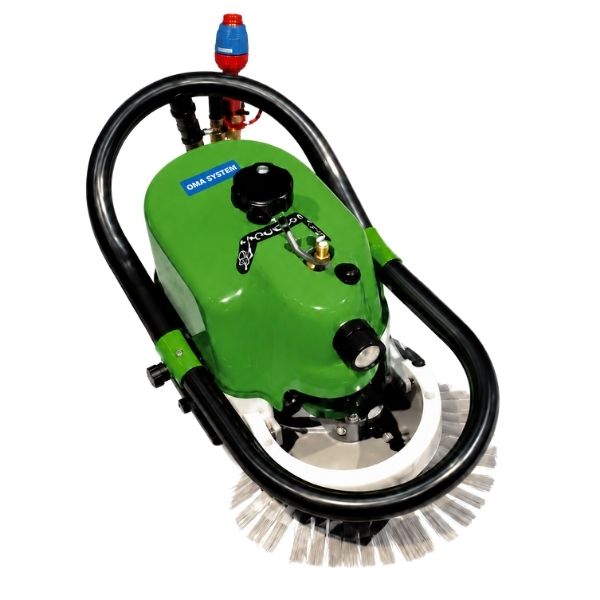

Oma CP99 Routing Machine

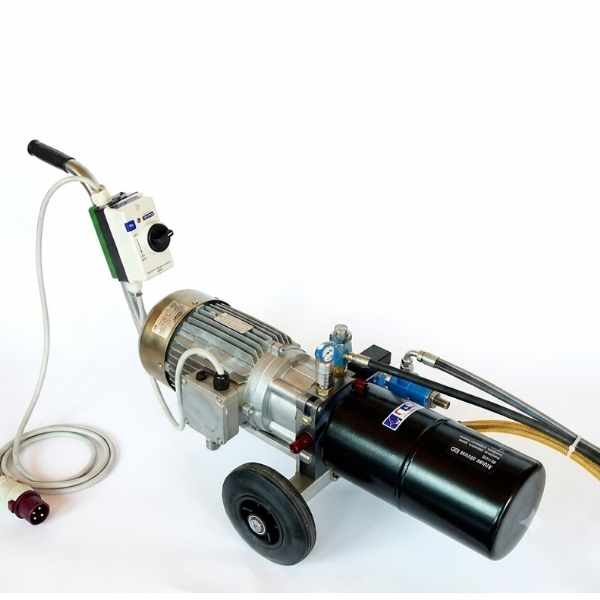

The Oma CP99 Routing Machine is an Italian-made stone router designed for years of stone fabrication production. Powered by the Oma Hydraulic Pump which provides power by means of hydraulic fluid to the router.
You might also want to take a look at our other Stone Routers by Weha.
Product Features
The main features of this product are:
- 60% more horsepower than electric units
- Works on Granite, Marble, Engineered Stone, Quartz, and Quartzite Counter Tops.
- With aircraft Aluminum and stainless steel construction with fiberglass covers(not plastic), the CP99 is a router that will provide many many years of fabrication work.
- Weighing 35 lbs., this compact and lightweight router makes it easier to use, less user fatigue, and easy to move from one work table to another.
The Oma CP99 Hydraulic Granite and Stone Router have many advantages over traditional electric stone routers:
- No electricity at the head of the machine. Zero chance of electric shock to the operator.
- Eliminates all-electric motor vibration that electric motors will create.
- The hydraulic pump provides so much power to the spindle that it becomes practically impossible to slow the machine down, even on 6cm profiling.
- The same hydraulic pump runs the Oma Antarex bow cutting machines, as well as the Galaxy hand saw.
- Variable speed 0 – 7,500 RPM. With 100% complete control over RPMs, this takes full advantage of profiling and polishing. At 7500 RPMs, the Oma router bits will profile as fast as any other 10,000 rpm router on the market. By turning the RPMs down, it allows optimum speed for the polishing wheels to create a ready-to-install finish.
- The hydraulic pump allows the CP99 itself to be much lighter and more compact. Rather than an external loc line that can be accidentally hit and the bit run dry, Oma provides center water feed through the spindle and bits. This keeps everything in the machine: bearings, spindles, hydraulic oil, etc, running cool for extra longevity.
Additionally, it eliminates the possibility of the bit running dry. It also ensures the bit will never clog.
The Oma company started, and is still active, in the aeronautics industry. Precision manufacturing is not expected. It’s demanded and guaranteed! The Oma System of profiling and polishing wheels is no exception to this rule. What you are buying with the CP99 router, is a state-of-the-art profiling and polishing system that allows a router to truly save you time and effort in the fabrication process.
The Oma CP99 comes with an aqua planning base designed differently than its competitors. By having many water holes across the entire base, the CP99 Aqua base creates an incredibly stable and steady platform. Even when you get to the corners and edges of the stone and part of the base accidentally comes off the stone.
Also, because there is a constant flow of water being pushed from the inside out, it helps to prevent pieces of stone from sliding under the router and create scratches.
Recommended Profile and Polishing Speeds
Profile | RPM |
---|---|
POS. 0 (Sint.) | 4,500 – 7,500 |
POS. 1 (Sint.) | 4,500 – 7,500 |
POS. 2 (Prodiam) | 4,500 – 9,000 |
POS. 3 (Extradiam) | 4,500 – 6,000 |
POS. 4/5/6 (Truelife) | 2,500 – 3,500 |
Demonstration video
Technical Specifications
Property | Value |
---|---|
Dimensions | 20″ x 12″ x 16″ |
Weight | 35 lbs |
