Alpha Eclipse II Blades
Alpha Eclipse II Blades are the perfect choice for general-purpose cutting on a wide range of common building materials, including masonry, concrete, and tile. Designed for versatility, they fit most angle grinders and wet stone cutters used in the stone and construction industries. Similar to the high-performing Alpha® Plus, the Alpha Eclipse II delivers clean, precise cuts on tile, brick, block, concrete, slate, and natural stone. Trusted by tile installers, masons, and general contractors, this blade offers a cost-effective solution without sacrificing performance or durability. With long life, chip-free results, and exceptional value, Alpha Eclipse II sets the standard for price-to-performance in modern construction cutting needs.
Alpha Eclipse II Blades Main Features
- Recommended for Hard Concrete
- 8mm tall Diamond Layer for a Long Life
- Perfect for your Stone Tile Application
- High-End General Purpose Turbo Blade for Stone Fabricators
- Consistent Performance without Chipping
Eclipse II Blades Videos

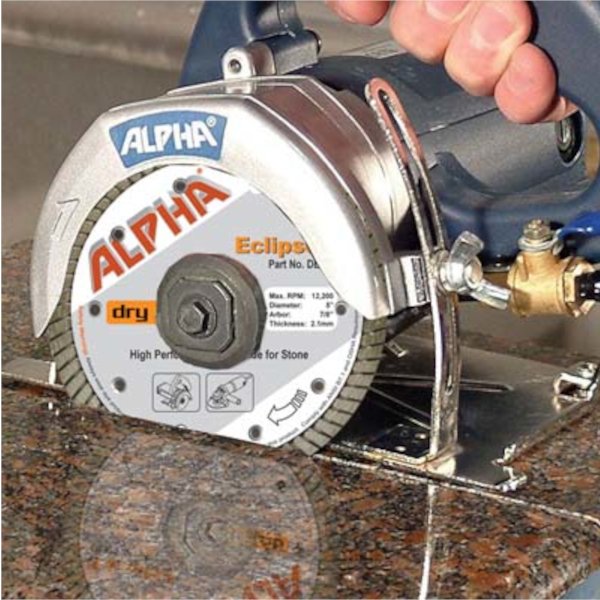

AWS-125 w/Eclipse II on Granite
How to Trim Countertops
Best Wet and Dry Stone Cutter
Alpha Eclipse II Blades Specifications
| Part No. | Size | Thickness | Maximum RPM | Arbor(s) | For Use On |
|---|---|---|---|---|---|
| DEE478 | 4″ | 2.1mm | 14,500 | 7/8″, 20mm, 5/8″ | Stone Cutter/Angle Grinder |
| DEE045 | 4-1/2″ | 2.1mm | 13,200 | 7/8″, 20mm | Stone Cutter/Angle Grinder |
| DEE005 | 5″ | 2.1mm | 12,200 | 7/8″ | Stone Cutter/Angle Grinder |
| DEE006 | 6″ | 2.1mm | 10,100 | 7/8″, 5/8″, ◊ | Stone Cutter/Angle Grinder |
| DEE007 | 7″ | 2.3mm | 8,400 | 5/8″, ◊ | Worm Drive |
| DEE008 | 8″ | 2.3mm | 7,400 | 5/8″, ◊ | Worm Drive |
Eclipse II Blades Related Documents
| Document Type | Link |
|---|---|
| Safety Data Sheet | Diamond Tools Cutting Blade |
| Reference | Eclipse-II_HelpfulHints |
| Reference | Eclipse II How to Use |
| Flyer | Blade Selection Guide |
| Flyer | Eclipse II flyer |
| Flyer | Hardscape Blade Chart |
| Flyer | Cutting System Overview |
Additional Information
| PartNo | UPC Code | Pkg. Weight (lbs) | Package Dimensions | Commodity Code | Country Of Origin |
|---|---|---|---|---|---|
| DEE478 | 749173462092 | 0.30 | 5.25in x 4.5in x 0.25in | 8202.91.0000 | Japan |
| DEE045 | 749173460531 | 0.40 | 5.5in x 5in x 0.25in | 8202.91.0000 | Japan |
| DEE005 | 749173460494 | 0.30 | 6in x 5.5in x 0.25in | 8202.91.0000 | Japan |
| DEE006 | 749173460500 | 0.40 | 7in x 6.5in x 0.25in | 8202.91.0000 | Japan |
| DEE007 | 749173460517 | 0.80 | 7.5in x 7.5in x 0.25in | 8202.91.0000 | Japan |
| DEE008 | 749173460524 | 1.00 | 8.5in x 8.5in x 0.25in | 8202.91.0000 | Japan |
Frequently Asked Questions
What is the cutting edge rim height of the Eclipse II blades?
Alpha® Eclipse II blades cutting edge rim height is 8mm.
On what granite classification do you recommend using the Alpha® Eclipse II blades?
The Eclipse II blades are best suited for Medium to Soft granite classifications; however; the Eclipse II blades will also cut hard granite classifications.
Can a dry blade be used wet?
Yes. Cutting wet will generally increase blade life and will keep harmful dust (Silica) out of the air.
Why should I use the Alpha® Stone Cutter rather than an angle grinder for 5” diameter or smaller blades?
The Alpha® AWS-110 or AWS-125 Stone cutters gives you better cutting stability since the power tools’ base glides across the surface of material being cut, and provide for increased accuracy, rather than by freehand.
Can I use an 18V Cordless Circular Saw together with the Alpha® Eclipse blades?
No. The RPMs of these 6-1/4” circular saws is 3,200, which is too slow for diamond blades. Using a slow rpm tool will cause the blade’s cutting edge to become out-of-round or create premature wear on the blade.
What materials can be cut using the Eclipse II blades?
The Alpha® Eclipse II Series can be used to cut tile, brick, block, concrete, slate and natural stone, and gives superior results on granite.
