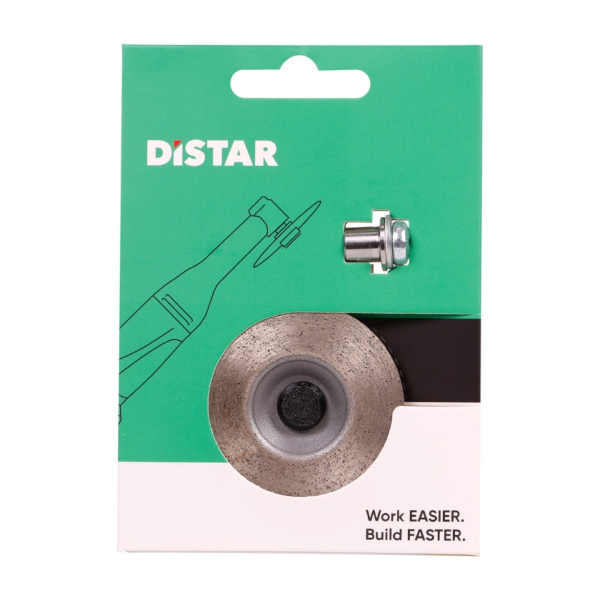

DiStar Soft Edge 2″
DiStar Soft Edge 2″ is a specialized 45 mm diamond grinding cup engineered for smooth, controlled edge finishing on porcelain tile, ceramic tile, granite, and natural stone. Designed for use with compact angle grinders and Proxxon long-neck rotary tools, this grinding cup features a soft diamond bond that enables precise material removal while minimizing chipping, making it ideal for delicate edge work, cut refinement, and surface preparation prior to polishing. Unlike aggressive grinding wheels, the Soft Edge DGM-S delivers exceptional control, improved finish quality, reduced vibration, and consistent edge refinement, especially when working near glazed or fragile surfaces.
Designed for Smooth Edge Grinding on Porcelain & Ceramic Tile
The Soft Edge 2″ is specifically developed for porcelain tile edge finishing, ceramic tile smoothing, refining cuts after diamond blade use, and preparing edges for polishing. Its specialized soft-bond diamond matrix delivers smooth grinding performance while reducing the risk of edge chipping.
Compatible Materials
Suitable for porcelain tile, porcelain gres, ceramic tile, granite, natural stone, and other similar materials requiring precision edge finishing.
Built for Proxxon & Compatible 45 mm Tools
Designed for use with the Proxxon LHW/A cordless long-neck angle grinder, Proxxon LWB/A cordless long-neck rotary tool, and other compatible 45 mm angle grinders. Its compact 2″ diameter allows access to tight spaces and detailed work areas where larger grinding cups cannot reach.
Dry Grinding Performance
Engineered for dry use, eliminating the need for water setup and making it ideal for on-site tile installations, quick edge corrections, and finishing tasks without interrupting workflow.
Grinding Cup vs. Diamond Blade
A diamond blade is designed for cutting tile, while a grinding cup is used to smooth, refine, and finish edges after cutting. The DiStar Soft Edge 2″ is the perfect follow-up tool after using cutting blades such as the Mastercut or Butterfly, helping achieve a clean, professional-quality finished edge.
Common Applications
- Edge finishing on porcelain tile
- Smoothing ceramic tile edges
- Refining cuts after blade use
- Preparing surfaces for polishing
- Detail grinding near glazed surfaces
Ideal For
- Professional tile installers
- Stone fabricators
- Countertop installers
- Remodeling contractors
- Advanced DIY users
Soft Edge 2″ Specifications
| Property | Value |
|---|---|
| Brand | DISTAR |
| Diameter | 2″ (45mm) |
| Thread | 5/8″-11 |
| Bond | Soft (medium/fine grit) |
| Cooling | Dry grinding (no water required) |
| Compatible Tools | Proxxon LHW/A, Proxxon LWB/A, compatible 45mm angle grinders |
| Application | Porcelain tile, ceramic tile, stone, granite |
| Type | Diamond grinding cup |
DiStar Edge Dry 5″ Video
Grinding cup Distar 45 SoftEDGE
FAQ
What is a diamond grinding cup used for?
It is used for grinding, smoothing, and finishing edges on tile and stone surfaces — typically after cutting with a diamond blade.
Is this good for porcelain tile?
Yes, it is specifically designed for porcelain tile edge finishing with minimal chipping, thanks to its soft bond diamond structure.
What tools is this compatible with?
It is designed for the Proxxon LHW/A cordless long-neck angle grinder and the Proxxon LWB/A cordless long-neck rotary tool, as well as compatible 45mm angle grinders with a 5/8"-11 thread.
Does it require water?
No, this grinding cup is designed for dry grinding applications.
Will it damage tile edges?
No, the soft bond design helps reduce chipping and improve edge quality compared to standard hard-bond grinding cups.
