Alpha Ultracut APR Series Blades
Alpha Ultracut APR Series Blades combine the exceptional performance of the Alpha® Ultracut GPM Series with a specialized design for precision flush cutting applications. Engineered to work with the exclusive Quad Drive Adapter, this blade eliminates the need for a lock nut. The threaded arbor of the Quad Drive Adapter allows for secure mounting on angle grinders, enabling efficient “flush cutting” without compromising safety.

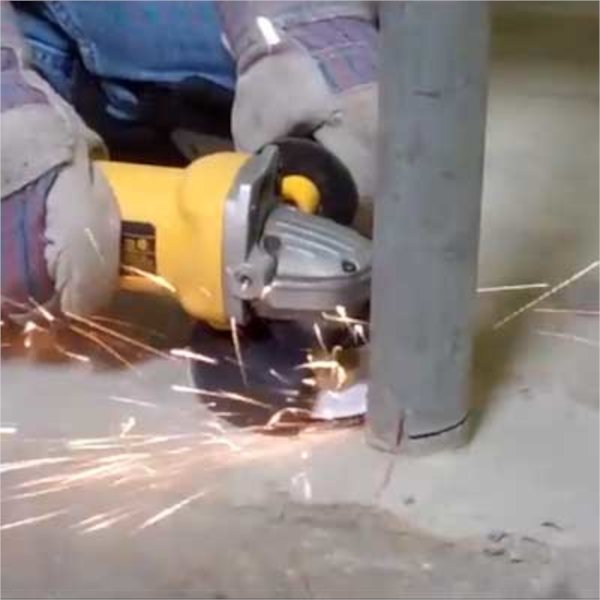

Perfect for quickly and cleanly removing anchor bolts, concrete rebar, and pipe from floors and walls, the Alpha Ultracut APR Series delivers the accuracy and control demanded by both manufacturing facilities and on-site professionals.
Ultracut APR Series Blades Main Features
- Unique Design for Flush Cutting Applications
- High-Performance Blade

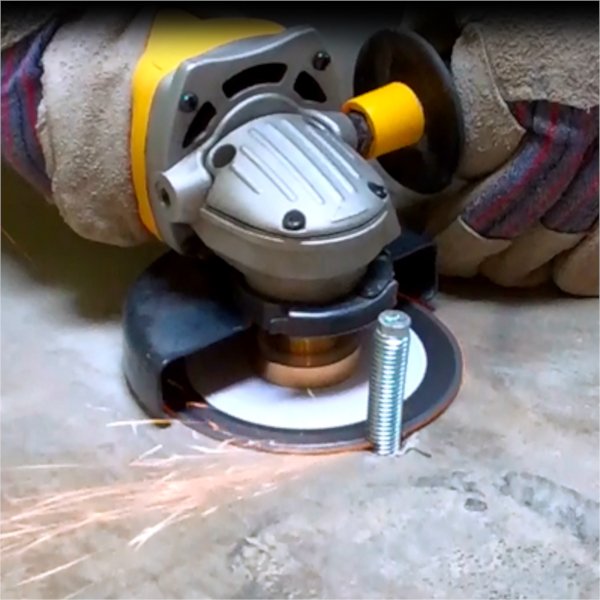

- Removes Anchor Bolts, Concrete Re-Bar and Pipe From Floors and Walls
- Accurate and Precision Flush Cutting At The Manufacturing Facility or The Jobsite

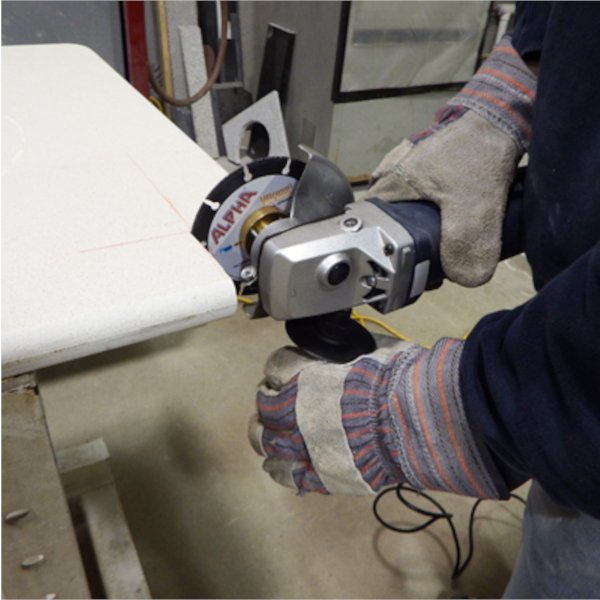

- Cuts Angle Iron, Pipe, Electrical Conduit, Re-Bar, Metal Stud, Structural Metal, Sheet Metal, Grid, and Stainless Steel, Wood, Plastics,
- Composite Materials, Masonry and Concrete
- Accepts Alpha® Exclusive Quad Drive Adapter for Mounting On Angle Grinders for “Flush Cutting”

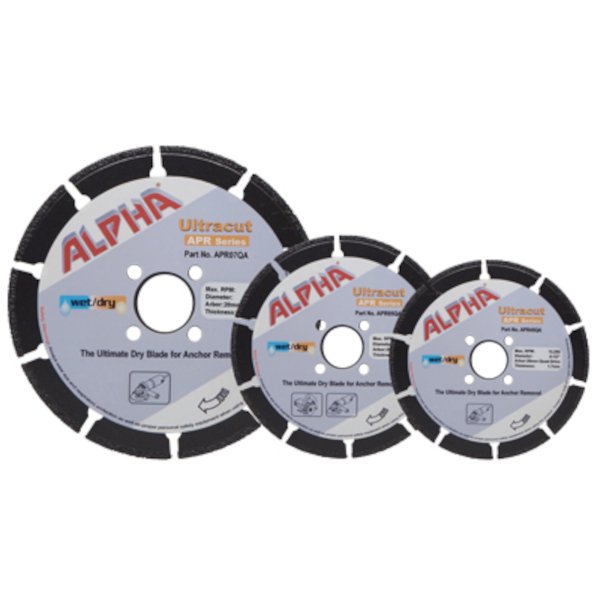

- Available in 4-1/2”, 5” and 7” Sizes
Alpha Ultracut APR Series Blades videos
Ultracut APR Series
Alpha Ultracut APR Series Blades Specifications
| Part No. | Size | Thickness | Maximum RPM | Type | Arbor(s) | Recommended For | Threads |
|---|---|---|---|---|---|---|---|
| APR45QA | 4-1/2″ | 1.7mm | 13,200 | 20mm Quad Drive | |||
| APR05QA | 5″ | 1.7mm | 12,200 | 20mm Quad Drive | |||
| APR07QA | 7″ | 1.9mm | 8,400 | 20mm Quad Drive | |||
| BAH-5/8 | Brass Adapter | 20mm | Dry | 5/8″-11 | |||
| AAH-20 | Aluminum Adapter | 20mm | Dry | 5/8″-11 |
Ultracut APR Series Blades Related Documents
| Document Type | Link |
|---|---|
| Flyer | Cutting System Overview |
| Flyer | Blade Selection Guide |
| Flyer | Ultracut APR Series flyer |
| Flyer | Ultracuts/Spike/Vflex flyer |
| Flyer | Hardscape Blade Chart |
Additional Information
| PartNo | UPC Code | Pkg. Weight (lbs) | Package Dimensions | Commodity Code | Country Of Origin |
|---|---|---|---|---|---|
| APR45QA | 749173610035 | 0.25 | 4.75in x 4.75in x 0.25in | 8202.91.6000 | Korea |
| APR05QA | 749173610042 | 0.30 | 5.25in x 5.25in x 0.25in | 8202.91.6000 | Korea |
| APR07QA | 749173610059 | 0.75 | 7.25in x 7.25in x 0.25in | 8202.91.6000 | Korea |
| BAH-5/8 | 749173650024 | 0.30 | 5in x 3in x 1in | 8466.91.0000 | Japan |
| AAH-20 | 749173450761 | 0.10 | 5in x 3in x 1in | 8466.91.0000 | China |
Frequently Asked Questions
How long does it last compared with a standard abrasive cut off wheel?
It is subjective depending on the application. However the general indication of the Ultracut APR Series is that it may last up to 50 to 60 times more than that of a standard abrasive cut off wheel. Conservatively it should last 30 to 40 times more than a standard abrasive cut-off wheel. With this said, you can save downtime from the disc changes, thus adding user-convenience, without wrenches and abrasive cut-off wheel inventory.
Can I use it with water to eliminate dust?
Yes you can use Ultracut APR Series with water to reduce dust and also improve the performance and life of the tool.
Can I cut very hard materials such as a granite slab or a porcelain tile?
Normally sintered metal bond diamond blades have more of an advantage cutting granite and porcelain over vacuum brazed diamond blades, so we don’t recommend using the Ultracut APR Series blade for granite or porcelain. If you have to cut them, we recommend cutting them with water to cool the cutting edge.
Can I re-use a Quad Adapter?

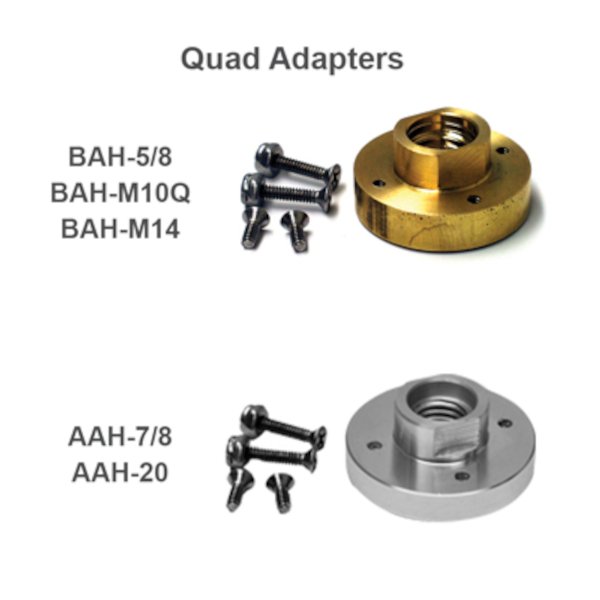

Yes you can reuse a Quad Adapter. The Alpha® Quad Adapter is made with Brass and comes with 4 screws and 2 nylon lock nuts so that it is safer to use and lasts longer compared to one made out of aluminum.
What kind of tool can I use the Ultracut APR Series on?
Ultracut APR Series with Quad Adapter is designed for any angle grinder with a 5/8”-11 thread spindle. If you want to use a European version grinder with M14-2 spindle, Alpha® offers a comparable Quad Adapter.
Can I use Ultracut APR Series for grinding applications?
No. Ultracut APR Series is designed for Flush Cutting but not designed for grinding. The diamond layer on the bottom side of the steel core is for the protection of the steel core from under cutting only.
When the Ultracut APR Series is installed on a grinder, the edge of the safety guard touches before the blade. Can adjustments be made?
Alpha® offers several washers to compensate for the gap between the blade and the edge of the safety guard, so please call our office to inquire about accessories such as that.
Can I use Ultracut APR Series on a cordless grinder?
Yes. However, since you can increase the performance of the blade with a stronger power tool at the highest rpm, we recommend using the Ultracut APR Series on an industrial quality corded angle grinder. If you must use it on a cordless grinder, please run it at the highest rpm and let the blade cut the materials at its own pace
I need this kind of multi-purposes vacuum brazed diamond blade for a pneumatic cut-off tool. What do you recommend?
Alpha® recommends the Ultracut ABM Series that fits on a 3” pneumatic cut-off tool and a 4” pneumatic extended cut-off tool with 3/8” spindle.
