Achilli MSA 370

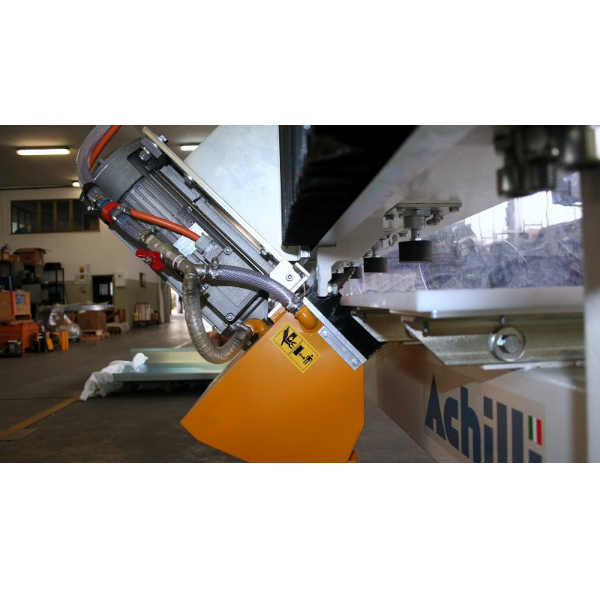

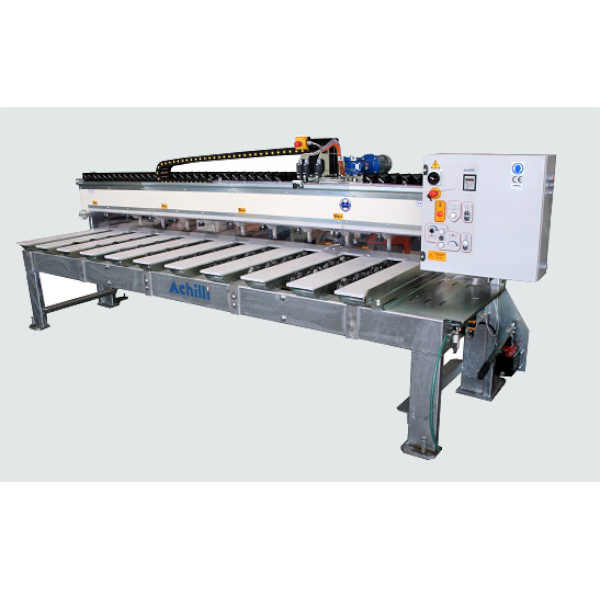

Achilli MSA 370 is a high-precision bridge miter saw designed to perform 45° miter cuts on marble, granite, ceramic, porcelain stoneware, and sintered materials. Its inverted machining system processes slabs with the finished face down, compensating for thickness variations in non-calibrated materials and allowing precise, flawless 45° joints without limitations on slab width. The cutting head travels on advanced linear guides with recirculating ball slides and automatic lubrication, while a millimetric-precision manual handwheel provides accurate blade positioning and approach. Its integral pneumatic clamping system combines 10 to 11 locking pistons for standard and narrow pieces with three pop-up/retractable stops for thin ceramic and sintered stone slabs.
Built for demanding fabrication environments, the Achilli MSA 370 features a reinforced steel chassis treated with hot-dip galvanization for corrosion protection and removable splash guards along the workbench. Its scratch-resistant polymer slat worktable helps protect finished material surfaces, while motorized head travel with adjustable feed speed and integrated digital displays allows operators to monitor RPM, feed rate, and motor load. The machine accommodates 350, 400, and 450 mm (14″, 16″, and 18″) diamond blades and supports cutting thicknesses from 0–80 mm, providing a versatile solution for precise miter fabrication on a wide range of slab materials.
Main Features
- High-precision bridge miter saw for 45° cuts
- Designed for marble, granite, ceramic, porcelain stoneware, and sintered materials
- Inverted machining with the finished slab face down
- Compensates for thickness variations in non-calibrated slabs
- No slab-width limitation for 45° miter joints
- Linear guides with recirculating ball slides
- Automatic lubrication system for cutting-head guides
- Millimetric manual handwheel for precise blade positioning

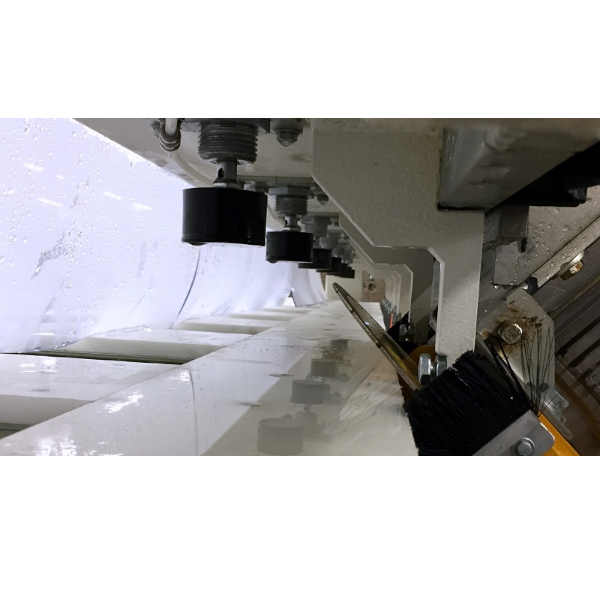

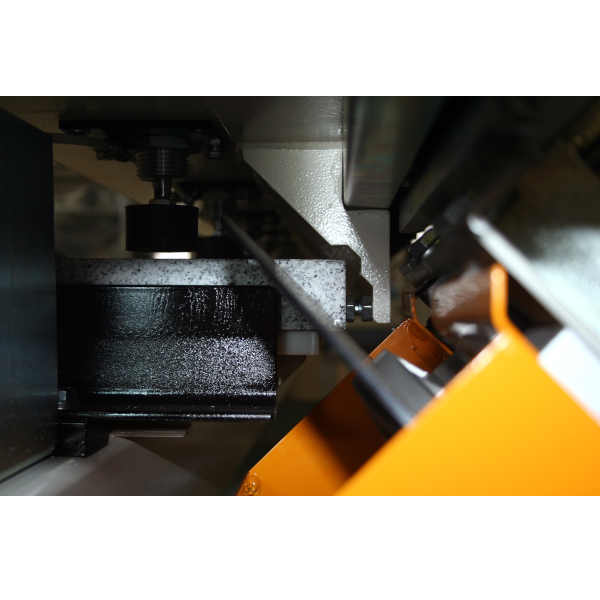

- Integral pneumatic clamping system
- 10–11 pneumatic locking pistons for standard and narrow pieces
- 3 pop-up/retractable stops for thin ceramic and sintered slabs
- Reinforced hot-dip galvanized steel chassis

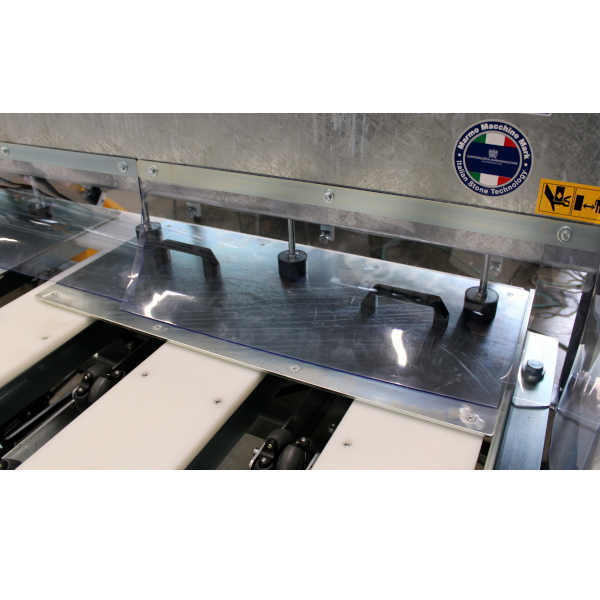

- Removable splash guards along the workbench

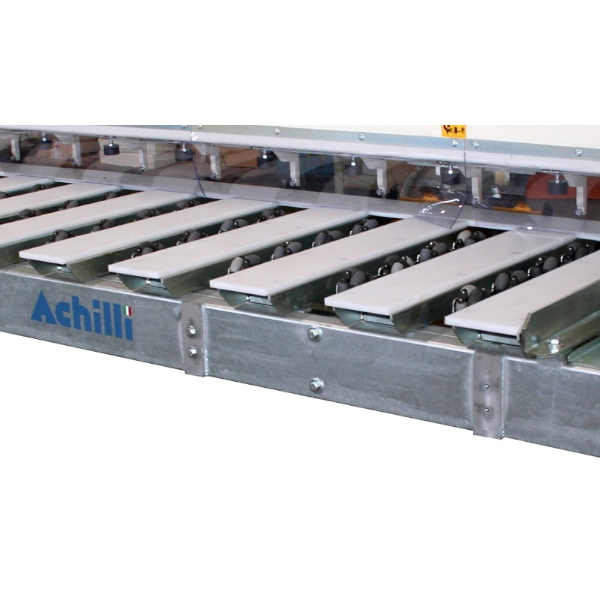

- Scratch-resistant polymer slat worktable
- Motorized head travel with adjustable feed speed
- Integrated digital displays for RPM, feed rate, and motor load
- Available with fixed or variable-speed motor operation
- Supports blade diameters from 14″ to 18″
- Suitable for cutting thicknesses from 0–80 mm
Technical Specifications
| Property | Value |
|---|---|
| X-Axis Travel | 3300 / 3700 mm |
| Table Dimensions | 3700 × 1000 mm |
| Slab Width Limitation | None |
| Diamond Blade Diameter | 350 / 400 / 450 mm (14″ / 16″ / 18″) |
| Blade Bore Diameter | 50 mm |
| Permissible Cutting Thickness | 0–80 mm |
| Main Motor Power | 5.5 kW (7.5 HP), Three-Phase |
| Fixed Rotation Speed | 1400 RPM (50 Hz) / 1700 RPM (60 Hz) |
| Variable Speed with Inverter | 800–3400 RPM |
| Power Supply | 230V – 60 Hz / 400V – 50/60 Hz, Three-Phase |
| Clamping System | 10–11 pneumatic pistons + 3 pop-up stops |
Achilli MSA 370 Video
Achilli Miter saw MSA
Achilli Miter saw MSA
Angle cutting saw for 45 degree perfect cuts
Achilli miter saw MSA
Achilli MSA miter saw for 45 degree cutting
Pneumatic slab stops for miter saw
