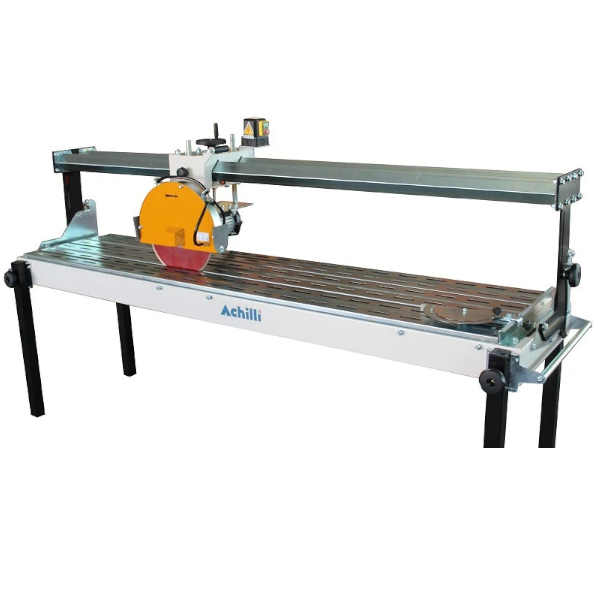

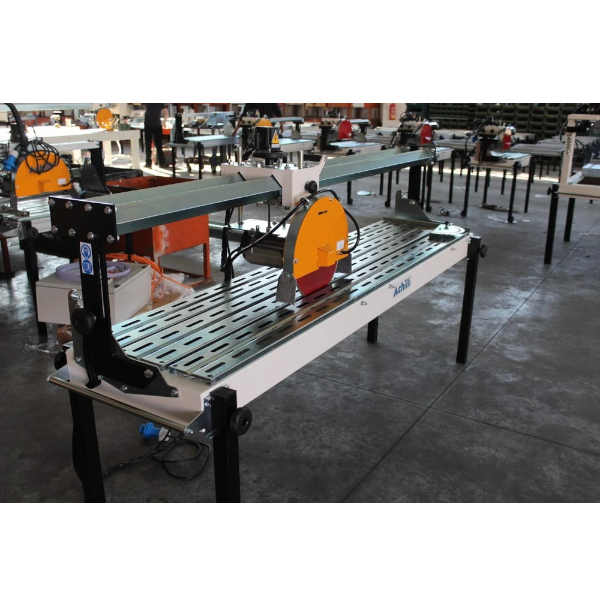

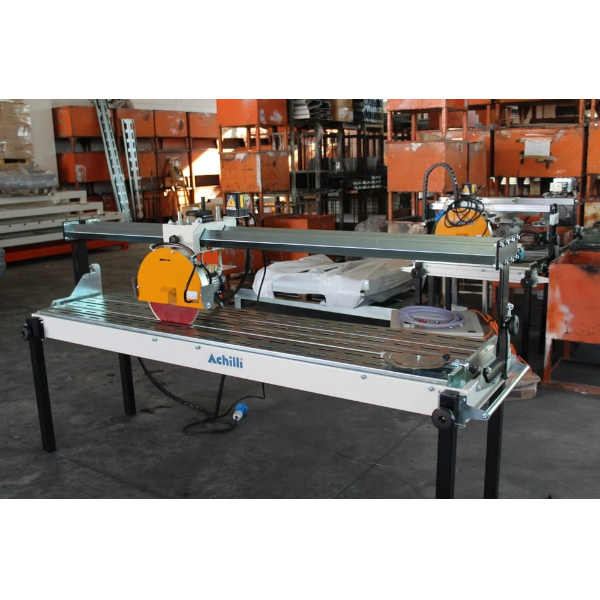

Achilli TAG Portable Wet Bridge Saw 130
Achilli TAG Portable Wet Bridge Saw 130 is a professional portable bridge saw designed for cutting tile, stone, and building materials in demanding job-site and fabrication-shop environments. Built in Italy with premium-quality materials, the TAG delivers smooth, precise cutting on granite, marble, stone, porcelain, ceramic, terracotta, concrete, glass, and other sheet materials. Its dual-rail bridge system provides consistent head movement and cutting accuracy, while the robust galvanized steel rail worktable and frame are built for long-term reliability.

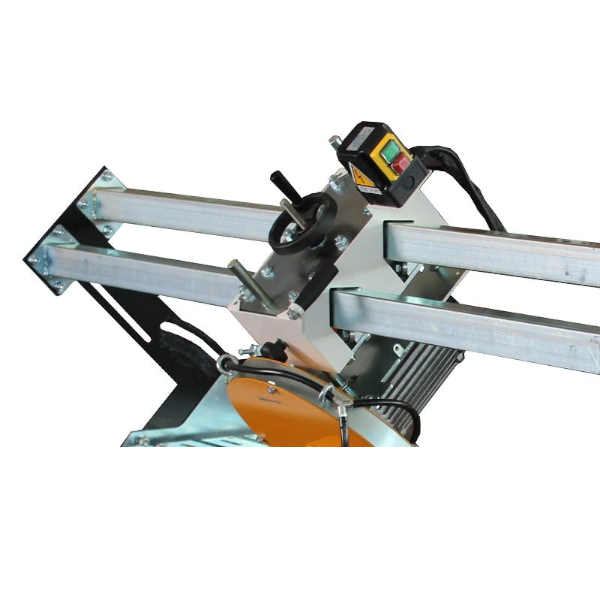

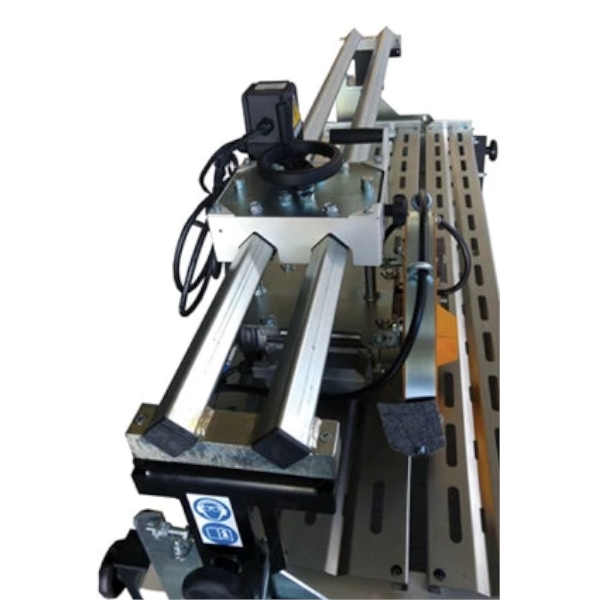

The TAG features a manual head feed with a double rhomboidal beam, manual bridge tilt from 90° to 45° for miter cuts, manual cutting-depth adjustment via handwheel, a soft-start on/off switch near the blade housing, and an adjustable squaring bar. Its self-contained water recycling tray and integrated pump continuously supply water to both sides of the blade for cooling and extended blade life. Folding legs and an integrated carrying handle make transportation and setup easier, while optional side extension tables can be mounted on either side. The machine is available with 600 mm (24″), 800 mm (32″), 1000 mm (40″), 1300 mm (52″), 1500 mm (60″), and 2000 mm (79″) cutting lengths, with a 2 kW (2.7 HP) single-phase motor or optional 2.9 kW (4 HP) three-phase motor, 230V–50Hz standard voltage, and 10″, 12″, or 14″ blade capacity with a 25.4 mm (1″) arbor.
Main Features
- Professional portable wet bridge saw for tile, stone, and building materials
- Made in Italy with premium-quality materials
- Available cutting lengths from 24″ to 79″
- 2 kW (2.7 HP) single-phase motor; optional 2.9 kW (4 HP) three-phase motor
- 230V–50Hz standard voltage
- Accepts 10″, 12″, and 14″ blades
- 1″ (25.4 mm) blade arbor

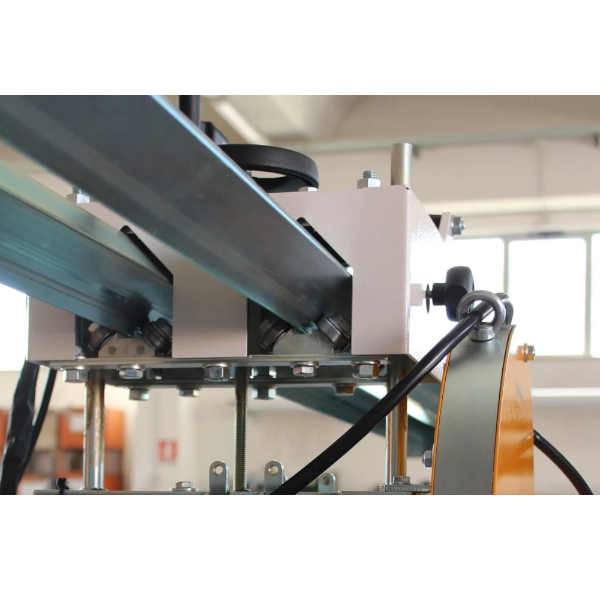

- Dual-rail bridge system for smooth, precise cutting
- Manual 90°–45° bridge tilt for miter cutting
- Manual cutting-depth adjustment
- Self-contained water recycling tray with integrated pump
- Water feeds both sides of the blade for cooling
- Galvanized steel rail worktable and robust frame

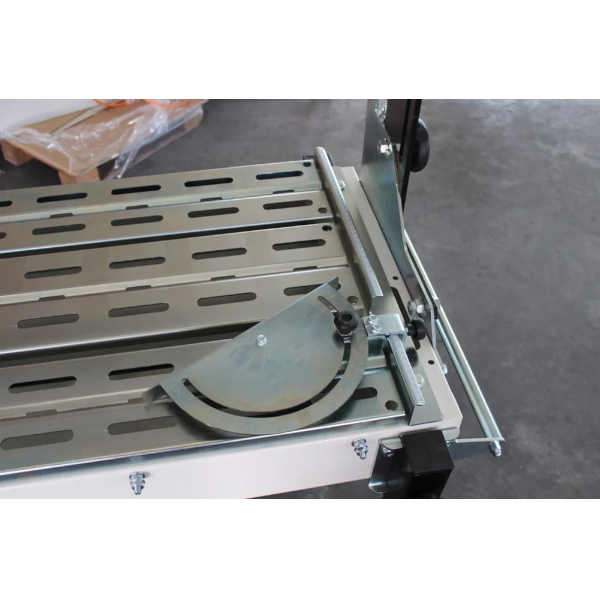

- Adjustable squaring bar

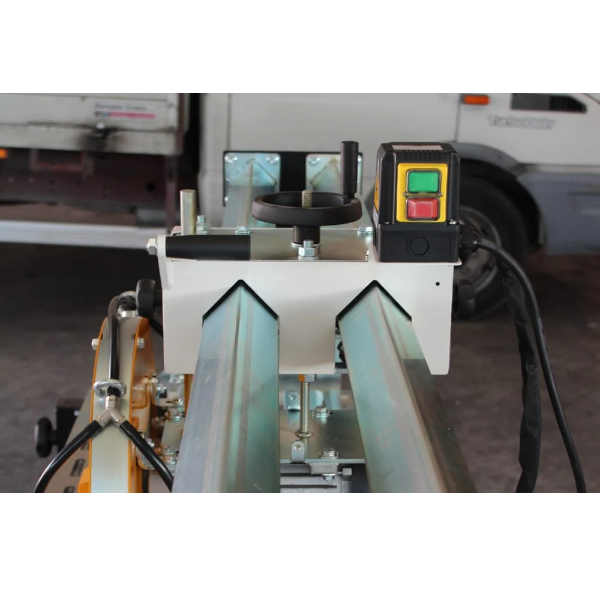

- Soft-start on/off switch near the blade housing
- Folding legs and integrated carrying handle for portability
- Optional side extension tables mountable on either side
Technical Specifications
| Property | Value |
|---|---|
| Cutting Lengths | 24″, 32″, 40″, 52″, 60″, 79″ |
| Motor Power | 2 kW (2.7 HP), single-phase |
| Optional Motor | 2.9 kW (4 HP), three-phase |
| Standard Voltage | 230V – 50Hz |
| Blade Capacity | 10″, 12″, 14″ |
| Blade Arbor | 1″ (25.4 mm) |
| Bridge Tilt | 90°–45° |
| Cooling System | Water recycling tray with integrated pump |
| Head Feed | Manual |
| Cutting Depth Adjustment | Manual handwheel |
| Worktable | Galvanized steel rails |
| Materials | Granite, marble, stone, porcelain, ceramic, terracotta, concrete, glass |
Achilli TAG Portable Wet Bridge Saw 130 Video
TAG portable bench saw with sliding head for tiles, stone slabs and building materials.
Achilli TAG Bench Saw For Stone, Marble and Granite TAG130 | TAG150 | TAG200
