Achilli TSA Portable Rail Saw

Achilli TSA Portable Rail Saw

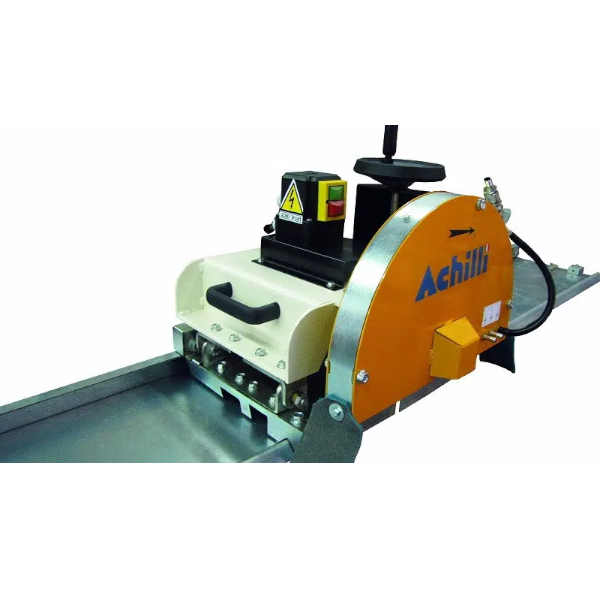

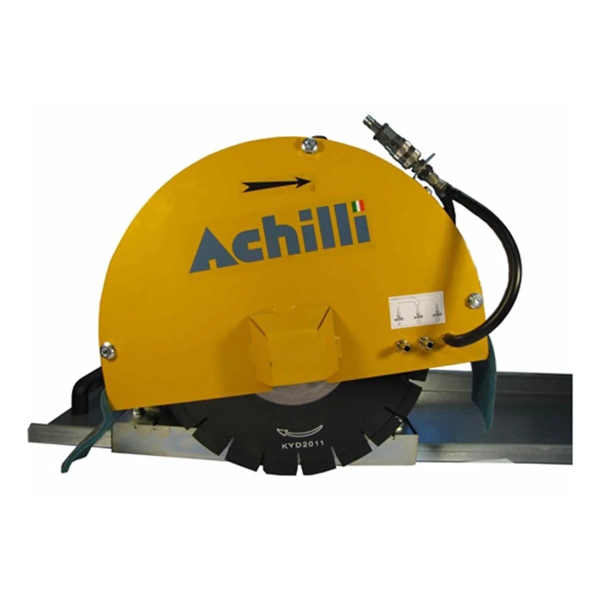

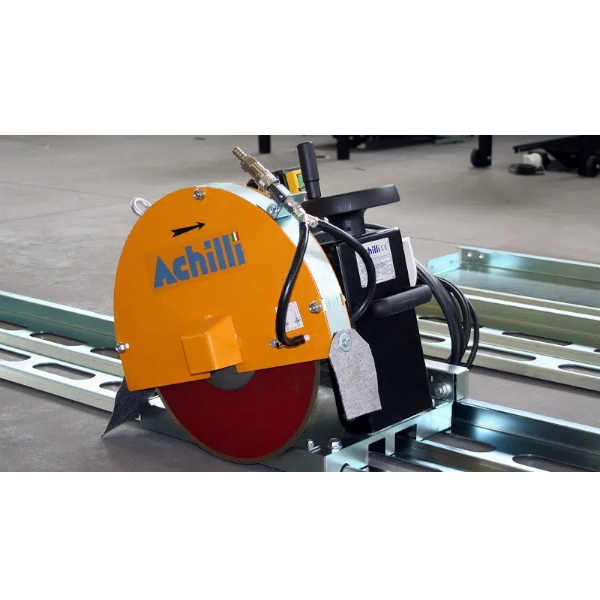

Achilli TSA Portable Rail Saw is a lightweight, highly portable rail saw designed for precise, straight, on-site cutting of large stone slabs. Its modular rail system and compact design allow fabricators to achieve professional results with minimal setup, while the cutting head travels on six precision bearings for smooth, accurate operation. The TSA features a manual cutting-depth adjustment via handwheel and a single-hand water connection for quick setup and efficient blade cooling.

Built with a sandblasted steel frame and finished with an epoxy powder coating for long-term durability, the TSA is easy to transport, assemble, and align on-site. Its foldable rail system is available in 1200 mm (4′), 2500 mm (8′), or 4000 mm (13′) lengths, with optional rail sets available in these lengths to suit different cutting requirements. The saw uses 300–350 mm (12″–14″) blades with a 25.4 mm (1″) bore and is powered by a 2.2 kW (3 HP) single-phase motor at 230V–50/60Hz. A galvanized finish is also available upon request.

Main Features

• Lightweight and highly portable design
• Rail-guided system for straight, accurate slab cuts
• Six precision bearings for smooth cutting-head travel
• Modular, foldable rail system
• Manual cutting-depth adjustment via handwheel
• Easy single-hand water connection for blade cooling
• Steel frame with sandblasted epoxy powder-coat finish
• Galvanized finish available upon request
• Ideal for on-site fabrication and installation
• Optional rail sets available in multiple lengths

Technical Specifications
