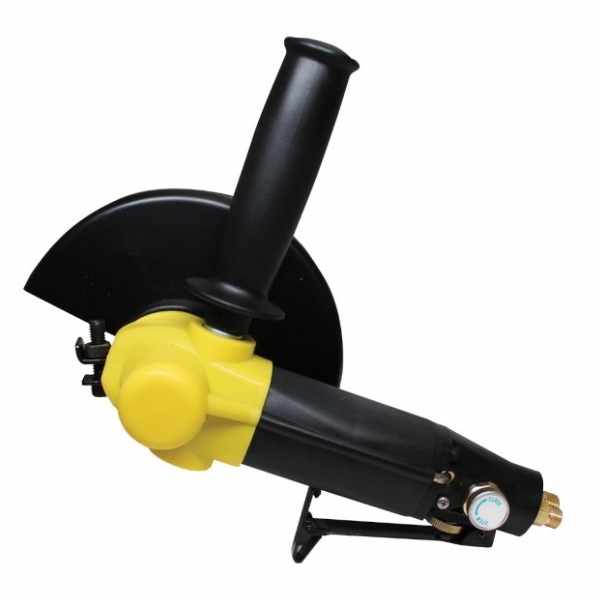

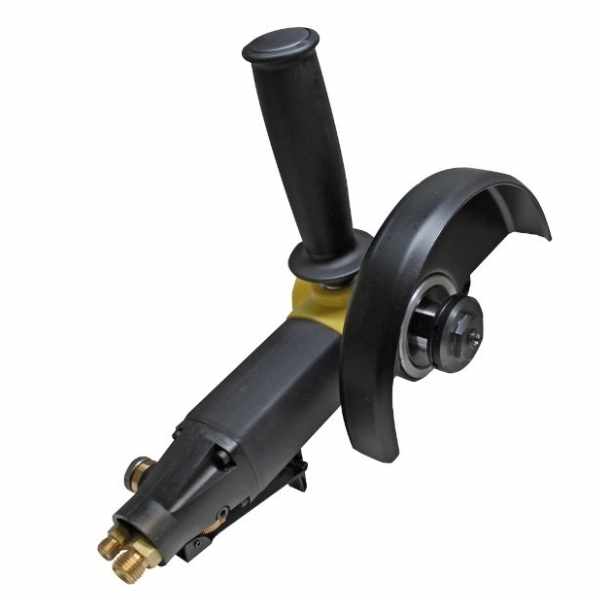

ALPHA PSC-600 Pneumatic Stone Cutter
The ALPHA PSC-600 Pneumatic Stone Cutter is a next-generation, high-performance wet cutting tool designed to redefine the standard in stone fabrication shops. Built to outperform and outlast traditional electric angle grinders—often compromised by stone dust and water exposure—the PSC-600 offers a powerful, durable, and safer pneumatic alternative that delivers unmatched reliability in wet cutting environments.
This innovative cutter features a unique center water-feed system that directs water evenly to both sides of the diamond blade, significantly reducing airborne dust and extending blade life. Designed with operator comfort in mind, the rear exhaust system prevents hand-freezing issues, while the composite end case adds insulation to enhance usability in all conditions.
Compact, lightweight, and more maneuverable than conventional electric grinders, the PSC-600 is equipped with 15 ft. all-weather water and air hoses, a quick water coupler with shut-off valve, and all the essential safety features for a true turn-key cutting experience. Whether you’re working on-site or in the shop, the ALPHA PSC-600 is the smart, professional choice for clean, precise, and efficient stone cutting.
PSC-600 Pneumatic Stone Cutter Main Features
- High-Performance, Pneumatic Cutting Tool
- Central Water-Feed System Delivers Ample Water Regardless of Position
- No-Load 8,500 RPMs
- 15ft. All-Weather Hoses with Flexibility Down To -40°F Or +140°F (-40°C Or +60°C)
- Newly Developed Motor Produces More Power
- Lightweight and Ergonomically Designed for Better Maneuverability
- Spring Return Throttle to Avoid Accidental Start
- Composite End Case Prevents Freezing Hands
- Silicon Gear Head Cover Provides Cushion and Keeps Hands Warm
- Enhanced Spindle Shaft for Easy Tool Removal (Wrench Included)
- Works Great as a Grinder Also
- One Year Tool Warranty*
ALPHA PSC-600 Pneumatic Stone Cutter Videos
Wet Air Grinder for Cutting and Grinding – PSC 600 Pneumatic Stone Cutter/Grinder
PSC-600 Pneumatic Stone Cutter Specifications
| Feature | Value |
|---|---|
| Model | PSC-600 |
| Air Pressure | 85 PSI (6 Bar) |
| Air Consumption | 15 CFM (425L/min) |
| Weight | 2.9 lbs (1.3 kgs) |
| No Load Speed | 8,500 RPM |
| Air Inlet | 1/4” BSPP |
| Water Inlet | 1/8” BSPP |
| Arbor | 7/8” (2.232mm) |
| Max. Cutting Disc Diameter | 6″ (150mm) |
| Length | 7-1/2” (190.5mm) |
| Part No. | Size | Maximum RPM | Arbor(s) | Recommended For | Description |
|---|---|---|---|---|---|
| PSC-600 | 6″ | 8,500 | 7/8” (22mm) | Cutting | Pneumatic Stone Cutter (Grinder-Style) |
| AIR-008 | Pneumatic Tools | Rust Inhibitor Oil 8oz (237ml) |
Equipment Included
| Item | Quantity |
|---|---|
| Air Hose (15ft / 4.5m) | 1 |
| Water Hose (15ft / 4.5m) | 1 |
| Side Handle (reversible) | 1 |
| Rust Inhibitor Oil (6.7oz / 200ml) | 1 |
| Screw (w/ O-Ring Seal for Oil Port) | 1 |
| Exhaust Hose with Clamp | 1 |
| Spring Washer | 1 |
| 6″ Safety Guard | 1 |
| Double End Wrench (19mm / 22mm) | 1 |
| Phillips Screwdriver | 1 |
| Water Quick Coupler w/ Shut Off Valve | 1 |
| O-Ring (O-Ring for Water Valve Repair) | 1 |
| Single Open Wrench (22mm) | 1 |
| Hex Wrench (6mm) | 1 |
| Inner Flange for Cutting | 1 |
| Outer Flange | 1 |
| L-Bracket | 1 |
| Inner Flange for Grinding | 1 |
ALPHA PSC-600 Pneumatic Stone Cutter Related Documents
| Document Type | Link |
|---|---|
| Manual | PSC-600 Manual v1 |
| Reference | PSC-600 Grinding Wheel Instructions |
| Parts-Schematic | PSC-600 Parts/Schematic v1 |
| Parts-Schematic | PSC-600 Parts/Schematic v2 |
| Flyer | Pneumatic Cutter/Grinder Comparison Chart |
| Flyer | PSC-600 flyer |
| Other | Warranty Information |
Additional Information
| PartNo | UPC Code | Pkg. Weight (lbs) | Package Dimensions | Commodity Code | Country Of Origin |
|---|---|---|---|---|---|
| PSC-600 | 749173430107 | 8.35 | 13.5in x 11.5in x 3.5in | 8467.11.5090 | Japan |
| AIR-008 | 749173430022 | 0.54 | 7in x 2.5in x 2.5in | 2710.19.4000 | USA |
Frequently Asked Questions
Does Alpha® offer any flexible discs to complete profiling on a round over edge?
Alpha® recommends a 5” VFlex Flexible Sanding Disc (VDF50xx series) to shape up the profile of round over edges or to clean up the internal oval rim of a vanity. Select from 35 grit, 50 grit or 80 grit to complete this task.
I have a large enough compressor but PSC-600 bogs down from time-to-time. What can I do to improve the operation?
Since you may have multiple pieces of equipment connected to the compressed airline, you may be short of air flow available from your compressor.
What is different between wet grinders on the market and the Alpha® PSC-600?
Most of the wet grinders have been built with alteration of a common pneumatic high-speed angle grinder designed for dry metal applications with an exterior water feed. Even though you may find one with center water feed system, water would spray towards the outside of the blade only and water wouldn’t ever cool the other side of the blade. The PSC-600 is designed from scratch as an industrial wet cutting tool for the stone industries. With this said, the Alpha® wet cutter is built with more than 30 years of experience producing wet polishers and the voices from stone fabricators.
Can I use PSC-600 for grinding application?
Yes. The PSC-600 offers the flexibility to be used as wet stone cutter or wet stone grinder since it has a very unique center water feed system. To use as a grinder, replace the Inner Flange designed for cutting with the one designed for grinding which will send all the water to the grinding edge, instead of dividing it onto the two sides of the grinding cup wheel. Note: Due to the spindle thread size, any grinding wheel with a pre-threaded 5/8”-11 arbor will not fit on PSC-600; so you need to use one with a 7/8” straight arbor for sanding and grinding.
What is the warranty on the PSC-600?
One year warranty.
How can I get the parts list and schematic for the PSC-600?
You can find it in the Related Documents section
Can I use PSC-600 as a dry cutter?
Yes. However, make sure to be compliant with Table 1 of OSHA silica rule regarding dangerous silica dust exposure.
Does Alpha® offer a electric high-speed angle grinder with center water feed system?
No. However, Alpha® offers a WSPKIT to convert most popular small and large high speed grinders into a wet tool for cutting, grinding and profiling applications.
How much rust inhibitor oil do I need to put in the oil port?
Alpha® suggests to put only a few drops of rust inhibitor oil in the oil port at the end of the shift then slowly turn on the air to lubricate the rotor and cylinder. If you blow compressed air in full, rust inhibitor oil will come out from the exhaust which would defeat the purpose.
Which product does Alpha® recommend for sanding and grinding?
Alpha® recommends using a 5” Vexcel Rigid Disc 25 grit (VDR5025) for heavy grinding applications and a 35 grit (VDR5035) for general shaping applications. We also recommend a 5” Spike Disc 35 grit (VCS5035) for resin net removal from the back sides of stones. In both cases, you can enjoy fast material removal with much less noise and vibration as compared with sintered bond grinding wheels.
