Mechanic TileTEMPLATE XL is the ultimate marking system for professionals working with large-format tiles (120″ × 78″), where precision isn’t optional—it’s the difference between a seamless installation and an expensive mistake. Large tiles demand exact hole placement for sockets, water pipes, columns, corners, and other architectural features, yet measuring and transferring these points manually is slow, error-prone, and frustrating. TileTEMPLATE XL solves this with a robust, multifunctional design that dramatically accelerates workflow while ensuring absolute accuracy.

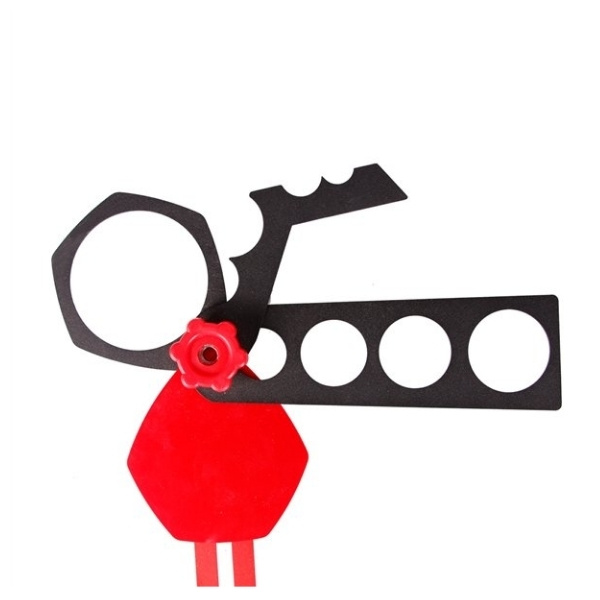

By transferring the position of the marking element relative to the positioning element, TileTEMPLATE XL reproduces layout points directly onto the tile surface with pinpoint precision, eliminating guesswork and re-measuring. Its configuration supports a wide variety of professional marking tasks, including holes for electrical sockets, holes for water pipes of multiple diameters, alignment for pre-installed water and sewer pipes, non-standard diameters using the included plastic nozzle, and accurate angle tracing around columns or irregular structural shapes. Built specifically for the scale and challenges of large-format tiles, TileTEMPLATE XL delivers consistent, fast, and reliable markings—making even the most complex layouts cleaner, simpler, and significantly more efficient.

TileTEMPLATE XL Specifications
