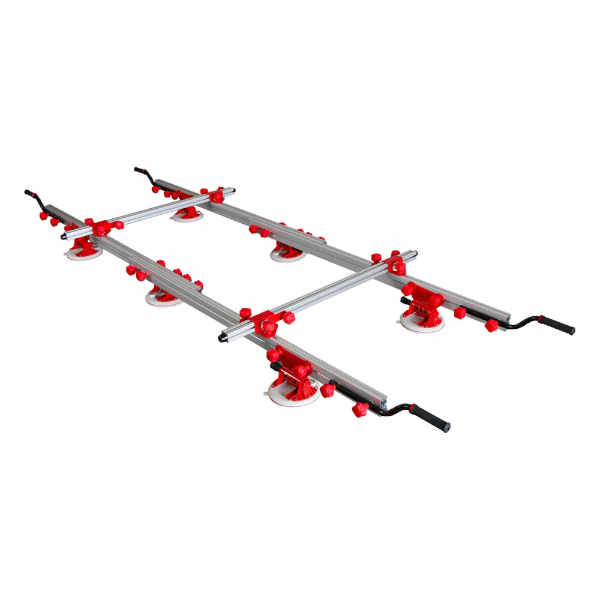

Mechanic SPRUT Slab Transport System
The Mechanic SPRUT Slab Transport System is a professional, large-format tile slab-carrying tool designed to simplify lifting, transporting, and installing porcelain and ceramic slabs while maximizing safety and efficiency. Engineered to handle slabs up to 126″ (320 cm) long, 63″ (160 cm) wide, and weighing up to 1,100 lbs (500 kg), the system features six heavy-duty 8″ (200 mm) vacuum suction cups powered by electric air pumps for secure fixation on both smooth and textured surfaces. Each suction cup supports up to 330 lbs (150 kg), while the white cup material helps prevent surface staining, and integrated pressure gauges allow precise monitoring for maximum handling safety.
Built around lightweight telescopic aluminum profiles, the SPRUT adjusts in length from 65″ to 126″ (165–320 cm) and in width from 20″ to 63″ (0.5–1.6 m), providing exceptional versatility for different slab sizes. Reinforced crossbars enhance structural stability, while the modular design allows multiple configurations, including single-guide operation for narrow and medium-sized slabs. Despite its impressive capacity, the system weighs only 66 lbs (30 kg), making it easy to transport and maneuver. Adjustable handles, removable suction pumps, and the included rolling storage bag ensure convenient transportation, storage, and adaptability to a wide range of jobsite conditions.
Tips
- Always check suction cup gauges before lifting slabs
- Use both longitudinal guides for slabs over 1 m wide
- Remove suction pumps for manual positioning when needed
- White suction cups prevent stains on polished tiles
- Keep suction cups clean for maximum holding power
- Store in the provided rolling bag for safe transport
SPRUT Slab Transport System Specifications
| Property | Value |
|---|---|
| Max Tile Length | 126 in. (320 cm) |
| Max Tile Width | 63 in. (160 cm) |
| Max Load Capacity | 1100 lbs (500 kg) |
| Suction Cups | 6 pcs, 8 in. (200 mm) diameter |
| Cup Capacity | 330 lbs (150 kg) each |
| Profiles | Telescopic aluminum, 65–126 in. (165–320 cm) |
| Width Adjustment | 20–63 in. (0.5–1.6 m) |
| System Weight | 66 lbs (30 kg) |
| Profile Weight w/ Cups | 30 lbs (13.5 kg) each |
| Handles | 4 adjustable ergonomic handles |
| Included | Storage bag, 2 crossbar sets, suction pumps |
| Brand | Mechanic |
Mechanic CeraMAX 1200 Telescope 2.0 Video
Slab Transport System Sprut
FAQ
What is the maximum tile size the SPRUT system can handle?
Up to 126" x 63" (320 x 160 cm) and 1100 lbs (500 kg).
Can it be used on textured slabs?
Yes, but holding capacity may be slightly reduced depending on the surface relief.
Does it come with a storage case?
Yes, a rolling bag is included for easy transport and storage.
How many suction cups are included?
The system has six 8" (200 mm) vacuum suction cups with electric pumps.
Can one person use it alone?
While lightweight, safe operation for large slabs typically requires at least two people.
