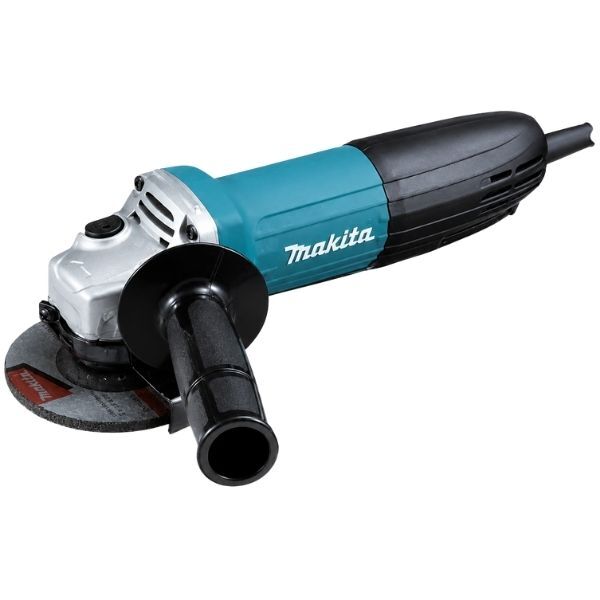

Makita 4-1/2″ Paddle Switch Angle Grinder with AC/DC Switch GA4534 Highlights
POWER: : 6 AMP motor delivers 11,000 RPM

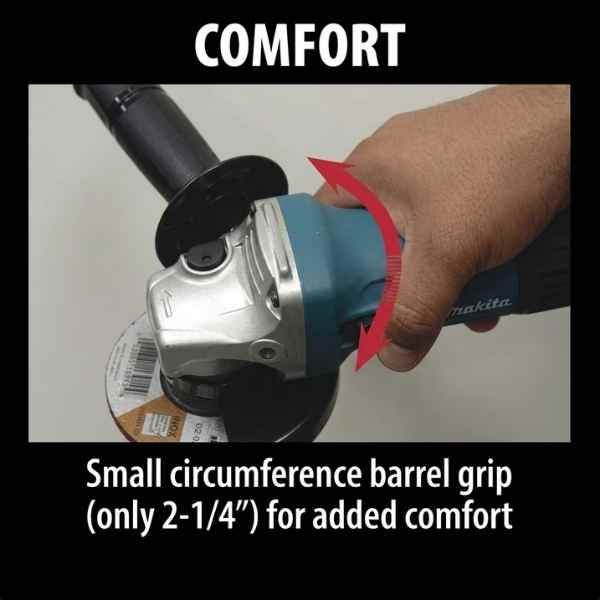

COMFORT: : Small diamater barrel grip (only 2- 3/16″); no lock on and lock off feature
DURABILITY: : Labyrinth construction and zig-zag varnish seals and protects the motor from dust and debris
CONVENIENCE: : Paddle switch with no lock-on
INCLUDES: : 4-1/2″ grinding wheel, guard, lock- nut, wrench, side handle and inner flange
About Makita 4-1/2″ Paddle Switch Angle Grinder with AC/DC Switch GA4534…
The Makita 4-1/2 in. Angle Grinder has a small diameter barrel grip (only 2-3/16 in.) with paddle switch for added comfort and a refined design at only 4.2 lbs. for reduced operator fatigue. The paddle switch desgin includes no lock-on for added user preference. The side handle is positioned at an increased 20° angle for added comfort and control. The Makita Angle Grinder is ideal for welders, fabricators, masons, maintenance/repair and more.
Makita 4-1/2″ Paddle Switch Angle Grinder with AC/DC Switch GA4534 Features
- Powerful 6.0 AMP motor delivers 11,000 RPM for the most demanding applications
- Compact design at only 4.2 lbs. for reduced operator fatigue
- Labyrinth construction seals and protects the motor and bearings from dust and debris for longer tool life
- Paddle switch design with no lock-on for added user preference
- AC/DC switch for use with alternative power source

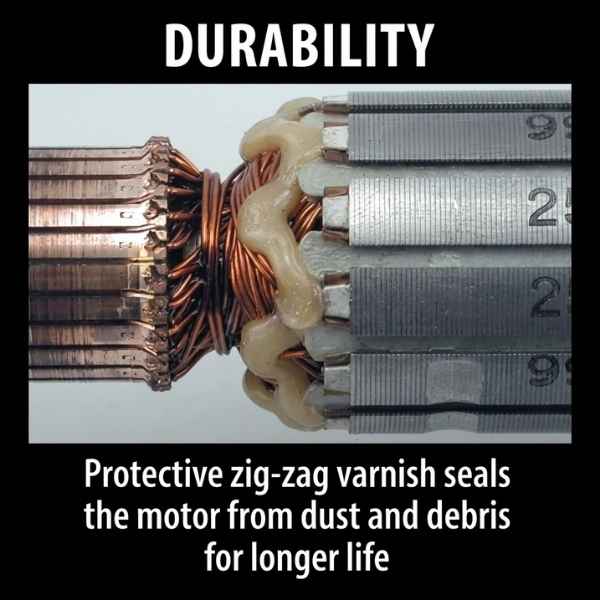

- Protective zig-zag varnish seals the armature from dust and debris for longer tool life
- All-ball bearing design and metal gear housing for added durability

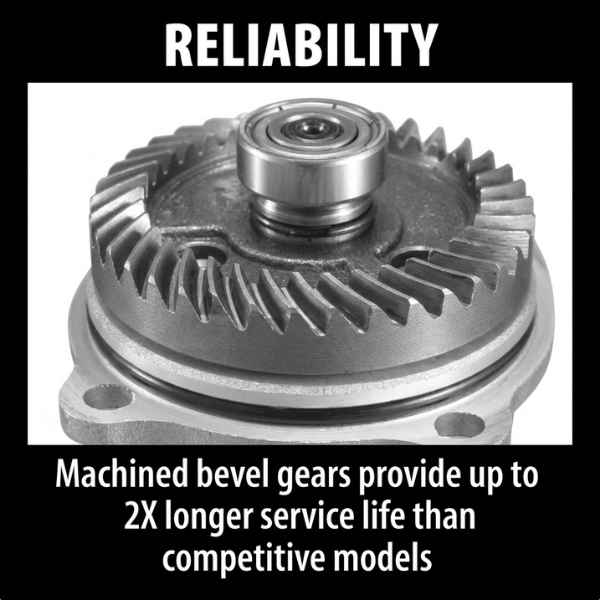

- Machined bevel gears provide up to 2x longer service life than previous models

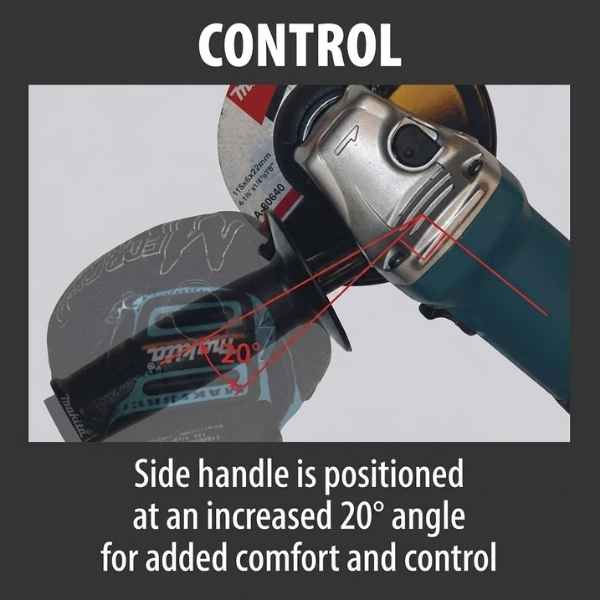

- Side handle is positioned at an increased 20° angle for added comfort and control
- Includes grinding wheel, guard, inner flange, lock- nut, wrench and side handle
Makita 4-1/2″ Paddle Switch Angle Grinder with AC/DC Switch GA4534 includes:
(1) 4 1/2″ Grinding Wheel (741423-B)
(1) 4-1/2″ Wheel Guard (122886-3)
(1) Lock Nut Wrench (782424-9)
(1) Side Handle (153504-2)
(1) Inner Flange (224399-1)
(1) Lock Nut (224568-4)
Makita 4-1/2″ Paddle Switch Angle Grinder with AC/DC Switch GA4534 Specifications
| Feature | Value |
|---|---|
| Wheel Diameter | 4-1/2″ |
| AMPS | 6 |
| No Load Speed | 11,000 RPM |
| Spindle Thread | 5/8″ – 11 UNC |
| Lock-On | No |
| Lock-Off | Yes |
| Grinder Switch Type | Body grip/paddle |
| Overall Length | 10-3/8″ |
| Net Weight | 4.2 lbs. |
| Variable speed control dial | No |
| Electric Brake | No |
| Power Type | Corded |
| Shipping Weight | 6.05 lbs. |
| UPC Code | 088381-606196 |
Makita 4-1/2″ Paddle Switch Angle Grinder with AC/DC Switch GA4534 Resources
GA4534 Instruction Manual
GA4534 Parts Breakdown
GA4534 Flyer English
