Alpha EZ Wedge

Alpha EZ Wedge

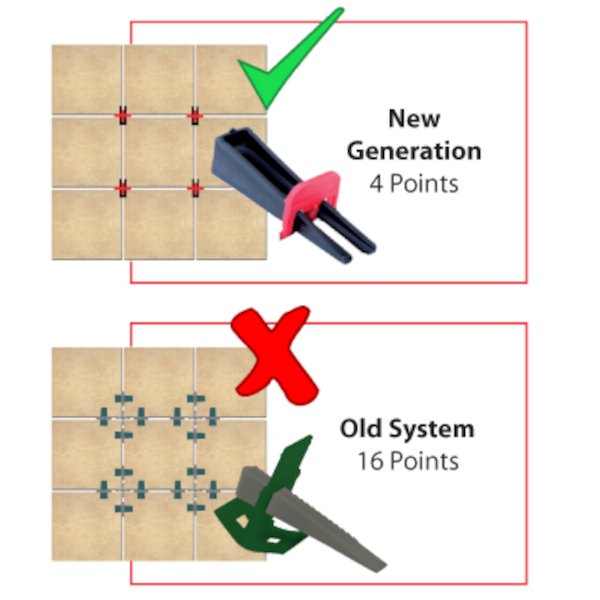

Alpha EZ Wedge introduces a smarter way to achieve flawless tile installations. This innovative Tile Leveling System is designed to maximize performance when placed under tile corners, requiring surprisingly few Clips and Tabs to deliver perfectly flat, lippage-free surfaces with consistent joints.

The EZ Wedge is incredibly user-friendly—simply insert and tighten by hand, with no need for pliers or additional tools. Built for durability and efficiency, it is reusable over and over, making it both cost-effective and environmentally friendly.

Whether you’re a professional contractor or a DIY installer, Alpha EZ Wedge ensures smooth, precise results every time.

EZ Wedge Main Features

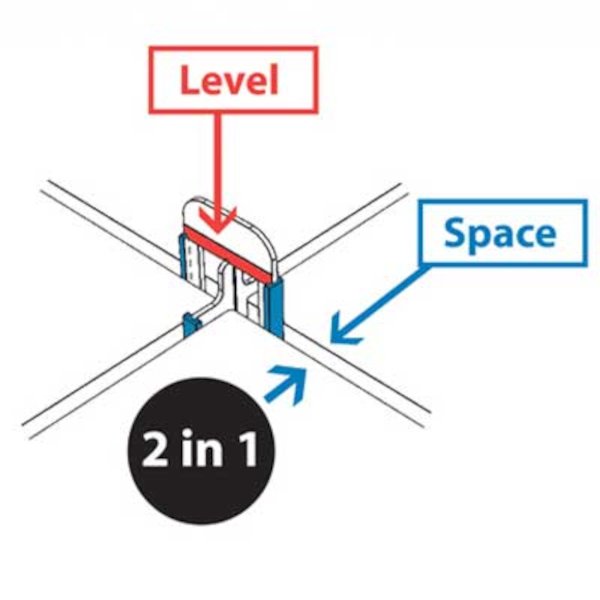

• Levels and Spaces at The Same Time
• Install Along Tile Edges

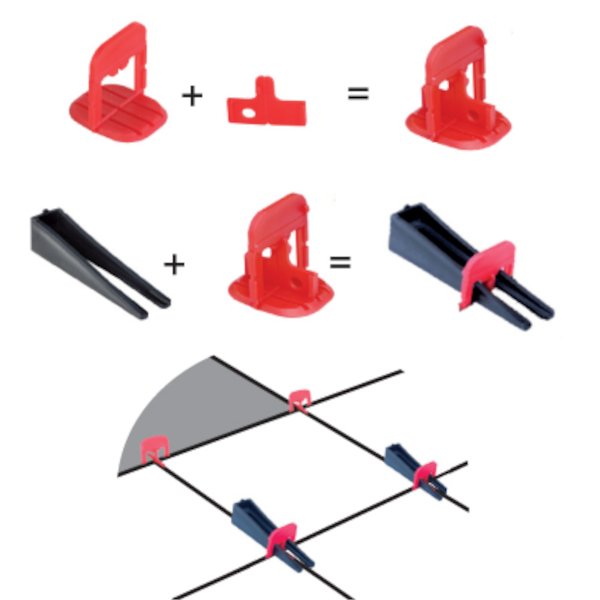

• Add Angle Tabs for Corner Installs
• Save Time & Money (up to 75%)
• Available in 3 Sizes: 1/16” (1.5mm), 1/8” (3mm) & 3/16” (5mm)
• Dual Function – No Spacers Required
• Compatible With Other Competitor’s Clips
• *Patented Design

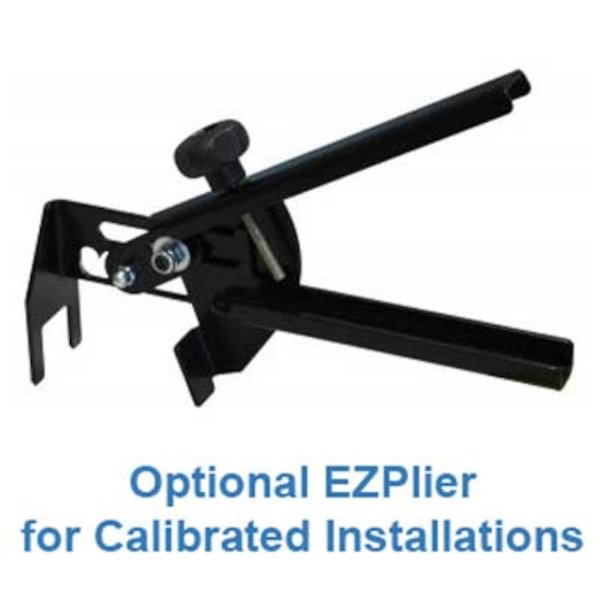

• Optional Plier Available for Calibrated Installs

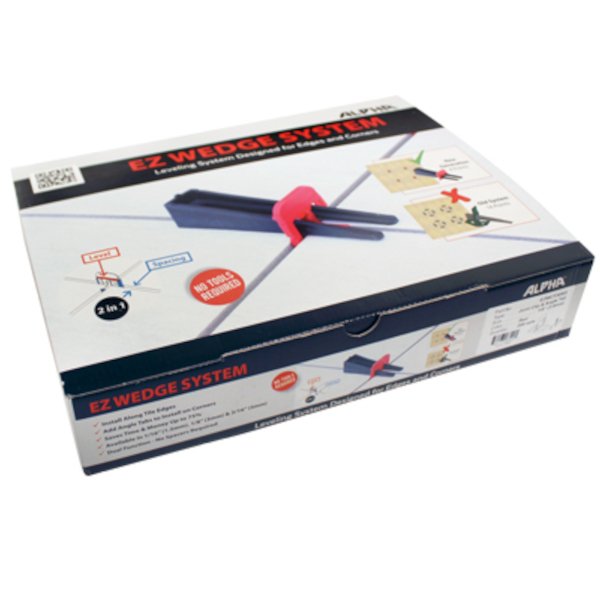

• Available by the box. Case quantity is 5 boxes.

Alpha EZ Wedge Videos

EZ Wedge Specifications

Part No.	Size	Type	Color	Qty
EZWEDGELV		Wedge		130

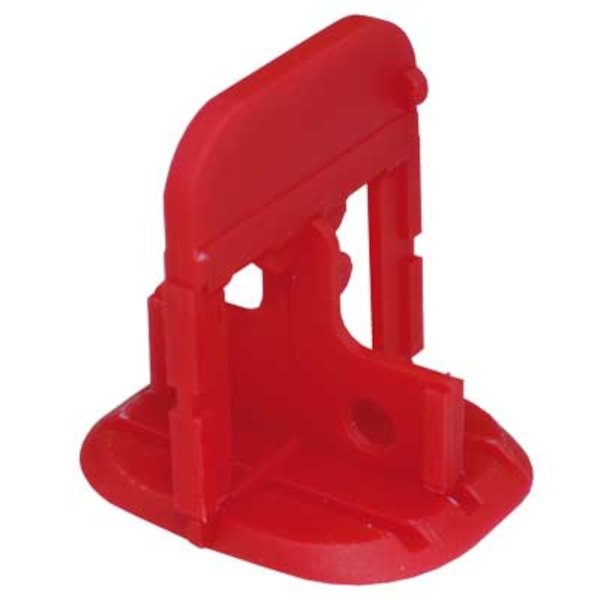

EZWCT15WH	1/16″ (1.5mm)	Joint Clip & Angle Tab	White	200 sets
EZWCT30RD	1/8″ (3.0mm)	Joint Clip & Angle Tab	Red	200 sets
EZWCT50BK	3/16″ (5.0mm)	Joint Clip & Angle Tab	Black	200 sets
EZPLIER		Plier		1

Alpha EZ Wedge Related Documents

Document Type	Link
Flyer	EZ Wedge System flyer
Flyer	EZ Wedge Comparison Chart
Other	Warranty Information

Additional Information

PartNo	UPC Code	Pkg. Weight (lbs)	Package Dimensions	Commodity Code	Country Of Origin
EZWEDGELV	749173260001	2.91	14.75in x 3in x 10in	3925.90.0000	Italy
EZWCT15WH	749173260018	2.05	14.75in x 3in x 10in	3925.90.0000	Italy
EZWCT30RD	749173260025	2.07	14.75in x 3in x 10in	3925.90.0000	Italy
EZWCT50BK	749173260032	2.07	14.75in x 3in x 10in	3925.90.0000	Italy
EZPLIER	749173260049	0.66	9.5in x 6.75in x 2in	8205.59.8000	Italy
