Alpha EZ Click
Alpha EZ Click introduces the next generation of tile leveling systems, designed to make installations faster, easier, and more precise. The patent-pending leveling cap ensures adjacent tiles are perfectly level with zero effort, requiring no pliers or additional tools—just your hands.
The uniquely shaped contact edge of the cap automatically clears away residue and tiny debris during use, minimizing the risk of scratching tile surfaces. Once bases are cracked, the proprietary unlocking system instantly ejects the screw, eliminating the tedious process of unscrewing caps.
Base screws are available in multiple shapes for both edge and angled installations, with calibration sizes that support traditional tile spacing from 3/64” to 5/32”.
Efficient, user-friendly, and precise, Alpha EZ Click is the smarter way to achieve flawless tile installations.
EZ Click Series Main Features
- Instant Screw Ejection Leveling System
- Supports Tile Thickness: 1/8″ to 25/32″ (3mm to 20mm)

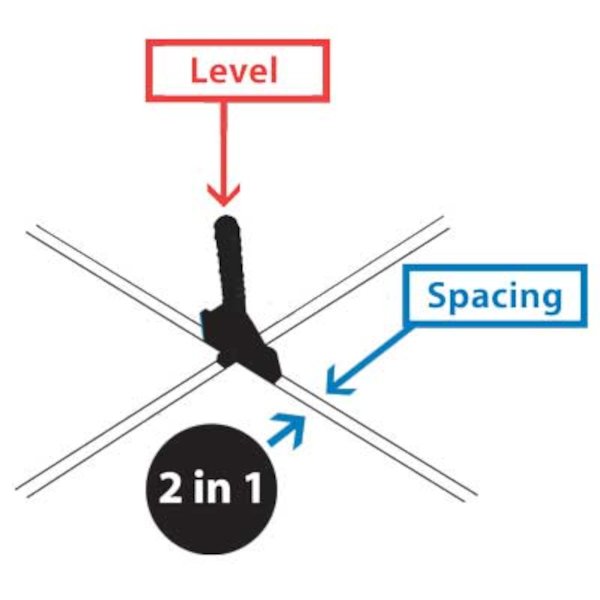

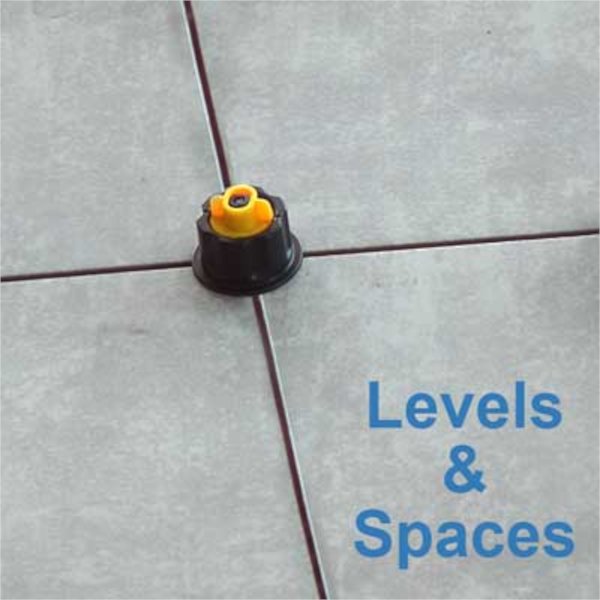

- Levels and Spaces at The Same Time

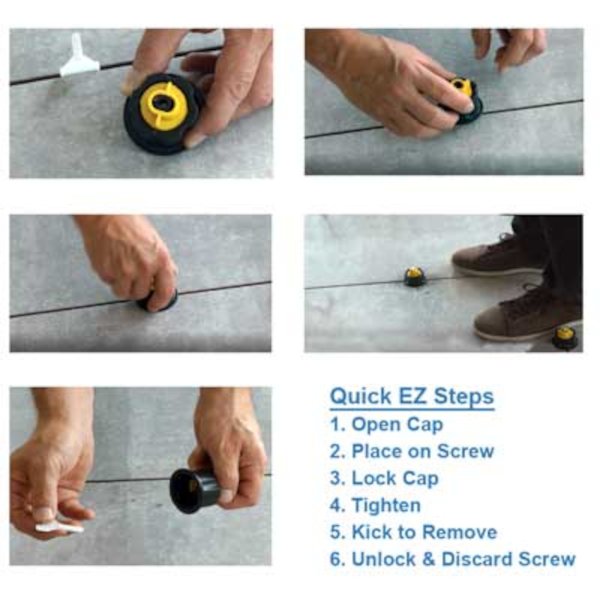

- Tightens by Hand (No Tools Required)
- Minimum Joint Calibration: 1/32″ (1mm)
- Ideal for Both Floor and Wall Tiling

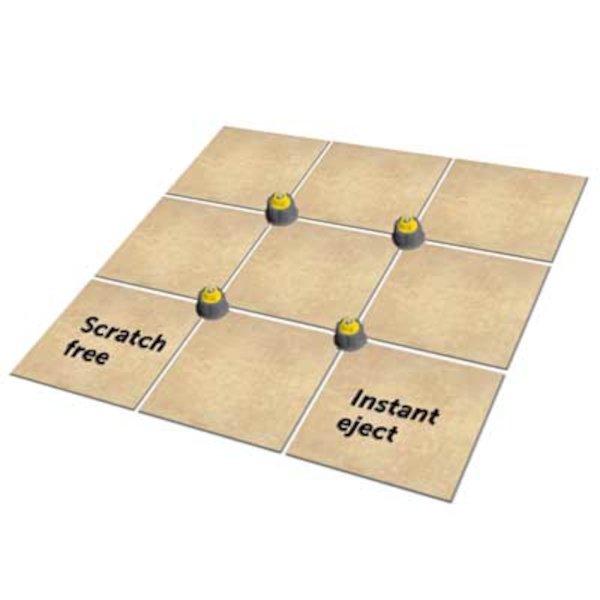

- Proprietary Scratch-Prevention Edge
- Built-in Spacer Calibration: 3/32″ (2mm), 1/8″ (3mm) & 5/32″ (4mm)
- Color Coded Base Screws for Easy Size/Type Identification
- Cap Can Be Re-used More Than 500 Times (compared to others which may only be 8 to 10 times)
- Compatible With Many Older-Generation Systems
- Available by the box. Case quantity is 5 boxes.
- *Patent-Pending Design
Alpha EZ Click Videos
Best Tile Leveling Systems

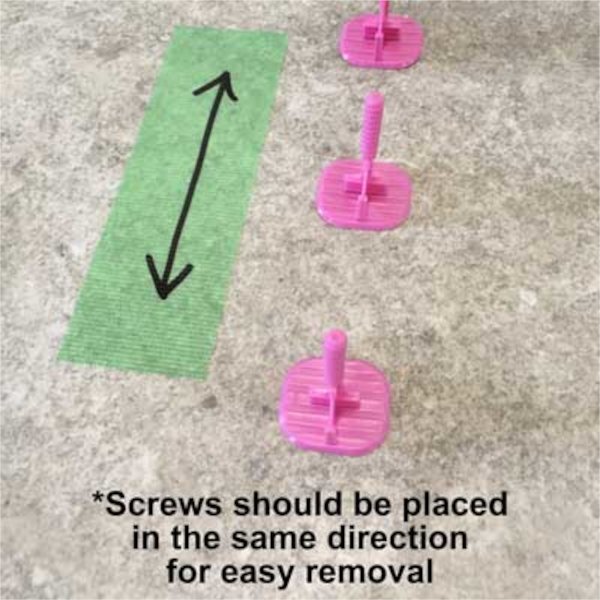

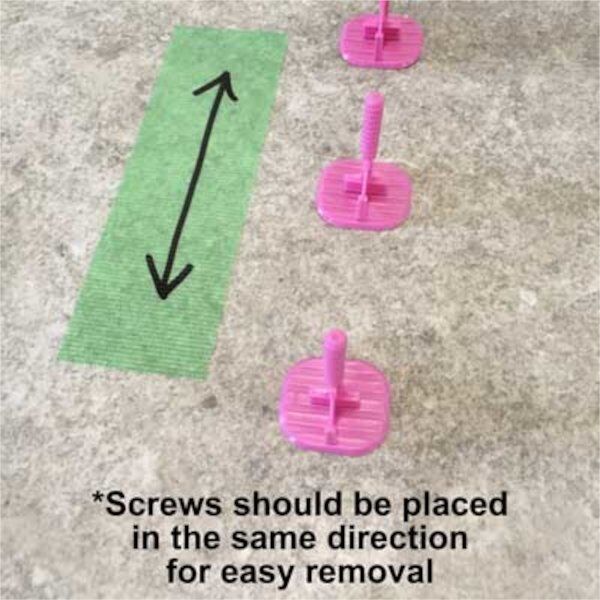

EZ Click Installation Recommendations

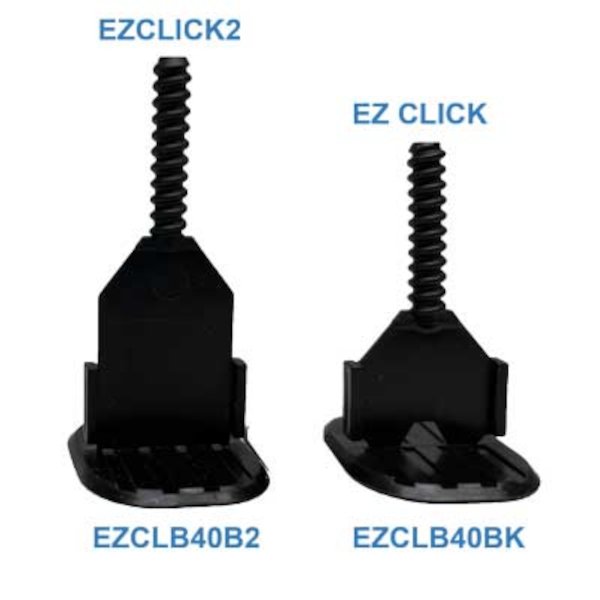

EZ Click2 for Porcelain Paver Tiles

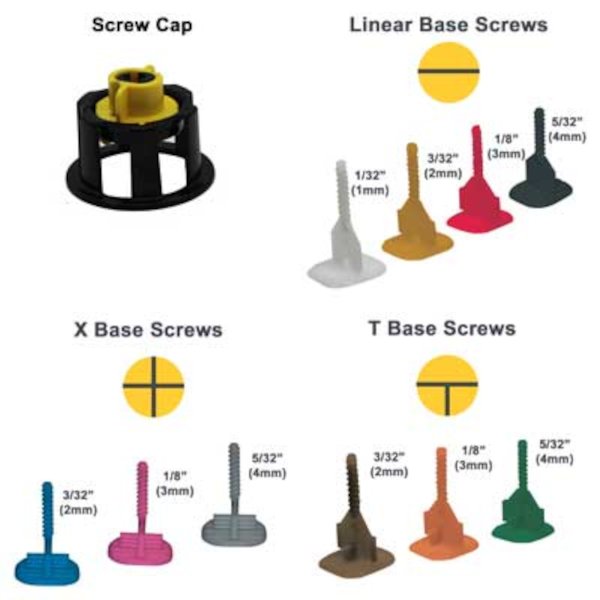

EZ Click Specifications
| Part No. | Size | Type | Color | Qty |
|---|---|---|---|---|

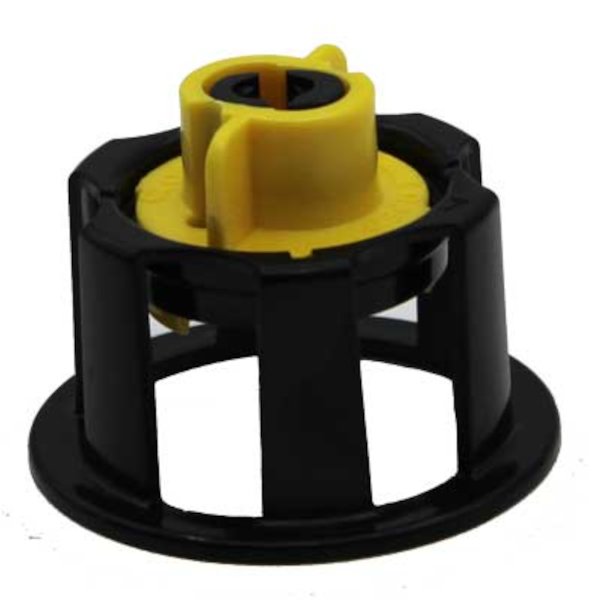

| EZCLICKCP | Screw Cap | 50 | ||

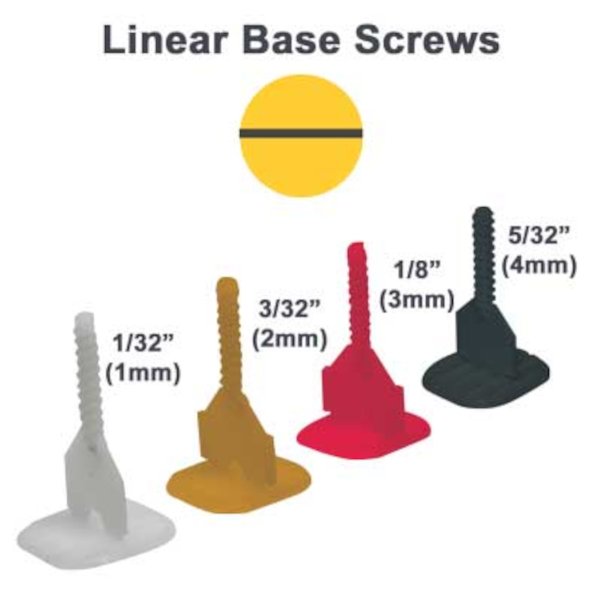

| EZCLB10WH | 1/32″ (1.0mm) | Linear Joint Base Screw | White | 200 |
| EZCLB20YW | 3/32″ (2.0mm) | Linear Joint Base Screw | Yellow | 200 |
| EZCLB30RD | 1/8″ (3.0mm) | Linear Joint Base Screw | Red | 200 |
| EZCLB40BK | 5/32″ (4.0mm) | Linear Joint Base Screw | Black | 200 |

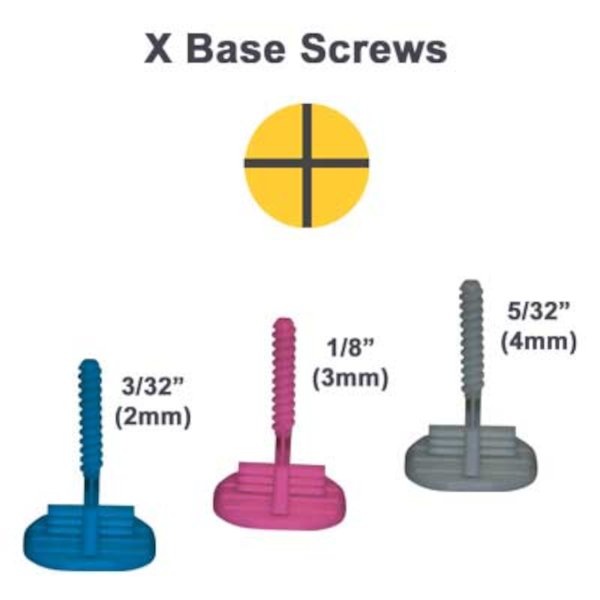

| EZCXB20BL | 3/32″ (2.0mm) | X Joint Base Screw | Blue | 200 |
| EZCXB30VI | 1/8″ (3.0mm) | X Joint Base Screw | Violet | 200 |
| EZCXB40GY | 5/32″ (4.0mm) | X Joint Base Screw | Gray | 200 |

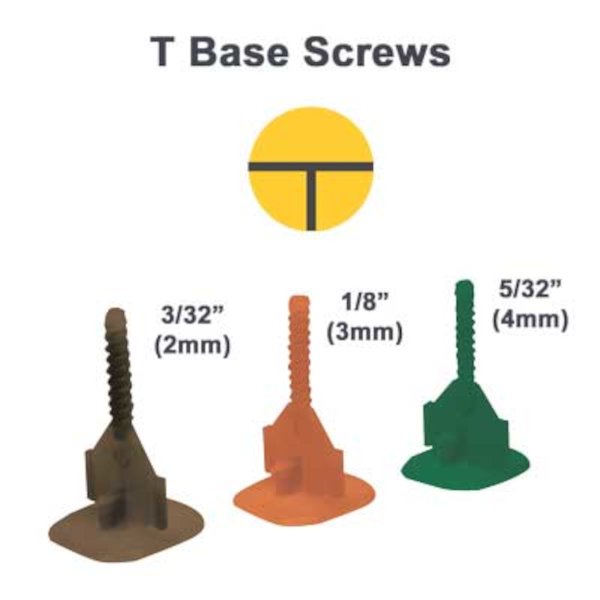

| EZCTB20BR | 3/32″ (2.0mm) | T Joint Base Screw | Brown | 200 |
| EZCTB30OR | 1/8″ (3.0mm) | T Joint Base Screw | Orange | 200 |
| EZCTB40GR | 5/32″ (4.0mm) | T Joint Base Screw | Green | 200 |
Alpha EZ Click Related Documents
| Document Type | Link |
|---|---|
| Flyer | EZ Click System flyer |
| Flyer | EZ Click Comparison Chart |
Additional Information
| PartNo | UPC Code | Pkg. Weight (lbs) | Package Dimensions | Commodity Code | Country Of Origin |
|---|---|---|---|---|---|
| EZCLICKCP | 749173260056 | 2.12 | 14.75in x 3in x 10in | 3925.90.0000 | Italy |
| EZCLB10WH | 749173260063 | 1.34 | 14.75in x 3in x 10in | 3925.90.0000 | Italy |
| EZCLB20YW | 749173260070 | 1.34 | 14.75in x 3in x 10in | 3925.90.0000 | Italy |
| EZCLB30RD | 749173260087 | 1.34 | 14.75in x 3in x 10in | 3925.90.0000 | Italy |
| EZCLB40BK | 749173260094 | 1.34 | 14.75in x 3in x 10in | 3925.90.0000 | Italy |
| EZCXB20BL | 749173260100 | 1.34 | 14.75in x 3in x 10in | 3925.90.0000 | Italy |
| EZCXB30VI | 749173260117 | 1.34 | 14.75in x 3in x 10in | 3925.90.0000 | Italy |
| EZCXB40GY | 749173260124 | 1.34 | 14.75in x 3in x 10in | 3925.90.0000 | Italy |
| EZCTB20BR | 749173260131 | 1.34 | 14.75in x 3in x 10in | 3925.90.0000 | Italy |
| EZCTB30OR | 749173260148 | 1.34 | 14.75in x 3in x 10in | 3925.90.0000 | Italy |
| EZCTB40GR | 749173260155 | 1.34 | 14.75in x 3in x 10in | 3925.90.0000 | Italy |
