U.S. Saws Tuc-Pointer Assembly

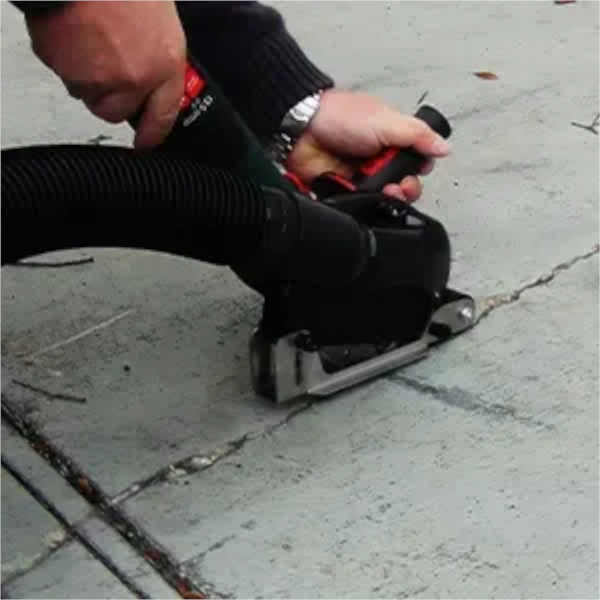

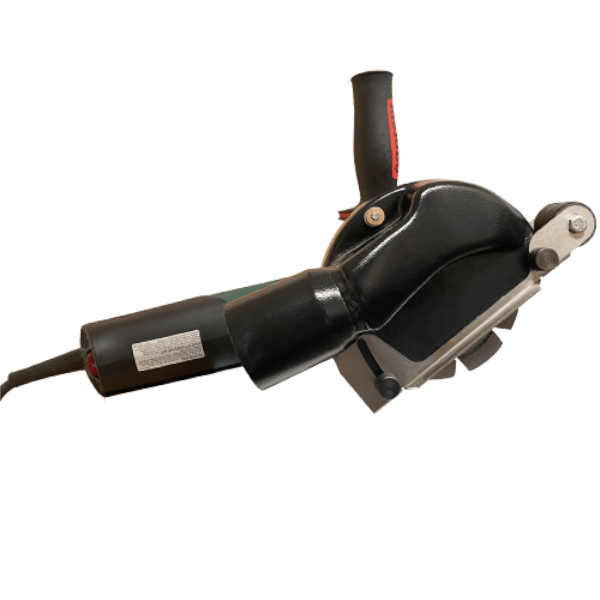

U.S. Saws Tuc-Pointer Assembly is a small, lightweight handheld tuckpointer/crack chaser system designed to rout out random cracks before filling, cut concrete repair patches, clean out joints, and remove mortar or grout joints in areas where larger joint cleanout saws will not fit. It can cut horizontally or vertically and provides up to 1-1/4″ of cutting depth. The Premium model is powered by a Metabo WEV15-125 13.5 Amp variable-speed grinder operating from 2,800 to 9,600 RPM, and can use 4″, 4.5″, or 5″ dry diamond blades, including “V” blades. The assembly includes the grinder, polycarbonate dust collection shroud, and adapter ring.
The full metal blade guard helps protect the operator, while the highly abrasion-resistant polycarbonate dust shroud is designed to withstand abrasive concrete dust and carries a 5-year warranty. The shroud helps provide dust control for a cleaner worksite when used with an optional vacuum system, and the assembly meets OSHA dust collection requirements when used with an approved dust collector. The system is also suitable for heavy-duty, continuous use and repair applications that require dust control.
Main Features
- Handheld tuckpointer/crack chaser assembly
- Small and lightweight design for concrete repair applications
- Routes random cracks before filling
- Cuts concrete repair patches where a dust-free environment is needed
- Suitable for joint cleanout and mortar or grout joint removal
- Works in areas where larger joint cleanout saws cannot fit
- Cuts horizontally or vertically
- Up to 1-1/4″ maximum cutting depth
- Compatible with 4″, 4.5″, and 5″ dry diamond blades, including “V” blades
- Full metal blade guard for operator protection
- Durable, abrasion-resistant polycarbonate dust collection shroud
- Dust shroud backed by a 5-year warranty
- Controls dust when used with an optional vacuum system
- Meets OSHA dust collection requirements when used with an approved dust collector
- Variable-speed grinder suitable for heavy-duty continual use
- Assembly includes grinder, shroud, and adapter ring
Specifications
| Property | Value |
|---|---|
| Part Number | SX55010 |
| Product Type | Hand-Held Tuckpointer/Crack Chaser Assembly |
| Grinder Make/Model | 5″ Metabo WE15-125 |
| Power | 13.5 Amp Electric Variable Speed |
| RPM | 2,800–9,600 |
| Power Requirements | 120 V, 60 Hz |
| Max Cutting Depth | 1-1/4 in |
| Blade Diameter | 4″, 4.5″, or 5″ Dry Diamond |
| Blade Width | .090″, .125″, .250″, .375″ |
| Blade Arbor | 7/8 in |
| Assembly Includes | Grinder, shroud, and adapter ring |
Note: The .090″ and .125″ blade widths require a spacer, sold separately.
