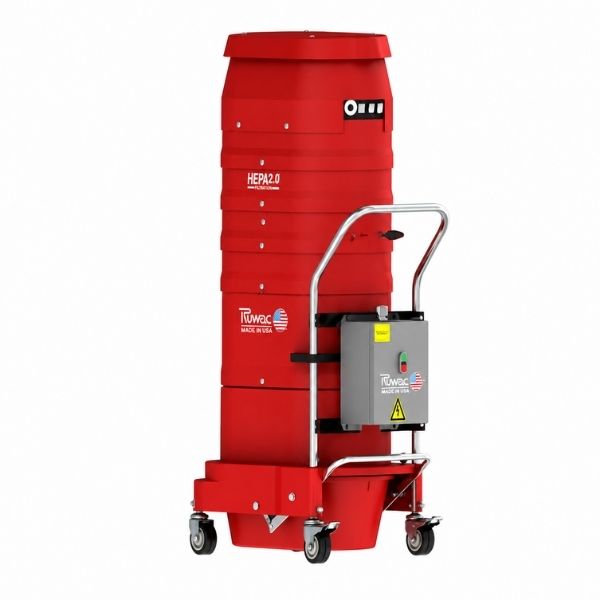

Ruwac Patriot Pro Vacuums

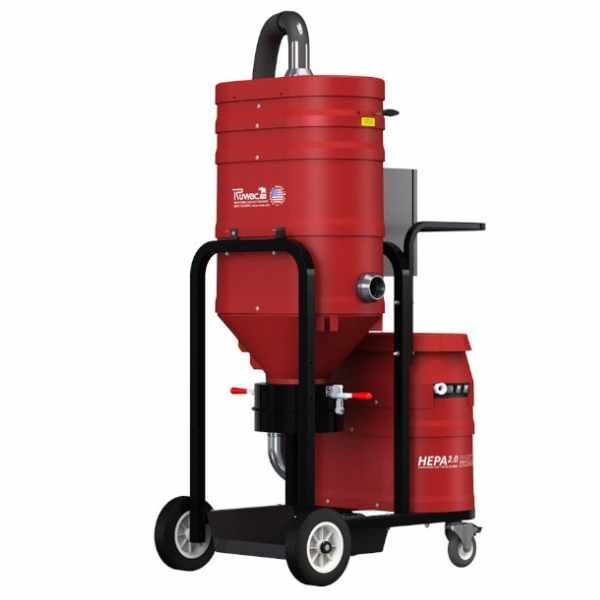

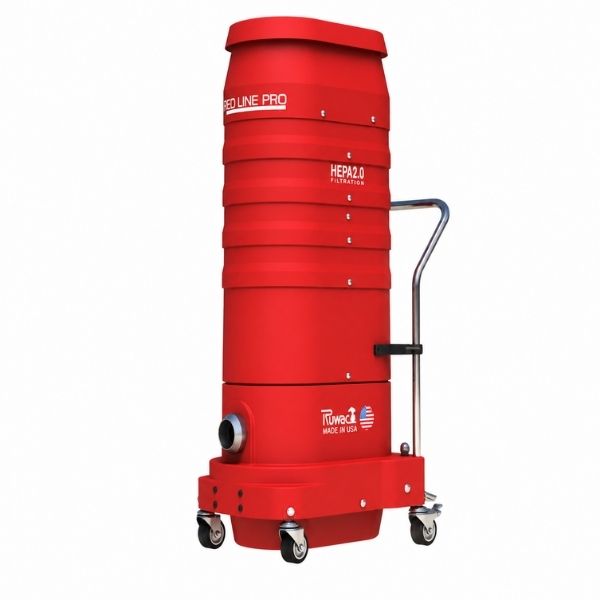

The R470 “Patriot Pro” is Ruwac’s four-motor, 470 CFM single-phase industrial vacuum system. With its mobile design and 220v power, the Patriot Pro is perfect for ample platform Surface Preparation concrete applications. Engineered for durability, the Patriot Pro will be on your job sites for a long time. The Patriot Pro also has a portable Direct Bagger design!
Ruwac Patriot Pro Vacuums Main Features
Equipped with industry-leading MicroClean primary filtration, HEPA 2.0 secondary filtration, and an external filter cleaning mechanism, the Patriot Pro is OSHA-compliant right off the skid!
- Fully grounded to protect against static build-up.
- Durable “Bulletproof” compression cast modular composite housing will never dent or rust — guaranteed for life!
- Industry-leading MicroClean filtration is 99% efficient @ 0.5 Microns — 3-year filter life guarantee!
- Manual filter shaker system allows you to clean the primary filter without having to disassemble your vacuum

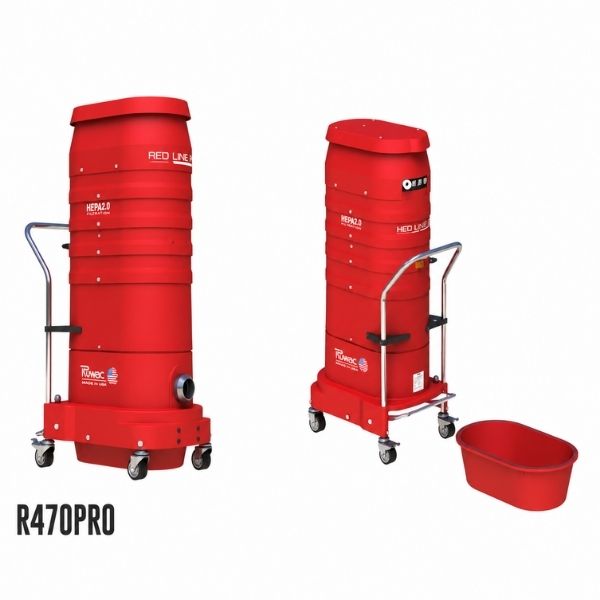

- Easy-to-empty 9-gallon foot-actuated dustpan
- HEPA 2.0 secondary filtration 99.97% efficient @ 0.3 microns
- 3″ heavy-duty casters
- 3-Year Extended Pro-Series Warranty
- OSHA compliant out of the box
Specifications Patriot Pro Vacuums
| Feature | Value |
|---|---|
| MOTOR RATING | (4) 1200 Watt Motors / 6.4 Hp |
| VOLTAGE | 240 Volts |
| AMPS | 24 Amps |
| DUTY CYCLE | Intermittent |
| VACUUM RATING | 97″ H2O |
| VOLUME RATING | 470 CFM |
| PRIMARY FILTER EFFICIENCY | 99% @ 0.5 Micron |
| PRIMARY FILTER AREA | 28 sq. ft. |
| SECONDARY FILTER (HEPA 2.0) | 99.97% @ 0.3 Microns |
| PRIMARY FILTER CLEANING | Heavy Duty Manual Shaker |
| INLET CONNECTION | 2 3/4″ w/ Aluminum Cast Deflector |
| HOUSING MATERIAL | Compression Cast “Bulletproof” Composite Modular Housing |
| RAPID COOL | Advanced “Rapid Cool” Heat Displacement |
| DISTRIBUTION BOX | *Shown with Distribution box with Fused Motor and Auxiliary Protection, 230V, 3-Phase, 80amp |
| CASTERS | 3″ Heavy Duty Non-Marking Double Casters |
| COLLECTION CAPACITY | 9 Gallon |
| COLLECTION PAN RELEASE | Foot Lever-Activated Release Bar |
| POWER CABLE | 30 ft. High Visibility Yellow Cord |
