National Silver Vein Floor Scraper

$36,887.46$50,993.97

This hydraulic design provides the scraper with consistent and continuous torque resulting in more productivity and higher removal rates

SKU: N/A Category: Tag:

Model 5625

This propane-powered scraper sets the operational standard for high removal rates; unlike scrapers powered using a hydrostat drive system, National’s 5625 benefits from both the speed and power of a hydraulic drive. This hydraulic design provides the scraper with consistent and continuous torque, resulting in higher productivity and removal rates. The 25 hp, liquid-cooled Kawasaki engine is re-engineered with National’s exclusive catalytic design adjustable slide plate to afford maximum versatility in blade settings, operating in conjunction with the adjustable slide plate. The swivel head action of the blade holder ensures the scraper’s continuous blade contact with the floor. the The precise hydraulic steering system enables tight maneuvering and zero turn radius safety; the scraper is equipped with an automatic kill switch, so it will not function without a person in the operator seat equipped with non-marking tiresThe compact design enables this scraper to fit through standard door frames and most passenger and freight elevators, the ergonomic design is comprised of moveable foot pegs and an adjustable slide plateNational Flooring Equipment Floor Scraper, Ride-On, 26 Inch Working Width, 200 fpm Ground Speed, 25 hp, 370 lb Front, 75 lb Rear Removable Weight, 63 Inch Length x 26 Inch Width x 52-1/4 Inch Height.

Model 5625 Main Features

  • An automatic kill switch is triggered when the operator seat is vacant
  • The liquid-cooled Kawasaki engine is re-engineered with National’s exclusive catalytic design for the industry’s lowest emissions
  • The front debris deflector protects the machine from loose material
  • Ergonomic design includes movable foot pegs, taller handles, and an adjustable seat and armrests that allow for optimal operator comfort and the best possible line of sight
  • Hinged hood system for easy-access maintenance
  • Precise hydraulic steering for maneuvering in tight spaces, zero turn radius, and continuous torque for higher removal rates and greater productivity
  • Quick-change swivel head blade holder
  • Optional dual-lift, hydraulic slide plate adjusts blade pitch and angle for continuous contact with the floor
  • Larger/deepened forklift pockets
  • Nonmarking tires
  • The compact design fits through standard door frames and elevator doors
  • Improved exhaust system meets federal OSHA regulations
  • Front caster wheels allow increased maneuverability in tight spaces
  • 12-volt LED light for increased visibility on the job site

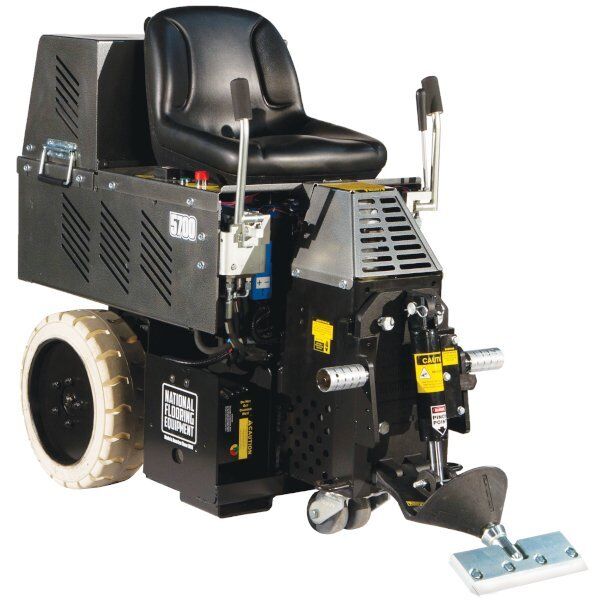

Model 5700

The 5700 is National’s premium All Day Battery Ride-On scraper. This machine powers through an average eight-hour day without requiring a battery recharge or electrical cord assistance. The 5700’s built-in charging system is designed to be versatile, with the ability to plug into any outlet. This battery-powered unit is ideal for indoor use because it produces no harmful fumes or hazardous bi-products. With the machine’s weights removed, the 5700 will fit in residential elevators and is even narrow enough to work in a 34-inch door, making this versatile machine ideal for operation on almost any job site!

Model 5700 Main Features

  • Emissions-free operation for 8 – 12 hours on a single battery charge
  • AGM (Absorbed Glass Matt) batteries charge using an onboard charging system powered by 115 volts, providing contractors with 100% power, speed, and torque for 90% of the batteries run cycle
  • Benefits from both the speed and power of a hydraulic drive, which is designed to provide consistent and continuous torque resulting in more productivity and higher removal rates
  • Adjustable slide plate affords maximum versatility in blade settings
  • The swivel head action of the blade holder assures the scraper blade makes continuous contact with the floor
  • A precise hydraulic steering system enables tight maneuvering and a zero-turn radius
  • Equipped with an automatic kill switch for safety
  • Weight-sensitive ignition means the machine will not function without someone in the operator’s seat.
  • Light empty weight of less than 2100 lbs.
  • The compact design lets it fit through standard door frames and most residential and commercial elevators.
  • Ergonomic design with moveable foot pegs and an adjustable seat correct operator’s position to provide optimal comfort and line of sight
  • Largest selection of compatible scraper blades in the industry
  • Equipped with easily accessible forklift slots and non-marking tires
  • The automatic kill switch is triggered when the operator seat is vacant
  • Larger/deepened forklift pockets
  • E-stop knob for safety
  • The debris deflector protects the machine from loose material
  • Ergonomic design includes movable foot pegs, taller handles, and an adjustable seat
  • Hinged hood system for easy access maintenance
  • Precise hydraulic steering for maneuvering in tight spaces, zero turn radius
  • Quick-change swivel head blade holder
  • Optional dual-lift, hydraulic slide plate adjusts blade pitch and angle for continuous contact with the floor.
  • Nonmarking tires
  • Twelve AGM 180-amp hour batteries provide 100 percent power, speed, and torque for 90 percent of the batteries’ run cycle
  • The compact design fits through standard door frames and elevator doors
  • Front caster wheels allow increased maneuverability in tight spaces
  • LED light for increased visibility

Included with the 5700

  • 5110-100: Transport Wheels
  • 402929: 3/4 x 1-1/8 Wrench
  • 73507-1: 7ft extension cord

Kit 5175 includes:

  • 6277-BU: 45 degree, 3″ x 12″ self-scoring, bevel up
  • 6284: 3″ x 12″ heavy-duty blade
  • 7050-12: 12″ cutting head
  • 7079-2: 2″ x 6″ angle shank w/ carbide tip
  • One-year manufacturer’s warranty on parts and labor

Model 7700

Powered by 12 200-amp hour batteries that exceed the industry standard, this machine is everything you need it to be. More significant, heavier, and faster than the 5700, it is designed to remove complex material and is built to operate on almost any job site.

Model 7700 Main Features

  • An automatic kill switch is triggered when the operator seat is vacant
  • E-stop knob for safety
  • Larger/deepened forklift pockets
  • The front debris deflector protects the machine from loose material
  • Ergonomic design includes movable foot pegs, taller handles, and an adjustable seat that allows for optimal operator comfort and the best possible line of sight
  • Hinged hood system for easy-access maintenance
  • Precise hydraulic steering for maneuvering in tight spaces, zero turn radius, and continuous torque for higher removal rates and greater productivity
  • Quick-change swivel head blade holder
  • Dual-lift, hydraulic slide plate adjusts blade pitch and angle for continuous contact with the floor; standard on 7700
  • Nonmarking tires
  • AGM (Absorbed Glass Mat) batteries provide 100 percent power, speed, and torque for 90 percent of the batteries’ run cycle
  • The compact design fits through standard door frames and elevator doors
  • Heavy-duty 3000 PSI wheel motors
  • Front caster wheels allow increased maneuverability in tight spaces
  • LED light for increased visibility on the job site

Specifications Model 7700

  • Power Supply: Battery
  • Width: 29.5″
  • Height: 50″
  • Length: 63″
  • Weight: 2757 lb
  • Removable Weight: 185 lb front
  • Weight (machine only): 2572 lb
  • Speed: up to 200 ft/min
  • Voltage: 115
  • Frequency: 60Hz

Included with the 7700

  • 5110-100: Transport Wheels
  • 402929: 3/4 x 1-1/8 Wrench
  • 73507-1: 7ft extension cord

Kit 5175 includes:

  • 6277-BU: 45 degree, 3″ x 12″ self-scoring, bevel up
  • 6284: 3″ x 12″ heavy-duty blade
  • 7050-12: 12″ cutting head
  • 7079-2: 2″ x 6″ angle shank w/ carbide tip
  • One-year manufacturer’s warranty on parts and labor
WeightN/A
DimensionsN/A
Select Model

National 5625, National 5700, National 7700

Brand

National Flooring Equipment
