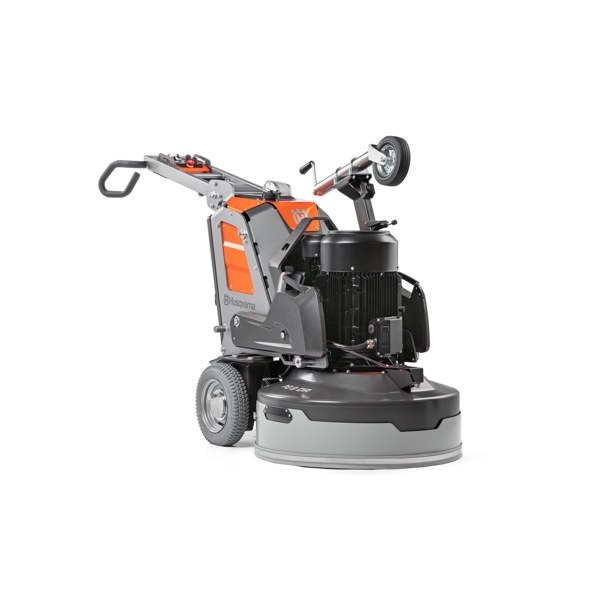

Husqvarna PG 8 DR Floor Grinder
The Husqvarna PG 8 DR prepares, grinds and polishes concrete and stone floors using remote control and Dual Drive Technology. This 970605305 configuration operates on three-phase 440-480V power with 15+1.5 kW output. The 31.5 in grinding width suits large floor preparation jobs.
Features
- Independent speed and direction control for grinding discs and drum.

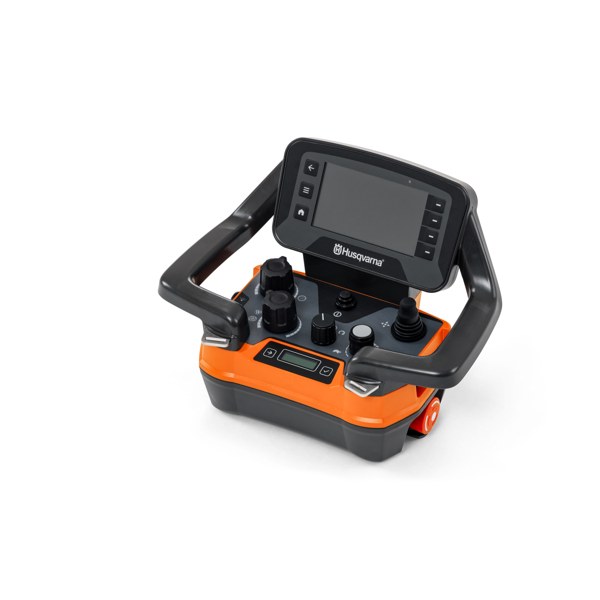

- Remote unit displays power consumption, incoming current and motor RPM.
- Mist cooler helps cool diamond tools and reduce glazing.
- Integrated weights adjust grinding pressure.
- EZchange Airflow holders assist tool cooling and dust collection.
- Sealed grinding head, protected cabinet and folding transport wheel.
Technical Specifications
| Manufacturer part number | 970605305 |
|---|---|
| Supplier item number | 2615-7469 |
| Power supply | 440-480V, three phase, 50-60 Hz |
| Power | 15+1.5 kW / 22.1 hp total |
| Rated current | 30 A |
| Grinding width | 31.5 in / 800 mm |

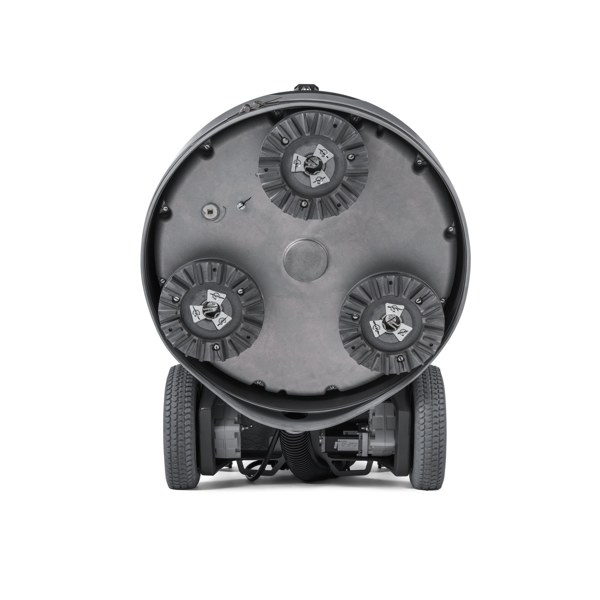

| Grinding discs | 3; 10.6 in diameter |
| Disc speed | 420-1,176 RPM |
| Machine dimensions (L x W x H) | 53.4 x 33 x 44.8 in |
| Machine weight | 1,457 lb |
| Shipping dimensions (L x W x H) | 62.99 x 35.43 x 57.87 in |
| Shipping weight | 1,481.51 lb |
Options and Ordering
LED lights, water kit and remote harness are optional. Confirm availability and tooling before ordering. Freight shipping applies.
Browse USA Granite Tools or consult the manufacturer product information.
