STI TPS Diamond System

STI TPS Diamond System

STI TPS Diamond System is a complete diamond grinding and polishing system engineered specifically for new epoxy terrazzo floors. Designed exclusively for Prep/Master® floor grinders, this coordinated system combines metal-bond grinding tools, a patent-pending grout pan, and resin-bond polishing tools to guide the floor through every stage—from aggressive aggregate exposure to a high-gloss polished finish. Each tool is color-coded orange for quick identification, ensuring operators always follow the correct polishing sequence for consistent, repeatable results.

The TPS System follows a defined seven-step process plus the intermediate grout stage: Steps #1–#3 are run dry to grind the terrazzo and expose the aggregate; Step #3.5 uses the stainless steel grout pan with epoxy and marble flour to fill pinholes before curing for at least 8 hours, and Steps #4–#7 are performed wet to refine and polish the surface. Designed for new epoxy terrazzo that is at least 8 hours old, the system delivers professional-quality finishes while maximizing tooling life. For best results, STI recommends performing a 100 sq. ft. mock-up before beginning a full installation and ensuring complete aggregate exposure with Tool #1 before advancing through the remaining steps.

Recommended Conditions

• Designed exclusively for new epoxy terrazzo floors.
• Floor should cure for at least 8 hours before beginning the process.
• Perform a 100-sq.-ft. mock-up before polishing the entire floor.
• Tool #1 must achieve full aggregate exposure before moving to finer steps.

Main Features

• Complete diamond polishing system developed specifically for new epoxy terrazzo
• Seven-step grinding and polishing sequence plus patent-pending grout pan stage
• Color-coded orange tooling for easy system identification
• Metal-bond tools with patented EG attachment system
• Wet and dry operating sequence for optimized polishing performance
• Delivers consistent, repeatable high-gloss terrazzo finishes
• Long-life diamond tooling for increased productivity
• Compatible with all STI Prep/Master® floor grinders

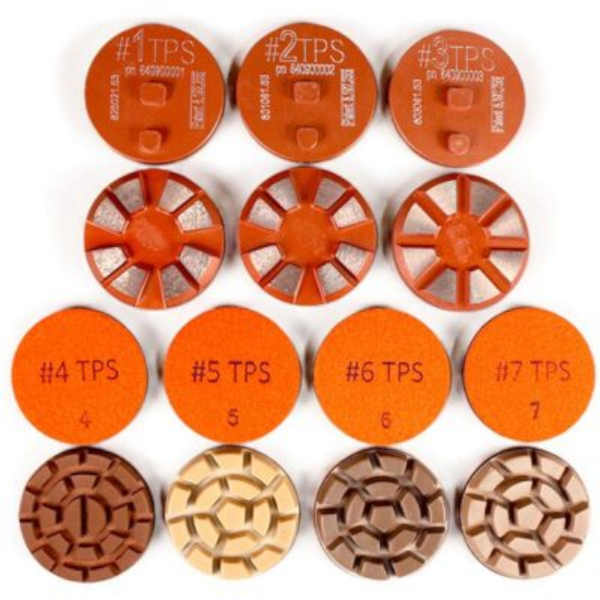

System Components

• TPS #1: Dry metal-bond first-cut tool with patented EG attachment for aggressive aggregate exposure. Approximate life: 12,000 sq. ft. (15,500 sq. ft. on Prep/Master® 4430).
• TPS #2: Dry metal-bond grinding tool with patented EG attachment. Approximate life: 30,000 sq. ft. (40,000 sq. ft. on 4430).
• TPS #3: Dry metal-bond grinding tool with patented EG attachment. Approximate life: 30,000 sq. ft. (40,000 sq. ft. on 4430).
• TPS #4: Wet resin-bond polishing tool with orange Velcro backing. Approximate life: 15,000 sq. ft. (20,000 sq. ft. on 4430).
• TPS #5–#7: Wet resin-bond polishing tools with orange Velcro backing. Approximate life: 15,000 sq. ft. each (20,000 sq. ft. each on 4430).
