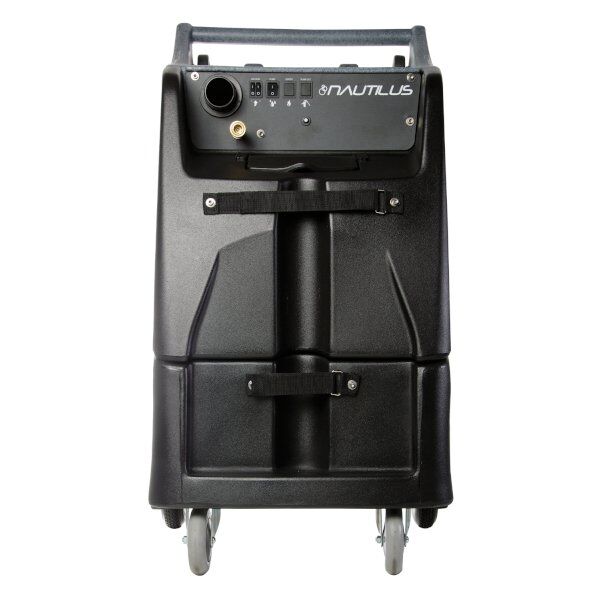

MX3 500 & MX3 1200
Series for maximum lift or parallel for maximum airflow with the AirFlow+ vacuum system; it’s your call!
The AirFlow+ vacuum system allows you to change your vacuum motors quickly from a series configuration to a parallel configuration in under a minute with no mechanical skill needed.
Whether you’re extracting flood water and need maximum lift or cleaning tile and need maximum airflow, the Nautilus has you covered.
Low monthly payments are available. Contact your distributor for more information.
The Nautilus portable extractor achieved Platinum Certification from the Carpet and Rug Institute (CRI). The Platinum Certification is the highest designation available from CRI and highlights the superior cleaning and water extraction achieved with a Nautilus portable extractor.
Specifications MX3 500
- Two 3-stage vacuum motors
- 500 PSI solution pump
- 1750 Watt Heater
- 12″ rear wheels and 5″ casters
- Roto-molded polyethylene body
- 12 gal. solution and waste tank
- Dimensions: 42″ H x 34″ L x 23″ W
- 136 lbs.
Standard Items MX3 500
- Two 25′ extension cords
- AH224 2″ Flash Cuff starter
- AH201 2″-1.5″ Flash Cuff reducer
Hose Package Includes MX3 500
- AW29 stainless steel 2-jet wand
- 25′ of vacuum hose
- 25′ of high-pressure solution hose w/QCs
- Hydro-Force shoulder carry bag
- Vinyl reducer cuff
Specifications MX3 1200
- Two 3-stage vacuum motors
- 1,200 PSI solution pump
- 12″ rear wheels and 5″ casters
- Roto-molded polyethylene body
- 12 gal. solution and waste tank
- Dimensions: 42″ H x 34″ L x 23″ W
- 160 lbs.
Standard Items MX3 1200
- Auto Fill
- Auto Pump Out (3/4″ x 50′ pump out hose included)
- Two 25′ extension cords
- AH224 2″ Flash Cuff starter
- AH201 2″-1.5″ Flash Cuff reducer
Hose Package Includes MX3 1200
- Hydro-Filter
- 25′ of vacuum hose
- 25′ of high-pressure solution hose w/QCs
- 4 Vinyl cuffs
- 3/4″ x 50′ pump-out hose
- 3/8″ x 50′ auto-fill hose
- *1200 PSI hose packages do not include a carpet wand
Vacuum Motor Specifications for Series and Parallel Configurations
| Item # | CFM Ratings | Lift Ratings (inH20) | Max Air Watts |
|---|---|---|---|
| MX200M | Series: 97CFM | Series: 130.9 | 250 |
| Parallel: 194CFM | Parallel: 81.8 | ||
| MX200HM | Series: 97CFM | Series: 130.9 | 250 |
| Parallel: 194CFM | Parallel: 81.8 | ||
| MX3-200M | Series: 99CFM | Series: 187.8 | 368 |
| Parallel: 198CFM | Parallel: 117.4 | ||
| MX3-200HM | Series: 99CFM | Series: 187.8 | 368 |
| Parallel: 198CFM | Parallel: 117.4 | ||
| MX500M | Series: 97CFM | Series: 130.9 | 250 |
| Parallel: 194CFM | Parallel: 81.8 | ||
| MX500HM | Series: 97CFM | Series: 130.9 | 250 |
| Parallel: 194CFM | Parallel: 81.8 | ||
| MX3-500M | Series: 99CFM | Series: 187.8 | 368 |
| Parallel: 198CFM | Parallel: 117.4 | ||
| MX3-500HM | Series: 99CFM | Series: 187.8 | 368 |
| Parallel: 198CFM | Parallel: 117.4 | ||
| MX1200M | Series: 97CFM | Series: 130.9 | 250 |
| Parallel: 194CFM | Parallel: 81.8 | ||
| MX3-1200M | Series: 99CFM | Series: 187.8 | 368 |
| Parallel: 198CFM | Parallel: 117.4 | ||
| MXE-200M | Series: 142CFM | Series: 235 | 673 |
| Parallel: 284CFM | Parallel: 147 | ||
| MXE-500M | Series: 142CFM | Series: 235 | 673 |
| Parallel: 284CFM | Parallel: 147 |
