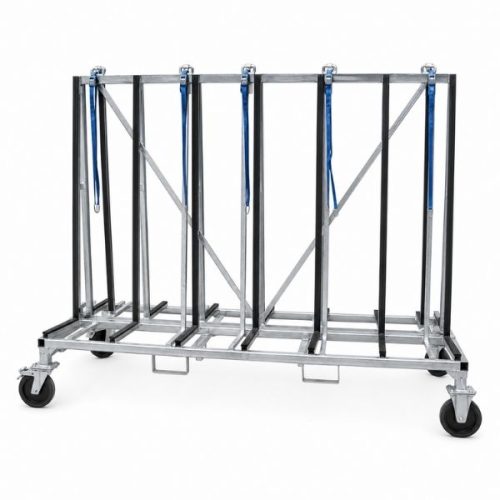

Weha Shorty A-Frame Cart Double Sided

$1,234.89

Weha Shorty A-Frame Cart Double Sided granite transport A-Frame Rack is stout at 78″ × 32″ × 33″, specifically designed to transport granite and stone countertops.

SKU: 8010487 Category:

Frequently Bought Together

Weha Shorty A-Frame Cart Double Sided + Weha Transport Cart Wheels + Weha Roll Block for Transport Carts + Weha Backsplash Attachment Set
Price for all: $1,864.65

Weha Shorty A-Frame Cart Double Sided

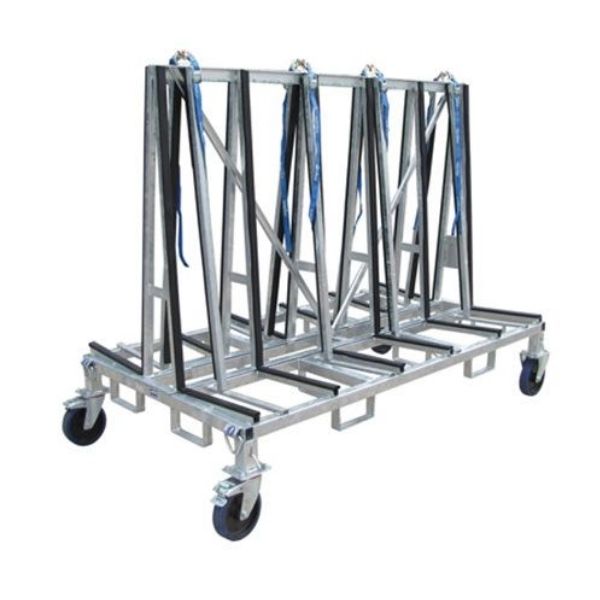

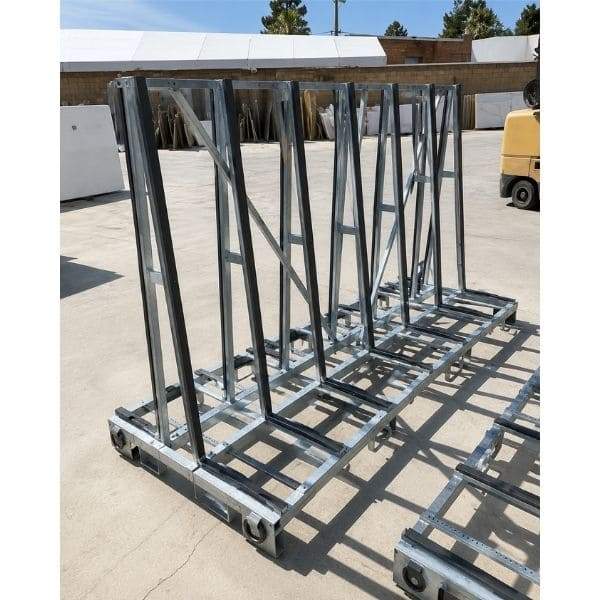

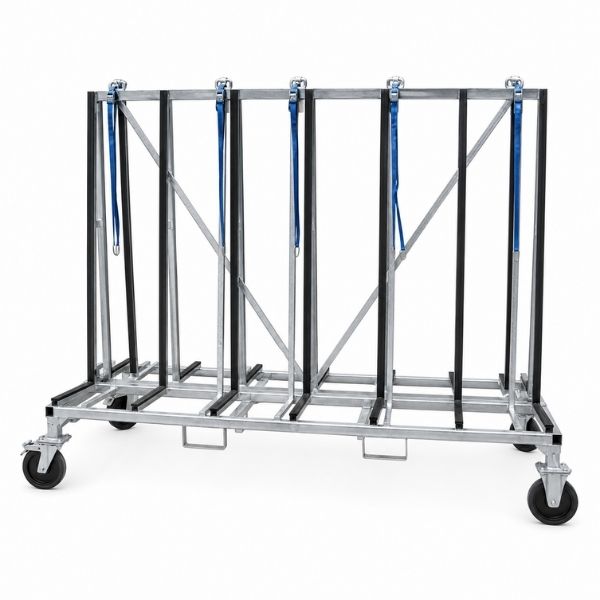

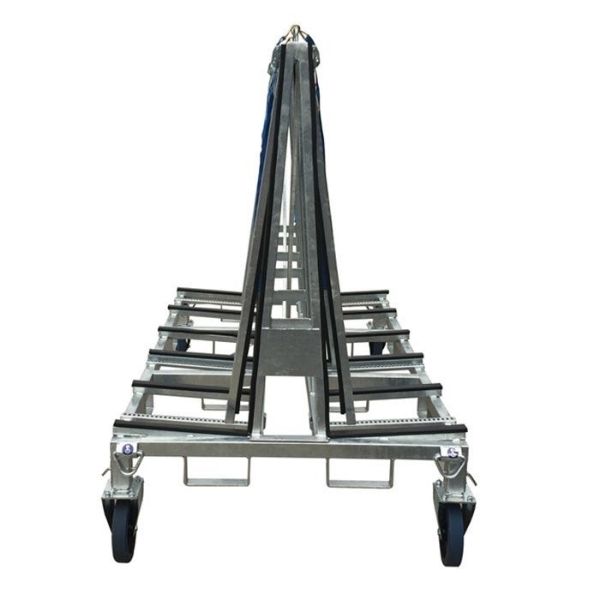

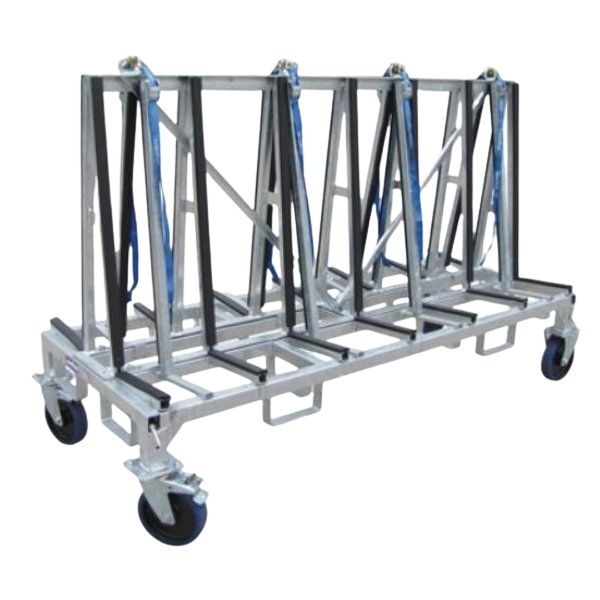

Weha Shorty A-Frame Cart Double Sided granite transport A-Frame Rack is stout at 78″ × 32″ × 33″, specifically designed to transport granite and stone countertops. With only a total height of 42” and a stone load height of 34″, it is perfect for any standard width to transport granite and stone countertops to the job site The best part about this mobile granite transport A-frame Cart is that it is only 32” wide.

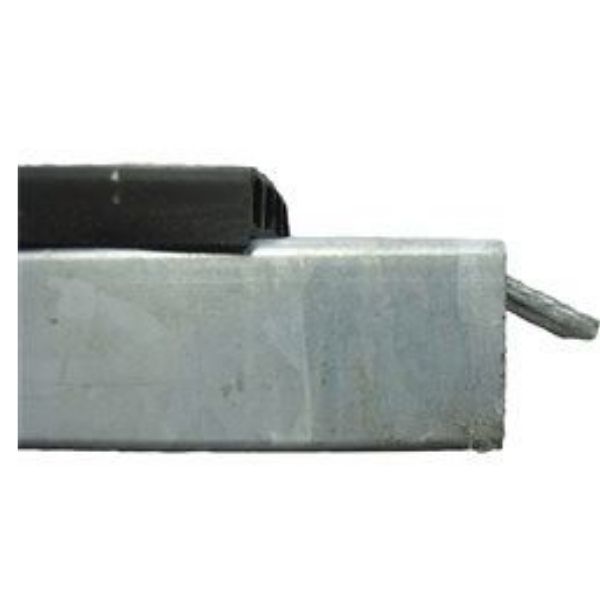

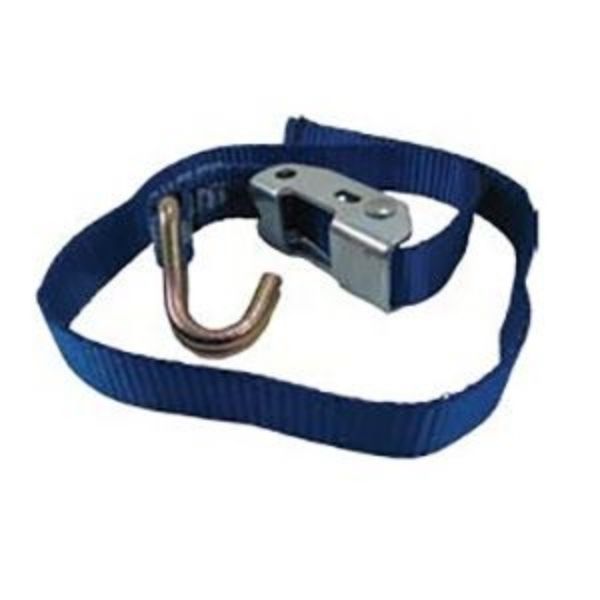

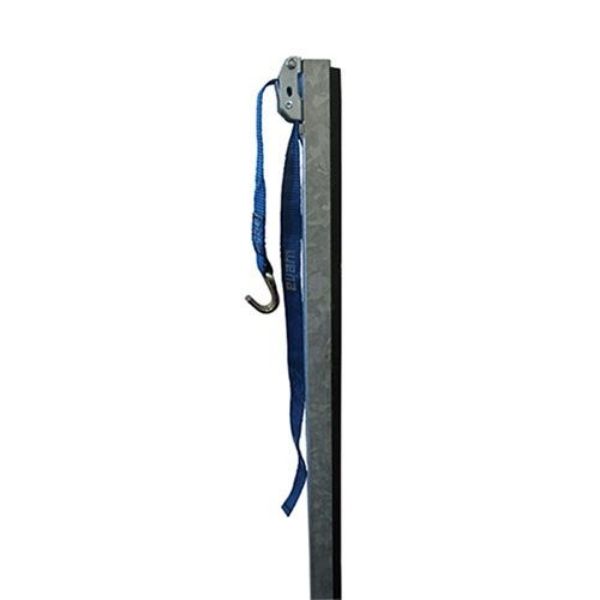

The Weha Shorty is a Double Sided Kitchen Transport Cart that comes with forklift receivers to easily load into the back of a pickup truck. The base and uprights come with replaceable rubber to prevent scratches. The Weha Shorty Granite A-frame Transport Cart comes with 8 (4 per side) upright and tie-down straps for secure transport.

You might also want to take a look at our other Transport Frames by Weha.

Why Galvanization is Better than Painted A-Frames

Hot-Dip Galvanizing vs. Paint

PropertyHot-Dip GalvanizingPaint
Barrier & Cathodic Corrosion ProtectionYesNo
Bond Strength to Steel~3,600psi~400psi
Abrasion ResistantYesNo
Interior & Exterior Coating Coverage on Hollow StructuresYesNo

Service Life/Durability(a)

LocationHot-Dip Galvanized SteelInorganic Zinc-Rich Paint
Rural>100 years(b)27 years(c)
Urban90 years17 years
Industrial70 years12 years
Marine50 years12 years

(a)To 5% rust on substrate level
(b)Zinc Coating Life Predictor, Zhang, 2001
(c)NACE Paper 06318, Hesel, Melampy, Wissmar, 2006

  1. Most economical: Galvanized steel is often the least expensive initial choice. As other labor-intensive coatings have risen in rates, galvanizing has maintained a consistent price point. Moreover, it lasts longer and requires less maintenance, making it the most cost-effective, long-term option.
  2. Maintenance-free: Galvanizing provides maintenance-free corrosion protection, unlike other protective coatings. This mitigates long-term costs, hassles, and disruptions to production.
  3. Longest lifespan: Galvanized coatings on typical structural members have a life expectancy in excess of 100 years.
  4. Most durable: A galvanized coating has a unique metallurgical structure, providing outstanding resistance to damage during transport, erection, and service.
  5. Most reliable performance: Galvanizing is carried out to ASTM A123 and standard, minimum coating thicknesses are applied. Coating life and performance are reliable and predictable as their performance is based on the known corrosion rate of zinc. Galvanized steel provides a thick, complete, and easily inspected coating.
  6. Most protection: Galvanizing protects every part of a structure, including recesses, sharp corners, and inaccessible areas.
  7. Environmental Sustainability: Zinc, like steel, is a natural substance that is recyclable.


Technical Information for Weha Shorty A-Frame Cart Double Sided

PropertyValue
Width of Contact16″
Load Capacity4410 (2205 lbs per side)
Weight300 lb
Dimension78″ (L) 32″(W) 42″(H)
Note: Wheels sold separately

Demonstration Videos

In the following Videos, you will see Weha Shorty Granite Transport Double-Sided A-Frame Cart Rack, Weha Replacement Parts/Benefits/Features of A-Frames, Weha Upright & Straps for Double-Sided A-Frame Shorty, and Weha Double-Sided A-Frame Assembly Video


Weight300 lbs
Dimensions78 × 32 × 42 in
