Weha Large Single Side A-Frame Cart

Weha Large Single Side A-Frame Cart

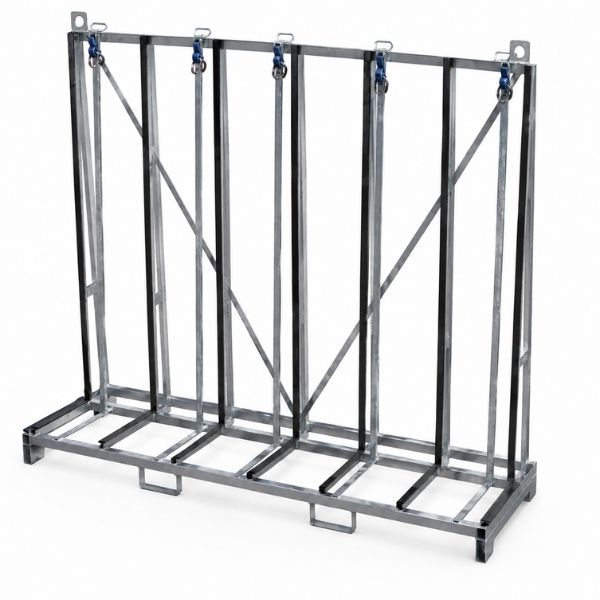

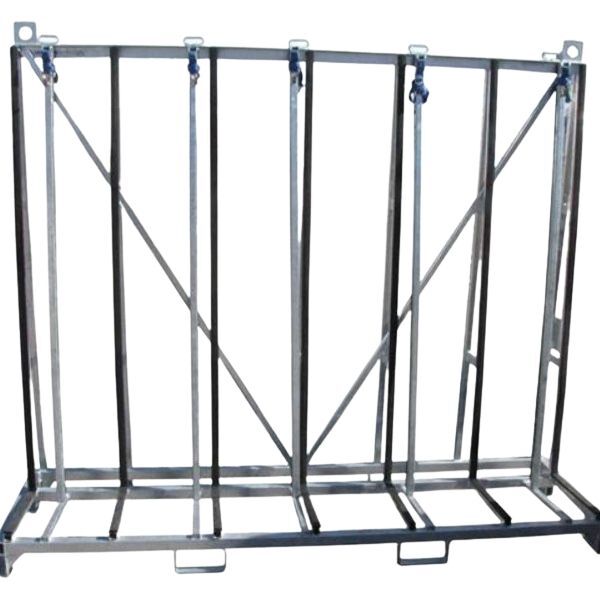

The Weha Large Single Side A-Frame Cart is excellent for transporting finished granite and stone countertops and islands in box vans. The backside of the Cart can be placed flat against the walls, leaving plenty of room to load the vans as well as access tools throughout the truck. The Weha Transport Cart is also excellent in the shop near bridge saws or CNC machines. It can be placed right against the wall and be used for storing scheduled jobs.

You might also want to take a look at our other Transport Frames by Weha.

Product Features

Among the main features of this product, we find:

• Forklift Receivers
• 5 Upright poles with straps for locking in and securing the stone during transport or for shop safety storage.

Why Galvanization is Better than Painted A-Frames

Hot-Dip Galvanizing vs. Paint

Property	Hot-Dip Galvanizing	Paint
Barrier & Cathodic Corrosion Protection	Yes	No
Bond Strength to Steel	~3,600psi	~400psi
Abrasion Resistant	Yes	No
Interior & Exterior Coating Coverage on Hollow Structures	Yes	No

Service Life/Durability^(a)

Location	Hot-Dip Galvanized Steel	Inorganic Zinc-Rich Paint
Rural	>100 years(b)	27 years(c)
Urban	90 years	17 years
Industrial	70 years	12 years
Marine	50 years	12 years

^(a)To 5% rust on substrate level
^(b)Zinc Coating Life Predictor, Zhang, 2001
^(c)NACE Paper 06318, Hesel, Melampy, Wissmar, 2006

1. Most economical: Galvanized steel is often the least expensive initial choice. As other labor-intensive coatings have risen in rates, galvanizing has maintained a consistent price point. Moreover, it lasts longer and requires less maintenance, making it the most cost-effective, long-term option.
2. Maintenance-free: Galvanizing provides maintenance-free corrosion protection, unlike other protective coatings. This mitigates long-term costs, hassles, and disruptions to production.
3. Longest lifespan: Galvanized coatings on typical structural members have a life expectancy in excess of 100 years.
4. Most durable: A galvanized coating has a unique metallurgical structure, providing outstanding resistance to damage during transport, erection, and service.
5. Most reliable performance: Galvanizing is carried out to ASTM A123 and standard, minimum coating thicknesses are applied. Coating life and performance are reliable and predictable as their performance is based on the known corrosion rate of zinc. Galvanized steel provides a thick, complete, and easily inspected coating.
6. Most protection: Galvanizing protects every part of a structure, including recesses, sharp corners, and inaccessible areas.
7. Environmental Sustainability: Zinc, like steel, is a natural substance that is recyclable.

Rubber Replacement & Uprights

To completely replace the rubber for the entire cart and replacement poles, it requires 81′ of Black Weha Replacement Rubber or White Weha Replacement Rubber.

Demonstration videos

Technical Specifications

Property	Value
Width of Contact	16″
Load Capacity	2,205 lbs.
Weight	242 lbs.
Dimensions	94″ (L) x 25″ (W) x 71″ (H)
