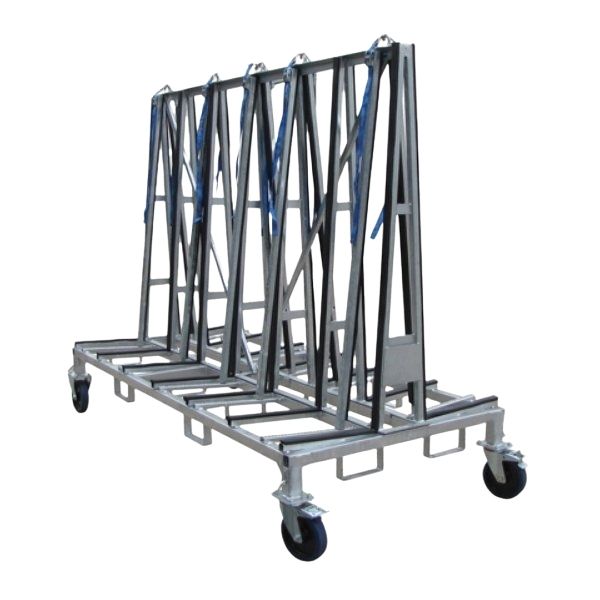

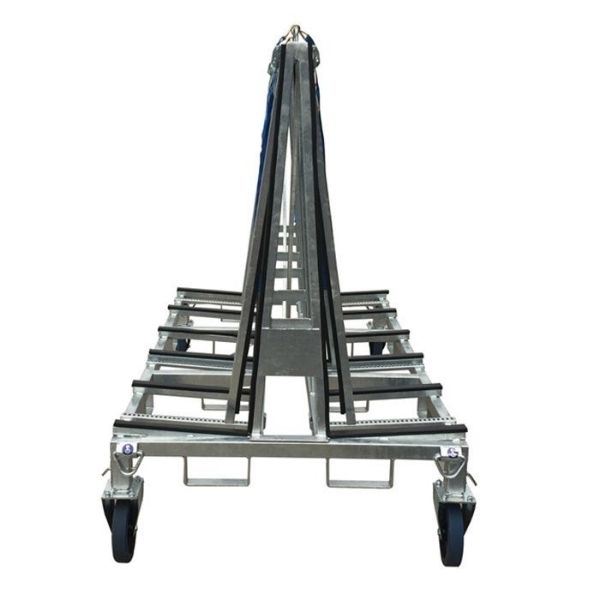

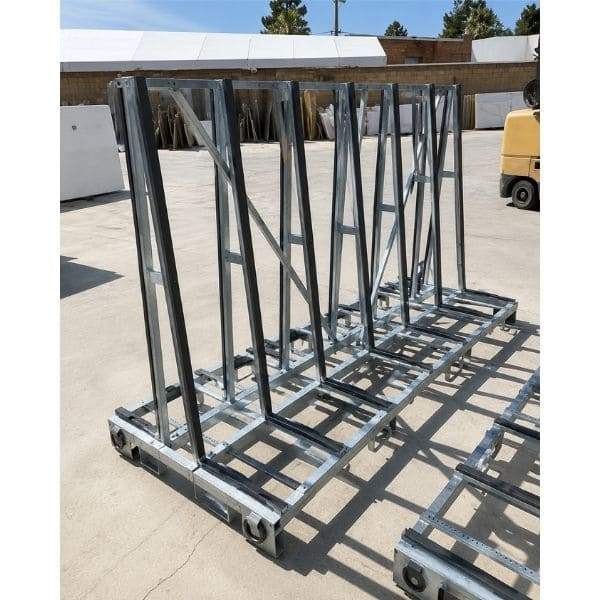

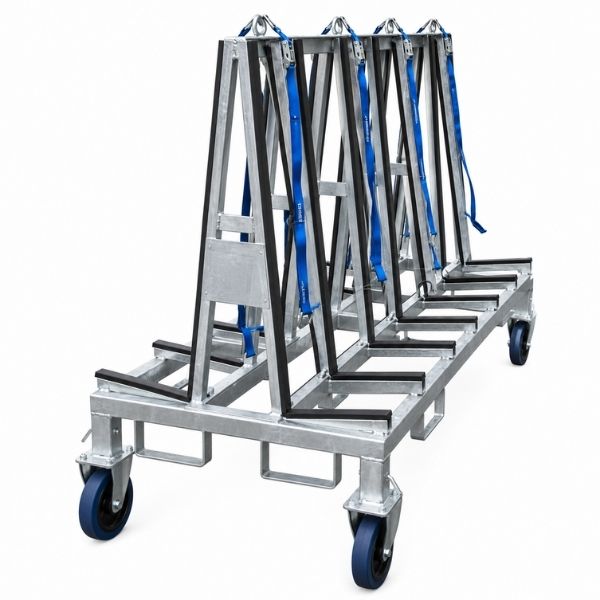

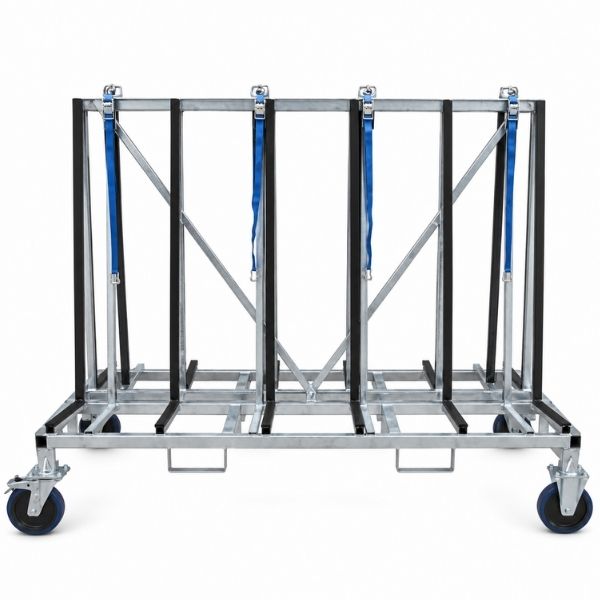

Weha Large A-Frame Cart Double Sided


Weha Large A-Frame Cart Double Sided 8′ granite Large Double Sided Transport A-Frame Racks have been rated as the best transport materials

SKU: 8010484 Category: Tag:

Frequently Bought Together

Weha Large A-Frame Cart Double Sided + Weha Backsplash Attachment Set + Weha Transport Cart Wheels + Weha Roll Block for Transport Carts
Price for all: $3,081.69

Weha Large A-Frame Cart Double Sided

Weha Large A-Frame Cart Double Sided 8′ granite Large Double Sided Transport A-Frame Racks have been rated as the best transport A-frame stone material handling equipment on the market!
Designed for granite, marble, engineered stone, quartz, soapstone, travertine, onyx, and all other natural stone countertop and island pieces
The Weha transportation A-Frame Carts will literally last 15 years or more!

Designed to store and transport large stone countertops and island pieces. Comes with forklift receivers to lift from all four sides of the A-frame.

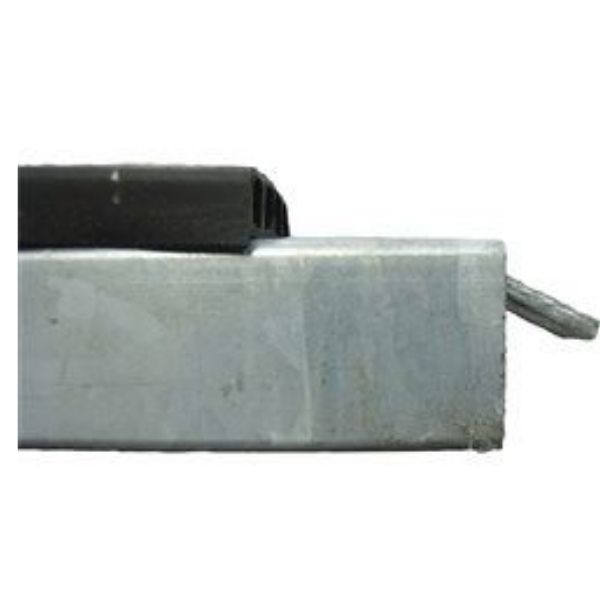

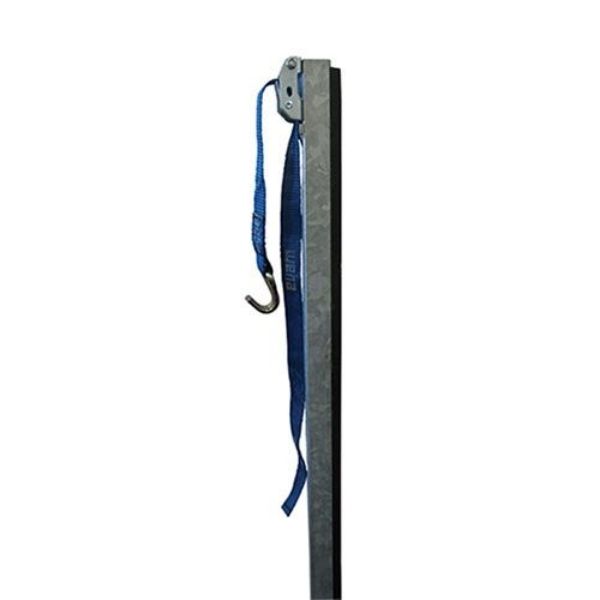

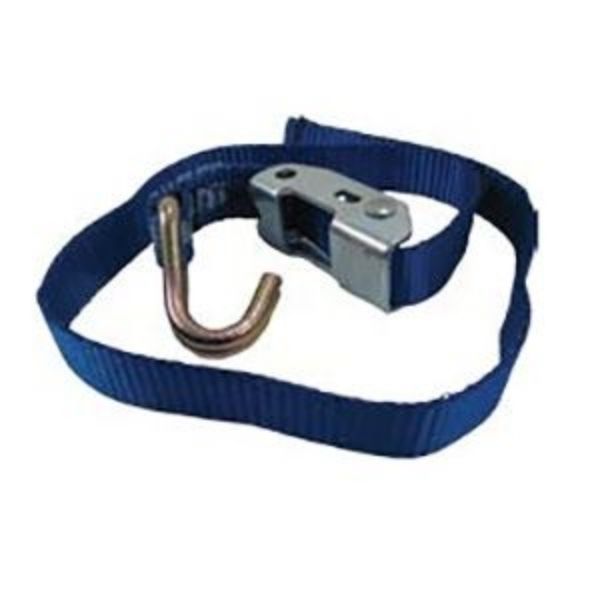

The base and uprights come with replaceable rubber to prevent scratches. The Weha 8’ Large transport A Frame cart has 10 (5 per side) upright and tie-down straps for secure transport.

You might also want to take a look at our other Transport Frames by Weha.

Why Galvanization is Better than Painted A-Frames

Hot-Dip Galvanizing vs. Paint

PropertyHot-Dip GalvanizingPaint
Barrier & Cathodic Corrosion ProtectionYesNo
Bond Strength to Steel~3,600psi~400psi
Abrasion ResistantYesNo
Interior & Exterior Coating Coverage on Hollow StructuresYesNo

Service Life/Durability(a)

LocationHot-Dip Galvanized SteelInorganic Zinc-Rich Paint
Rural>100 years(b)27 years(c)
Urban90 years17 years
Industrial70 years12 years
Marine50 years12 years

(a)To 5% rust on substrate level
(b)Zinc Coating Life Predictor, Zhang, 2001
(c)NACE Paper 06318, Hesel, Melampy, Wissmar, 2006

  1. Most economical: Galvanized steel is often the least expensive initial choice. As other labor-intensive coatings have risen in rates, galvanizing has maintained a consistent price point. Moreover, it lasts longer and requires less maintenance, making it the most cost-effective, long-term option.
  2. Maintenance-free: Galvanizing provides maintenance-free corrosion protection, unlike other protective coatings. This mitigates long-term costs, hassles, and disruptions to production.
  3. Longest lifespan: Galvanized coatings on typical structural members have a life expectancy in excess of 100 years.
  4. Most durable: A galvanized coating has a unique metallurgical structure, providing outstanding resistance to damage during transport, erection, and service.
  5. Most reliable performance: Galvanizing is carried out to ASTM A123 and standard, minimum coating thicknesses are applied. Coating life and performance are reliable and predictable as their performance is based on the known corrosion rate of zinc. Galvanized steel provides a thick, complete, and easily inspected coating.
  6. Most protection: Galvanizing protects every part of a structure, including recesses, sharp corners, and inaccessible areas.
  7. Environmental Sustainability: Zinc, like steel, is a natural substance that is recyclable.

Technical Information for Weha Large A-Frame Cart Double Sided

Width of Contact16″
Load Capacity4410 (2205 lbs per side)
Weight342 lb
Dimension96″ (L) 43″(W) 68″(H)
Note: Wheels sold separately

Demonstration videos

In the following videos, you will see Weha 8 foot large Granite A-frame Truck Rack, Weha A-Frame Features & Replacement Parts, Transport A Frame Upright & Strap Benefits, and Weha Double-Sided Transport A-Frame Assembly

Weight342 lbs
Dimensions96 × 43 × 68 in
