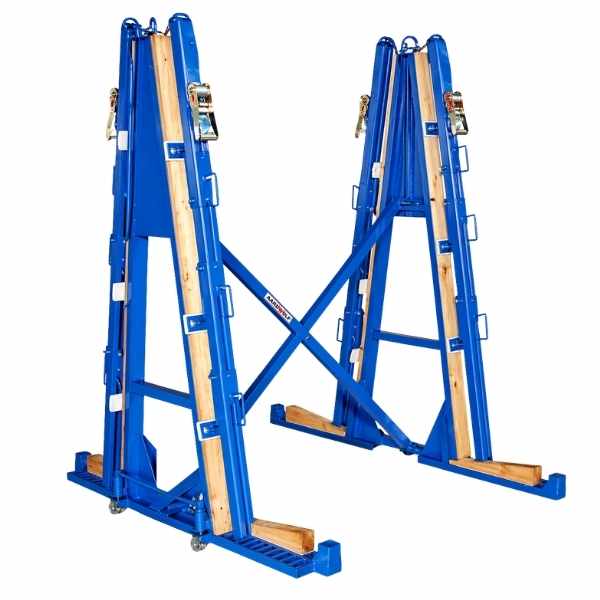

Aardwolf Folding A-Frame FAF-2100
Hauling granite and marble isn’t easy, and it certainly isn’t safe if you don’t have the right equipment. A well-made transporting frame is necessary for both the safety of the driver and other workers, as well as for the protection of the granite and marble. The sturdy Aardwolf Folding A-Frame, with its unique integrated vertical locking bars and ratchet locking straps, is designed to hold all material safely and securely, which eliminates risks to the operator and prevents damage to materials.
The load is secured independently on each side by two vertical locking bars, which are inserted into brackets at the base of the frame and held by ratchet locking straps at the top. The unloaded frame can be folded up by the simple withdrawing of two spring-loaded pins from the cross braces and the lowering of the three wheels at one end by means of a cam lever. The lowered wheels also allow the frame to be positioned on the tray of a truck or manually moved around the factory.
You might also want to take a look into the extensive line of Aardwolf Frames or Aardwolf Transport Frames.
Folding A-Frame FAF-2100 main Features
Among the features of this A-Frame, we find:
- Bolt holes in the base of the frame for optionally securing the Folding ‘A’ Frame to the vehicle
- Granite is secured by rubber pads mounted on cleats, which are in turn adjustable in height along the vertical locking bars
- Large hand-tightened wing nuts are used to tighten the cleats to the vertical locking bars
- Powder-coated finish
- Perfect for flatbeds
Aardwolf Folding A-Frame FAF-2100 Technical Specifications
| Feature | Metric (mm-kg) | Imperial (inch-lb) |
|---|---|---|
| Width of slab storage base area on each side | 465 | 18.3″ |
| Working load limit per side | 3,750 | 8,267 |
| Total working load limit | 7,500 | 16,534 |
| Net weight | 286.5 | 632 |
| Gross weight | 287 | 633 |
| Packaging dimension | 1,960 x 550 x 2,200 | 77.2″ x 21.7″ x 86.6″ |
