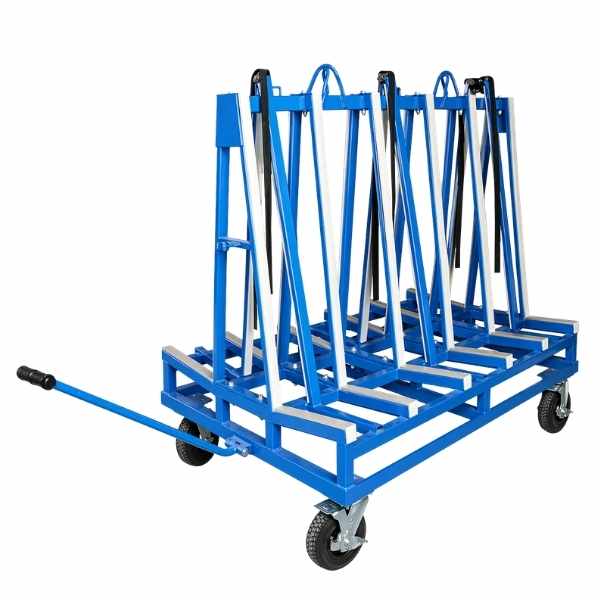

Aardwolf Demountable Frame 1500

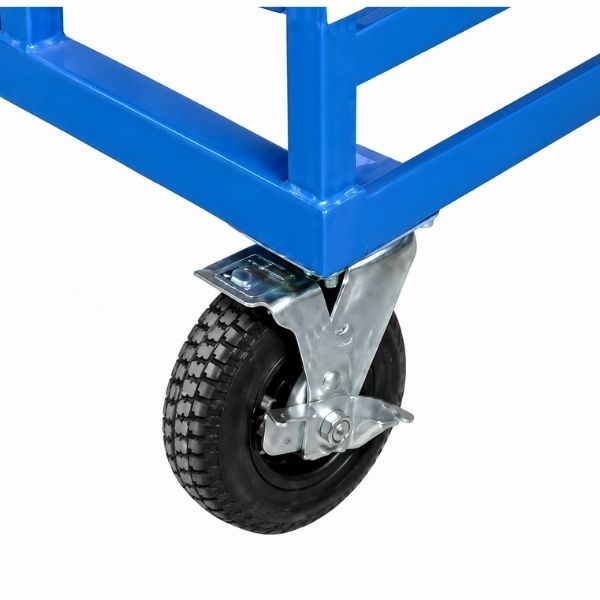

Aardwolf Demountable Frame 1500 is ideal for transporting and storing material within the factory or transporting material to building sites. Rubber is provided on frame surfaces for maximum protection. Heavy-duty wheels allow easy maneuvering of your fully-loaded cart in the workshop and construction site. Fits inside a standard pick-up truck. Frames can be safely placed on your truck with a forklift or crane.
You might also want to look into the extensive line of Aardwolf Transport Frames or Aardwolf Frames.
DFF1500PC Main Features
Among the features of this demountable frame, we find:
- Sturdy structure designed to eliminate any risk of the slab tipping over.
- Slabs are placed on special rubber profiles and secured with six adjustable locking bars.
- Six locking bars per frame are mounted in slotted holes on the bottom.
- The frame features two hooking points to be picked up by an overhead crane.
- Built-in brackets on all underneath sides for forklift transport.
- Powder-coat paint finish.
Frame 1500 Technical Specifications
Feature | Metric (mm-kg) | Imperial (inch-lb) |
---|---|---|
Width of slab storage base area on each side | 361 | 14.2″ |
Working load limit per side | 500 | 1,1102 |
Total Working load limit | 1,000 | 2,204 |
Net weight | 123.5 | 272 |
Gross weight | 124 | 273 |
Packaging dimension | 1,560 x 1,135 x 230 | 61.4″ x 44.7″ x 9″ |
