Weha Unipad Pneumatic Vacuum Lifter T800 Air Only
Weha Unipad Pneumatic Vacuum Lifter T800 Air Only comes with the Air connection only. The Vacuum Lifter T800 is a stand-along single pad vacuum lifter that builds air into its reservoir.
You might also want to take a look at our other Vacuum Lifters by Weha.
Unipad Pneumatic Vacuum Lifter T800 Air Only Features
The main features of Weha Unipad Pneumatic Vacuum Lifter T800 are:
- Can be connected to an air compressor that operates via a venturi system.
- Runs off of a small compressor with a min 2 CFM and 60psi.
- Comes with a multi-filter and water trap Prevents the penetration of dust and moisture.
- Protects the pneumatic structural parts against premature wear.
- Very visible pressure gauge.
- Comes with a built-in safety-vacuum tank made of aluminum material (non-corrosive!).
- It comes with an air connection. This can be connected to an air compressor that operates via a venturi system.
- Universally applicable for polished and for rough upper surfaces!

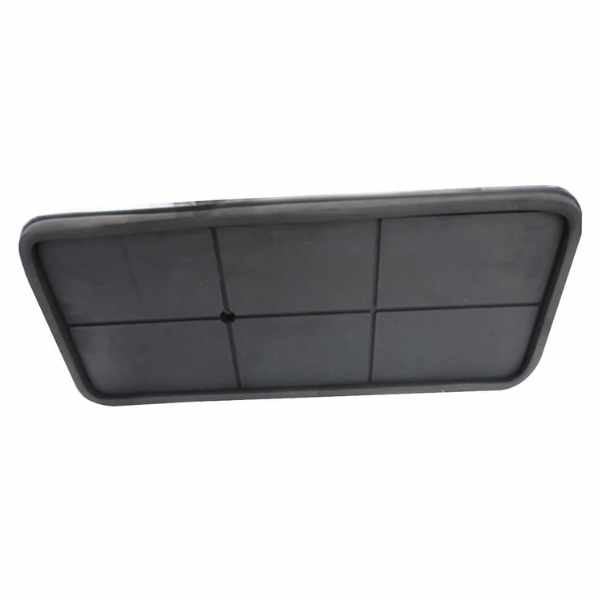

- The bottom was designed with the New Weha Generation Unipad Vacuum Suction Pad (simple and extremely fast-changing of the vacuum-rubber seals).
- All parts are easily replaced for years of use.
- It has lower servicing costs and maintenance charges since the rubber seals are easily replaceable.
- Increased safety over other lifters because the Unipads create a stronger, tighter vacuum seal.
Demonstration video
Technical Specifications
| Property | Value |
|---|---|
| Load Capacity Horizontal | 1764 lbs |
| Load Capacity Vertical | 882 lbs |
| Suction Plate | 28“ x 12“ |
| Weight | 73 lbs |
