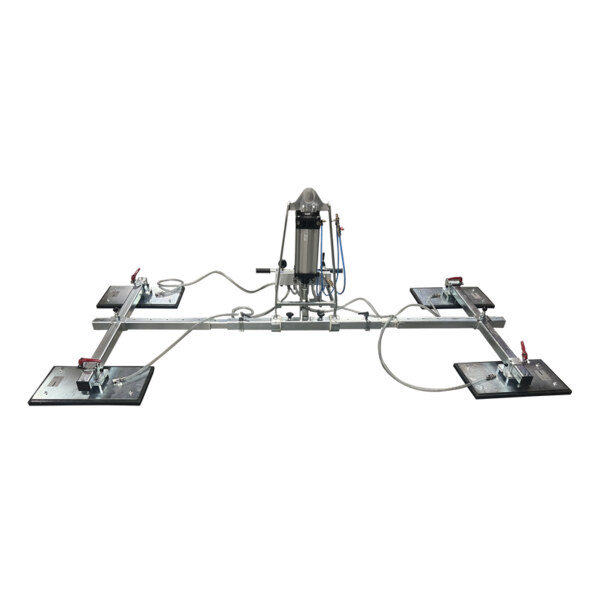

Weha A1500 4-Pad Vacuum Lifter with Power Tilt
The Weha A1500 uses compressed air and four adjustable suction pads to lift and position granite, marble, quartz and engineered stone. Pneumatic power tilt moves the load between horizontal and vertical positions through a 0–90° range.
Adjustable slab handling
- Individual shut-off valves and quick-disconnect air lines for pad configuration.
- Swiveling pads lock at 90° and can be positioned at 45° for irregular pieces.
- Hot-dipped galvanized steel frame and a front-mounted vacuum gauge.
Specifications
| Model / SKU | A1500 / 151760 |
|---|---|
| Rated capacity with 4 pads | 1,200 lb, horizontal or vertical |
| Vacuum pads | 4; each 12.5 × 22.5 in |
| Air supply | Minimum 58 PSI at 4 CFM |
| Power tilt | 0–90° |
| Base length / with extensions | 36 / 94 in |
| Crossbar length | 48 in |
| Height | 39 in |
| Weight | 325 lb |
Included
A1500 base unit, two extension bars, two crossbars and four vacuum pads. Storage stand sold separately.
