Aardwolf Vacuum Glass Lifter AVGLP8

Aardwolf Vacuum Glass Lifter AVGLP8

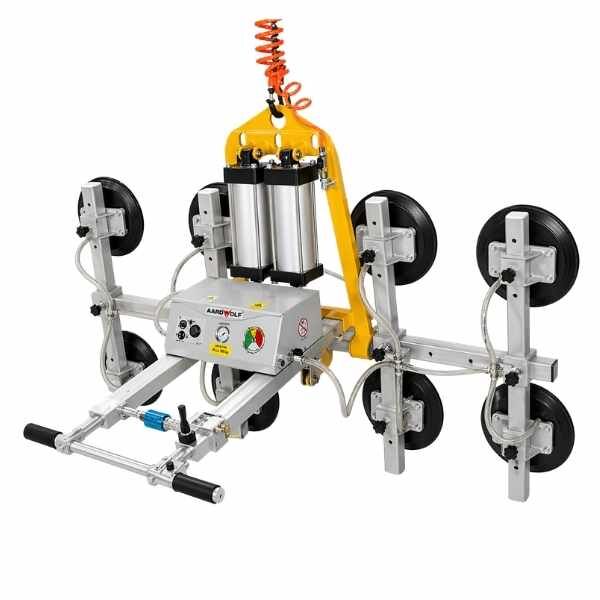

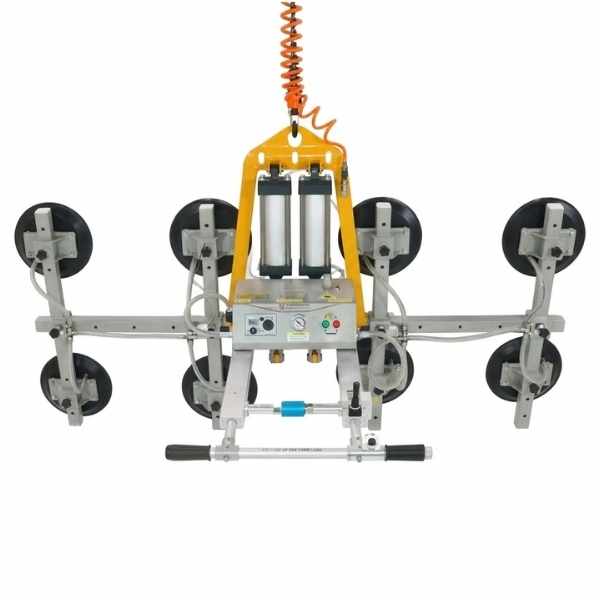

Aardwolf Vacuum Glass Lifter AVGLP8 is suitable for lifting porcelain and glass sheets in large sizes. Features rugged construction with the added ability to lift and tilt the slab materials.

Aardwolf products are built with the best quality standards, which has gained the brand a very high reputation, and a favorite among our customer base. You can always rely on their products, as they are probably the best option in the market today. You might also want to take a look at the diverse line of Aardwolf Stone Lifters, where you will probably find the best solution for your Granite Shop.

Aardwolf Vacuum Glass Lifter AVGLP8 Main Features

Among the features of this wonderful Vacuum Glass Lifter, we find:

• Pneumatic vertical-horizontal tilting from 0 to 90°.
• Automatic vacuum pumping if vacuum loss occurs.
• Acoustic and visual alarm system.
• Attach/release material with an ON/OFF slide valve.

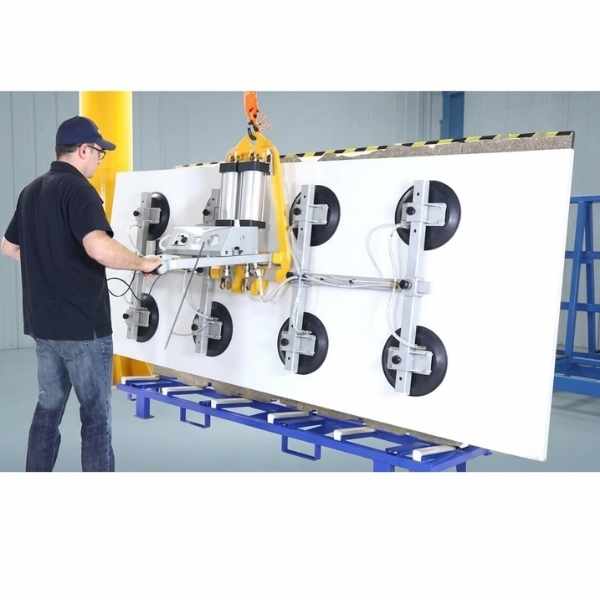

Watch the Lifter in action

Aardwolf Vacuum Glass Lifter AVGLP8 Technical Specifications:

Feature	Metric (mm-kg)	Imperial (inch-lb)
Number of pads	8	–
Pad diameter	Seal to seal: 300	12″
Working load limit	Vertical: 400	882
	Horizontal: 800	1,764
Net weight	108	238
Gross weight	135	298
Packaging dimensions	2,050 x 430 x 960	80.7″ x 17″ x 37.8″

Battery information for the device

Feature	Value
Code battery	GBA 12V 2.0Ah Bosch
Type battery	Lithium-ION
Voltage	12V
Current	2.0Ah
Quantity	1
Continuous operation time with mode saving pressure	2 hours
Working time with mode saving pressure	6 hours
Continuous operation time with mode audio alarm only	120 hours
Working time with mode audio alarm only	360 hours

Battery charger

Feature	Value
Code battery	GAL 12V-40 Bosch
Input supply voltage	220-240VAC
Output voltage	12V
Output current	4.0Ah
Quantity	1
Full charger time	0.5 hour
Weight	460 gram

Compressed air requirement

Feature	Value
Air consumption	180 liters/minute
Supply air pressure	5 bars (72 psi)

Glass Lifter Manual

AVGLP8 Manual
