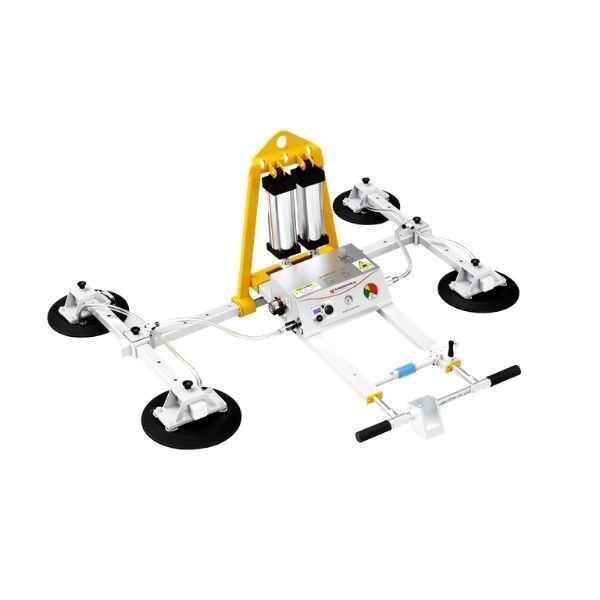

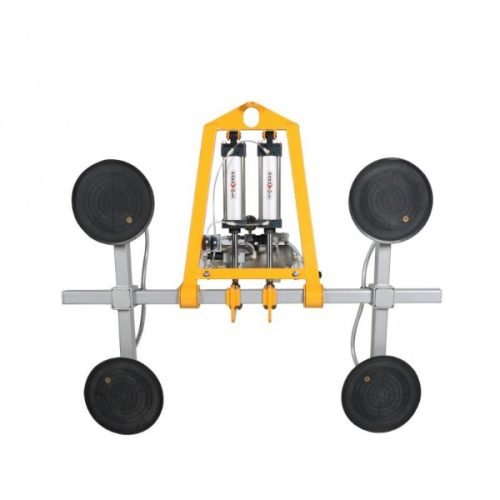

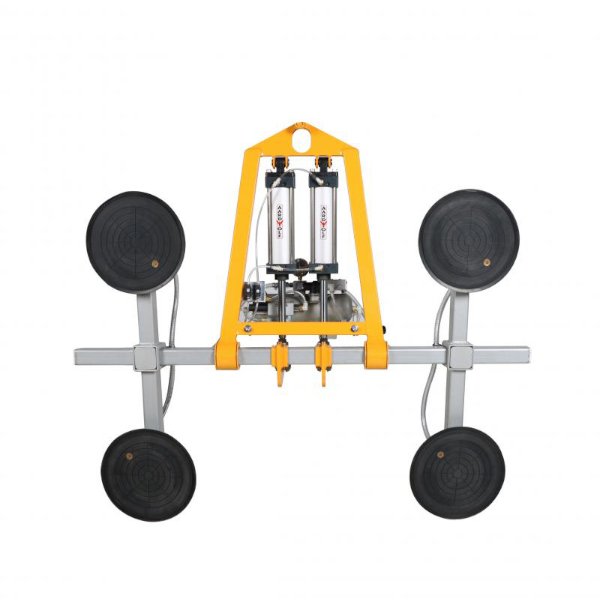

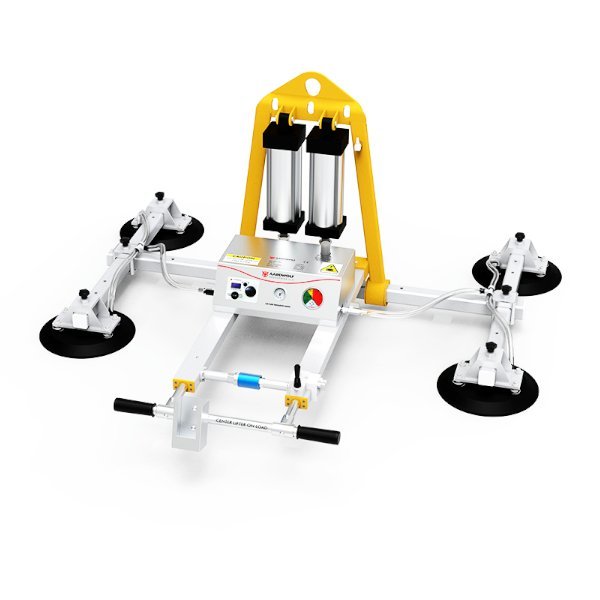

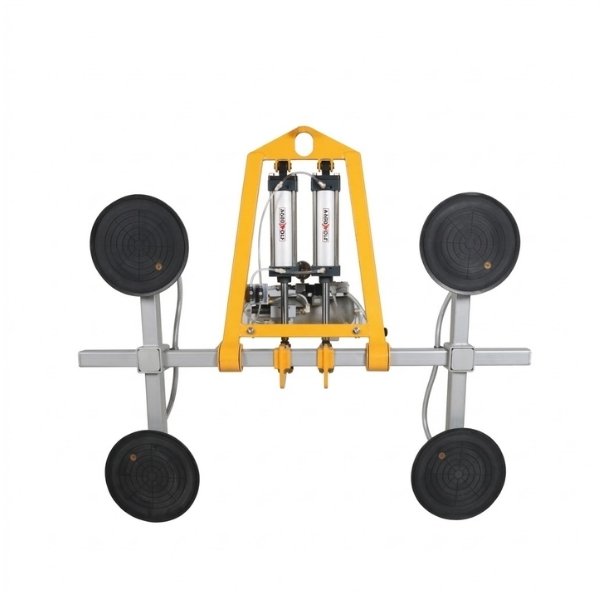

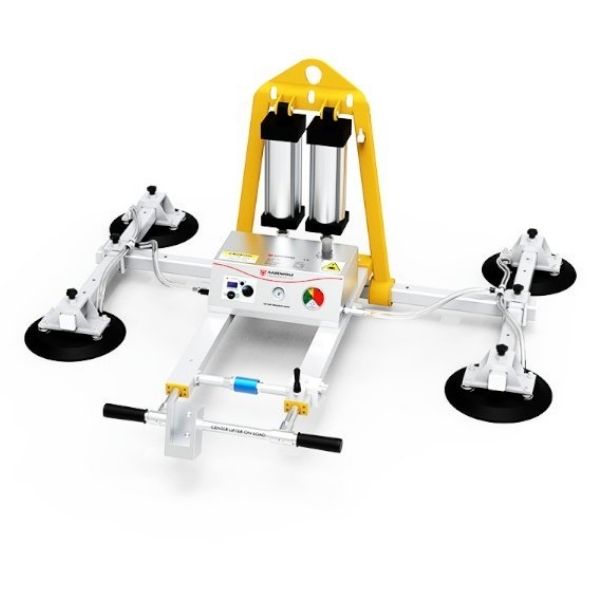

Aardwolf Vacuum Glass Lifter AVGLP4-400
The Aardwolf Vacuum Glass Lifter AVGLP4-400 is a powerful, pneumatically operated tool designed for lifting glass panels, even those with rough surfaces, weighing up to 500 kg. Its rugged construction ensures durability and reliable performance, while the added functionality to tilt the panels allows for precise and controlled handling. This lifter is ideal for use in demanding environments, making the transportation and positioning of heavy glass panels efficient and safe. Its robust design and versatility make it a must-have tool for glass installation and handling tasks.
Aardwolf products are built with the highest quality standards, earning the brand a very high reputation and making it a favorite among our customer base. You can always rely on their products, probably the best option in the market today. You might also want to look at the diverse line of Aardwolf Stone Lifters, where you will probably find the best solution for your Granite Shop.
Vacuum Glass Lifter AVGLP4-400 Main Features
Among the features of this wonderful Vacuum Lifter, we find:

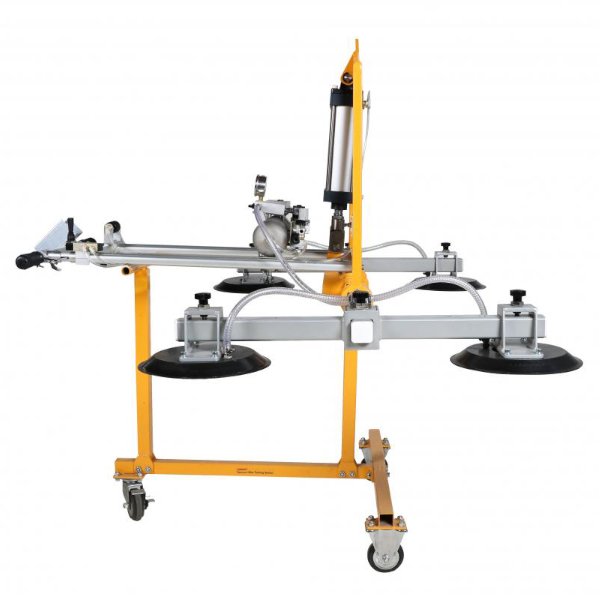

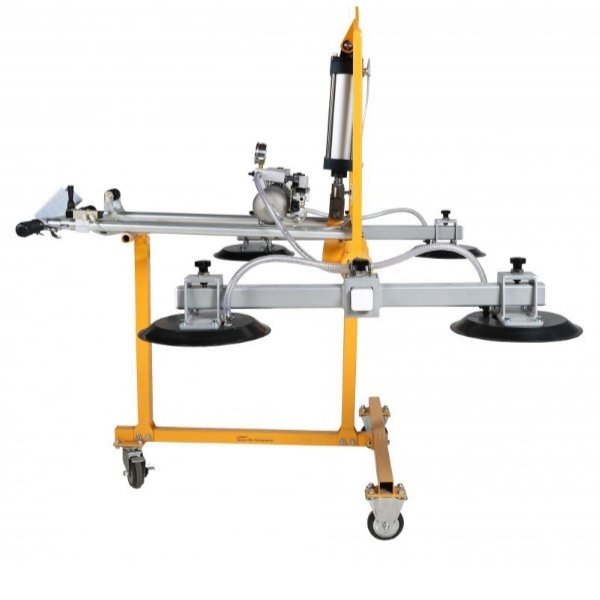

- Pneumatic vertical-horizontal tilting from 0 to 90°.
- A stainless steel vacuum tank ensures safety during an unexpected power outage.
- Automatic vacuum pumping if vacuum loss occurs.
- Acoustic and visual alarm system.
- Attach/release material with an ON/OFF slide valve.

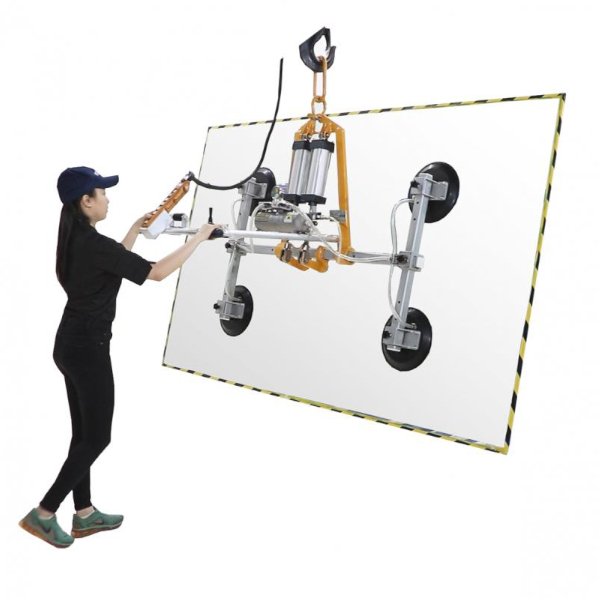

Watch the Lifter in action
AVGLP4-400 Technical Specifications:
| Feature | Metric (mm-kg) | Imperial (inch-lb) |
|---|---|---|
| Number of pad | 4 | – |
| Pad diameter (Seal to seal) | 280 mm | 11″ |
| Working load limit (Vertical) | 200 kg | 441 lb |
| Working load limit (Horizontal) | 400 kg | 882 lb |
| Net weight | 79 kg | 174 lb |
| Packaging dimensions | L.1480xW.380xH.960 mm | 58.2″x15″x37.8″ |
Battery information for the alarm system
| Battery Information | Details |
|---|---|
| Power supply | 3.7V Lipo battery |
| Battery capacity | 2000 mAh x 1 |
| Standby time | 720 hours |
| Charging cycle | 1000 times |
| Charging time | 2 hours |
| Non-stop working time | 7 hours |
| 6-month warranty | – |
Compressed air requirement
| Motor Information | Details |
|---|---|
| Air consumption | 180 liters/minute |
| Supply air pressure | 5 bars (72 psi) |
