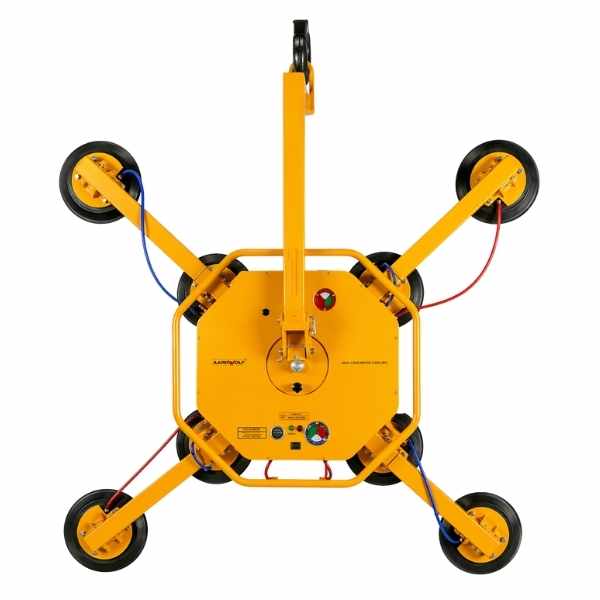

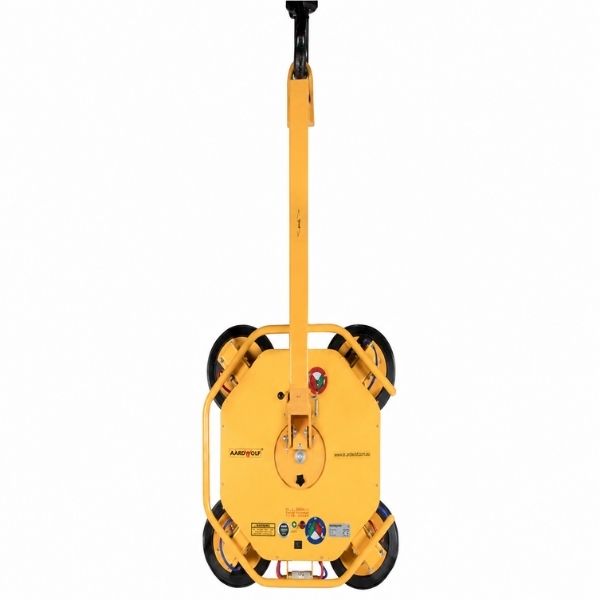

Aardwolf Powered Vacuum Glass Lifter ARGL-500DS
Aardwolf Powered Vacuum Glass Lifter ARGL-500DS is an electrical vacuum lifter with a 4-bar tilting mechanism. Integrated with a multi-angle rotation feature, the ARGL-500DS ensures flexibility when vertically rotating and tilting large glass sheets. The ARGL-500DS is equipped with two independent vacuum circuits, which support each other in the event of a system failure to ensure user safety during the working process.
Aardwolf products are built with the best quality standards, which has gained the brand a very high reputation, and a favorite among our customer base. You can always rely on their products, as they are probably the best option in the market today. You might also want to take a look at the diverse line of Aardwolf Stone Lifters, where you will probably find the best solution for your Granite Shop.
Aardwolf Powered Vacuum Glass Lifter ARGL-500DS Main Features
Among the features of this wonderful Vacuum Glass Lifter, we find:
- Double redundancy with a load capacity of 500kg
- Spring-loaded suction pads
- 360° rotation with 45° steps
- Four extension arms with the ability to extend and retract
- Two independent vacuum circuits provide mutual aid in the event of a system error
- Automatic vacuum pumping system
- Audio and visual warning system
- 12V power supply by a high-capacity battery

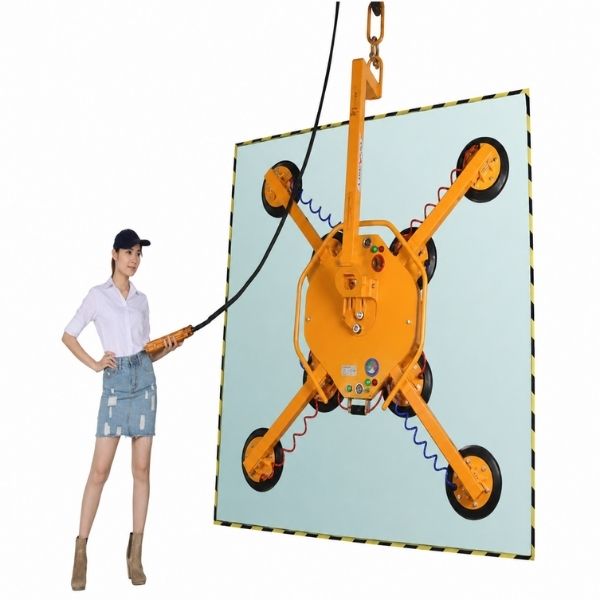

Watch the Lifter in action
Aardwolf Vacuum Glass Lifter AVGLP8 Technical Specifications:
| Suction Pad Dimension | Number of Pads | Weight (kg) | Weight (lb) | Horizontal Lifting Capacity (kg) | Vertical Lifting Capacity (kg) | Horizontal Lifting Capacity (inch-lb) | Vertical Lifting Capacity (inch-lb) |
|---|---|---|---|---|---|---|---|
| Diameter of 300mm | 8 | 83kg | 183lb | 500kg | 400kg | 1102.31 inch-lb | 881.85 inch-lb |
Battery information for the device
| Feature | Value |
|---|---|
| Power supply | 12V-7Ah |
| Requirement input | 12V-2A |
| Standby time | 720h |
| Charging time | 3.5h |
| Non-stop working time | 1.5h |
| Warranty | 6 months |
Compressed air requirement
| Feature | Value |
|---|---|
| Air Consumption | 180 l/min |
| Supply Air Pressure | 5 bar at the vacuum lifter |
