Aardwolf Mono Mechanical Vacuum Lifter 150 with Handle

Aardwolf Mono Mechanical Vacuum Lifter 150 with Handle

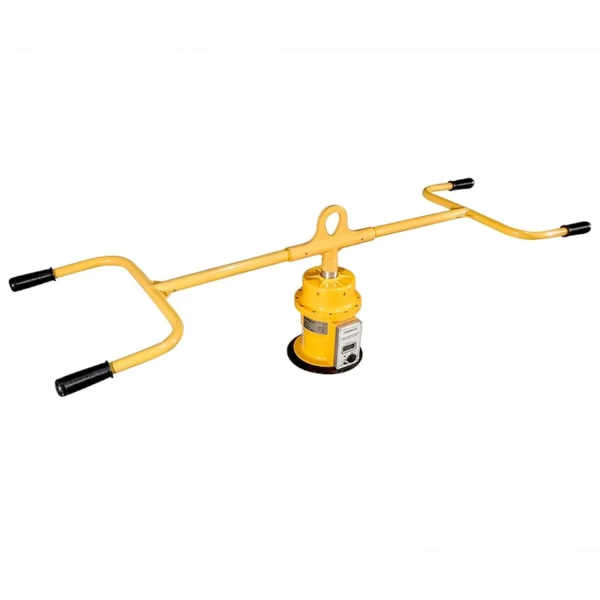

Aardwolf Mono Mechanical Vacuum Lifter 150 with Handle is a self-powered mechanical vacuum lifter designed for the horizontal handling of non-porous sheet and slab materials, including diamond-sawn or polished granite, engineered stone, metals, plastics, and fiberglass. Requiring no electricity or factory air, it features an automatic self-cycling valve at the bottom of the piston that controls the vacuum grip-and-release cycle, allowing the unit to be immediately ready for operation with minimal maintenance. The integrated handle enables two operators to safely lift and transport materials once the vacuum lifter is attached, while the swivel top hook provides convenient lifting with hoists or cranes.

Constructed from lightweight aluminum, the AMMVL150H combines durability with easy portability while offering a 331 lb (150 kg) working load limit. A non-rechargeable 9V battery powers the built-in audio alarm system for enhanced operational safety, although no external power source is required for vacuum generation. With its 7-7/8″ vacuum pad, lightweight design, and reliable mechanical operation, this vacuum lifter is an efficient solution for stone fabrication shops, glass processors, and industrial material handling applications.

You might also want to take a look at the diverse line of Aardwolf Stone Lifters, where you will probably find the best solution for your Granite Shop.

Mono Mechanical Vacuum Lifter 150 with Handle Main Features

Among the features of this wonderful Vacuum Glass Lifter, we find:

• Self-powered mechanical vacuum lifter with no electricity or factory air required
• Ideal for horizontal handling of non-porous sheet and slab materials
• Suitable for granite, engineered stone, metals, plastics, and fiberglass
• Automatic self-cycling valve controls the vacuum grip and release cycle
• Handle allows two operators to safely move sheet and slab materials
• Built-in audio alarm powered by a non-rechargeable 9V battery
• Lightweight, low-maintenance aluminum construction
• Swivel top hook for easy lifting with hoists or cranes
• Ready for immediate operation
• Working load limit of 331 lb (150 kg)

Watch the Lifter in action

https://youtu.be/hRnZNGEr8pE?si=qeUzrOo57hcPHkrH

Aardwolf Mono Mechanical Vacuum Lifter 150 with Handle Technical Specifications:
