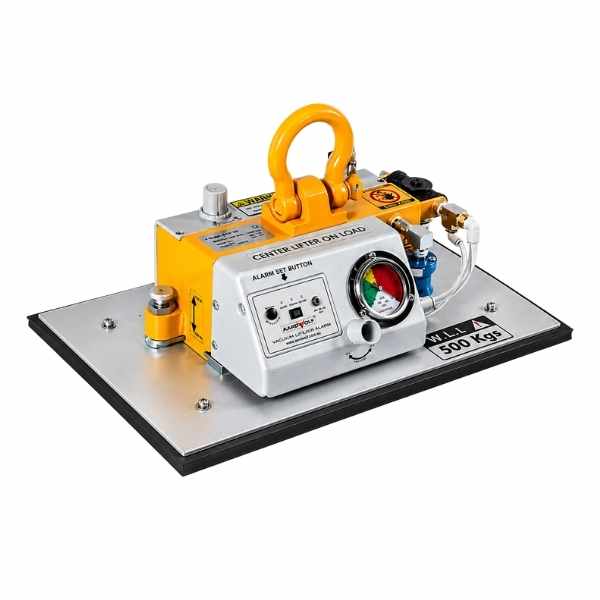

Aardwolf Handy Vacuum Lifter
Aardwolf Handy Vacuum Lifter is powered by a venturi vacuum generator, which needs a source of compressed air in order to function but requires no electricity. The vacuum generator has no moving parts and therefore no lubrication is required. This lifter consists of four (4) pads to make it can be replaced with different pads so that it fits with the sizes of materials.
Aardwolf products are built with the best quality standards, which has gained the brand a very high reputation, and a favorite among our customer base. You can always rely on their products, as they are probably the best option in the market today. You might also want to take a look at the diverse line of Aardwolf Stone Lifters, where you will probably find the best solution for your Granite Shop.
Handy Vacuum Lifter main Features
Among the features of this wonderful Lifter, we find:
- Adjustable vacuum pads.
- Attach/release materials with an ON/OFF slide valve.
- Acoustic alarm system independently powered by a small 9V rechargeable battery.
- Vacuum gauge for a visual warning of low vacuum.
- For stone, concrete, foam pads.
Watch the Lifter in action

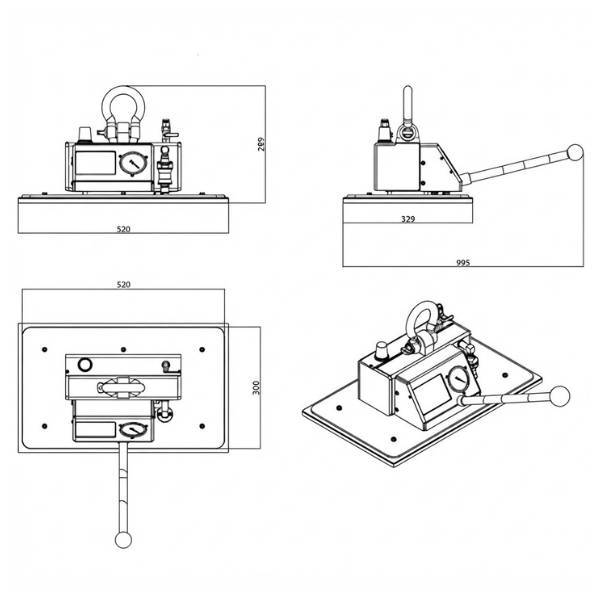

Handy Vacuum Lifter Technical Specifications:
| Feature | Metric (mm-kg) | Imperial (inch-lb) |
|---|---|---|
| Working load limit | Pad size 520 x 125: 120 | Pad size 20.5″ x 5″: 265 |
| Pad size 520 x 160: 180 | Pad size 20.5″ x 6.3″: 397 | |
| Pad size 520 x 220: 280 | Pad size 20.5″ x 8.7″: 617 | |
| Pad size 520 x 320: 500 | Pad size 20.5″ x 12.6″: 1,102 | |
| Net weight | 21 | 46 |
| Gross weight | 26 | 57 |
| Packaging dimensions | 550 x 350 x 270 | 21.7″ x 13.7″ x 10.6″ |
Battery information for the alarm system
| Feature | Value |
|---|---|
| Power supply | 3.7 V Lipo battery |
| Battery capacity | 2000 mAh x 1 |
| Standby time | 720 hours |
| Charging cycle | 1,000 times |
| Charging time | 2 hours |
| Adapter | DC 5V-1A |
| Non-stop working time | 7 hours |
| 6-month warranty | Yes |
Compressed air requirement
| Feature | Value |
|---|---|
| Air consumption | 180 liters/minute |
| Supply air pressure | 5 bars (72 psi) |
