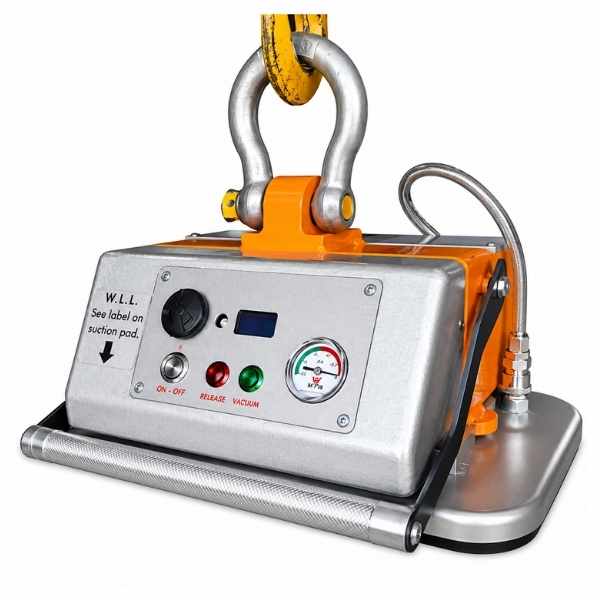

Aardwolf Handy Vacuum Lifter
The Aardwolf Handy Vacuum Block Lifter is an innovative solution designed to simplify the handling of stone and block materials. This latest model features an integrated battery-powered vacuum system, eliminating the need for external pneumatic power and hoses and allowing for more efficient and flexible operations. With a working load limit of up to 380 kg (838 lb) and multiple optional pad sizes, the lifter provides enhanced versatility. Its user-friendly design enables quick and safe vertical lifting and releasing with a single push, making it an essential tool for handling block materials with ease and precision.
You might also want to take a look at the diverse line of Aardwolf Stone Lifters, where you will probably find the best solution for your Granite Shop.
Handy Vacuum Lifter Main Features
Among the features of this wonderful Lifter, we find:
- Work Load Limit: Up to 380 kg (838 lb) with different vacuum pad sizes.
- Integrated Battery Vacuum System: No external pneumatic power with hoses is needed.

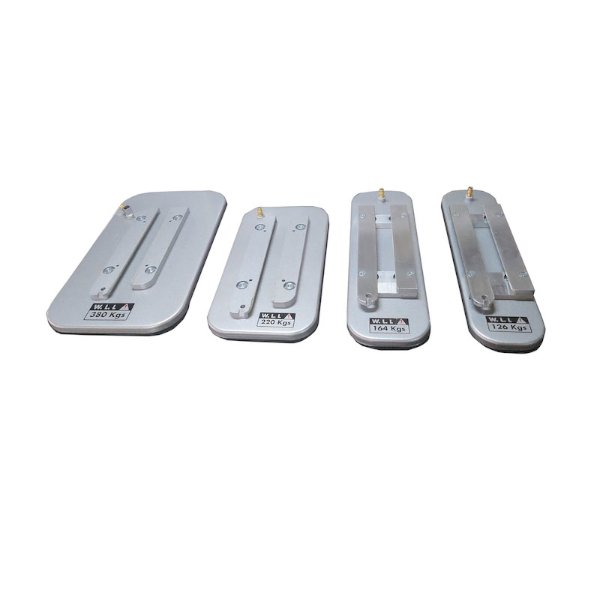

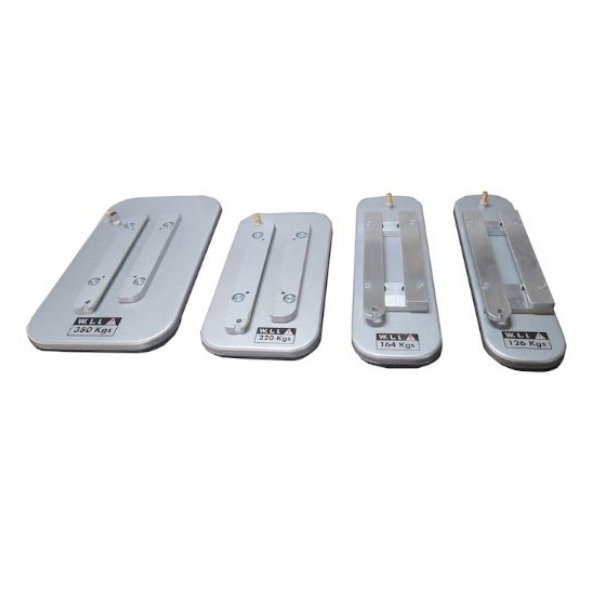

- Versatile Pads: Includes four pad sizes for various W.L.L
- Easy Pad Changes: Fast assembly for switching pads.
- One-Click Operation: A single press to lift or release the load.
- Visual Monitor and Alarm System: Ensures smooth and safe operation.
- Battery Backup: Prevents operational interruptions.
Watch the Lifter in action
ABHVL-380 Technical Specifications:
| Feature | Metric (mm-kg) | Imperial (inch-lb) |
|---|---|---|
| Pad sizes and W.L.L | 500×300 mm: 380 kg | 19.7″x11.8″: 838 lb |
| 420×220 mm: 220 kg | 16.5″x8.66″: 485 lb | |
| 500×150 mm: 164 kg | 19.7″x5.9″: 362 lb | |
| 500×125 mm: 126 kg | 19.7″x4.9″: 278 lb | |
| Packing dimensions | L.590xW.470xH.340 mm | 23.2″x18.5″x13.3″ |
| Net weight | 18 kg | 39.6 lb |
| Gross weight | 34 kg | 74.9 lb |
