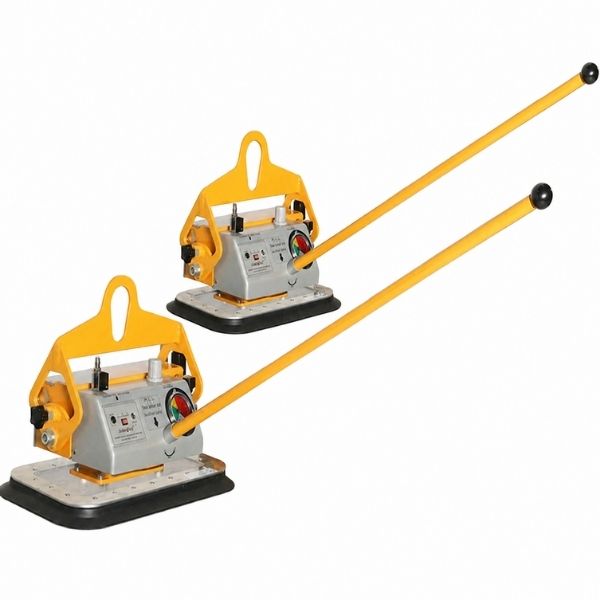

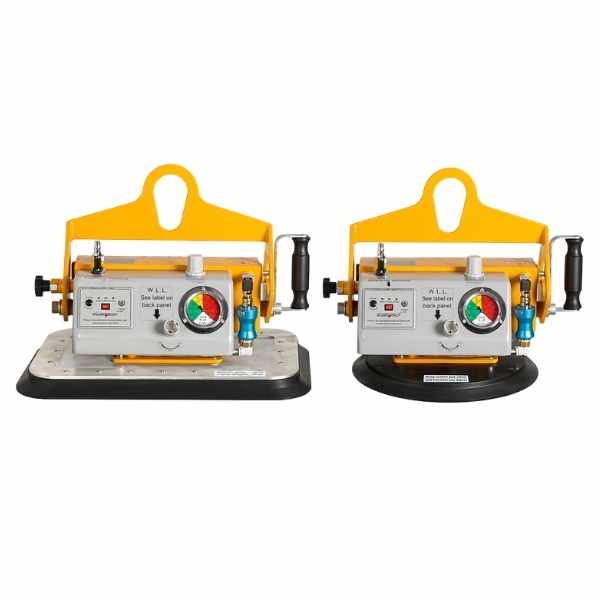

Aardwolf Hand Pump Vacuum Lifter AVLHP240/480

Aardwolf Hand Pump Vacuum Lifter AVLHP240/480

Aardwolf Hand Pump Vacuum Lifter AVLHP240/480 is powered by a hand pump or venturi pump designed to be used in the factory or on the building site.  It is especially suitable for the horizontal transportation of non-porous sheet materials such as steel plate, glass, aluminium plate and polished marble or granite.

Aardwolf products are built with the best quality standards, which has gained the brand a very high reputation, and a favorite among our customer base. You can always rely on their products, as they are probably the best option in the market today. You might also want to take a look at the diverse line of Aardwolf Stone Lifters, where you will probably find the best solution for your Granite Shop.

Hand Pump Vacuum Lifter Main Features

Among the features of this wonderful Lifter, we find:

• Dust and fire resistant
• Attach/release materials with an on/off slide valve
• Acoustic/visual alarm system
• Replaceable suction pads

Watch the Aardwolf Hand Pump Vacuum Lifter AVLHP240/480 in action

AVLHP240/480 Technical Specifications

Feature	Metric (mm-kg)	Imperial (inch-lb)
Package Dimensions	L 550 x W 380 x H 470 mm	L 21.65 x W 14.96 x H 18.50 inches
Vacuum Lifter Weight	22.6 kg	49.82 lb
Gross Weight	31 kg	68.34 lb

Capacity

Pad Type	Dimensions	Horizontal Lifting Capacity (kg)	Vertical Lifting Capacity (kg)	Horizontal Lifting Capacity (inch-lb)	Vertical Lifting Capacity (inch-lb)
Round Pad 300mm Diameter	300mm Diameter	240kg	120kg	530.16 inch-lb	265.08 inch-lb
Rectangle Pad 520 x 320mm	520mm x 320mm	450kg	225kg	992.25 inch-lb	496.13 inch-lb

Battery information for the alarm system

Feature	Value
Lipo Battery Capacity	3.7V 2000mAhx1
Standby Time	720h
Non Stop Working Time	7h
Charging Requirements
Input	220V 50-60Hz
Output	5V 1A
Charging Cycle	1000 times
Charging Time	2h

Compressed air requirement

Feature	Value
Air Consumption	180 l/min
Supply Air Pressure	5 bar at the vacuum lifter
