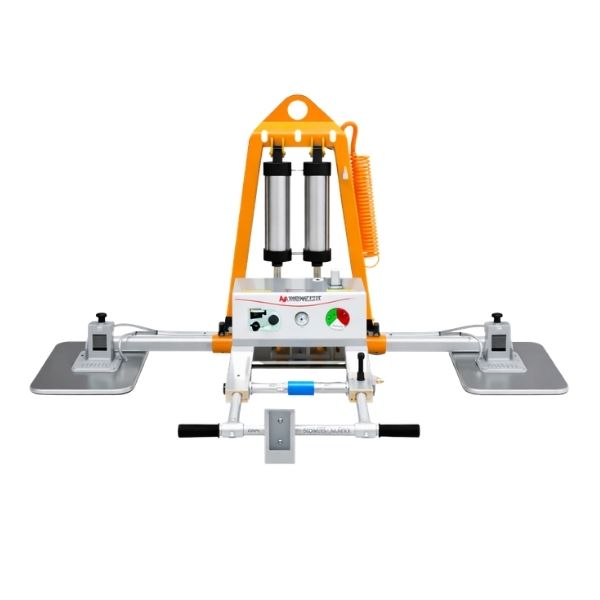

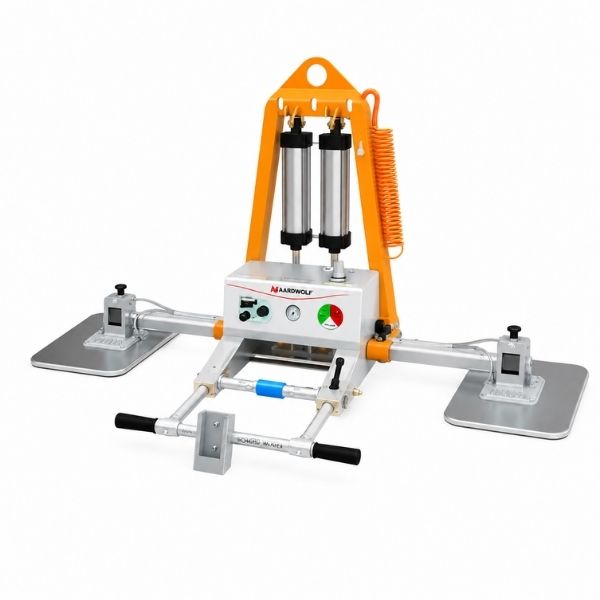

Aardwolf AVLP3 Pro Vacuum Lifters 600
Aardwolf AVLP3 Pro Vacuum Lifters 600 are reliable, high-performance solutions for lifting and tilting stone slabs, including granite, marble, and other heavy materials. Powered by compressed air, it enables smooth and precise pneumatic tilting from 0° to 90°, allowing safe and efficient handling in both vertical and horizontal positions. Built with robust, durable construction, this lifter is designed to withstand demanding, heavy-duty applications.
Equipped with a vacuum tank that maintains suction during sudden power loss, the AVLP3 Pro ensures enhanced safety at all times. It features a slide-valve control with simple ON/OFF operation for quick attachment and release, along with dual operating modes: an audio alarm mode that activates a buzzer when vacuum pressure drops below 64 kPa, and an energy-saver mode that automatically starts and stops the pump to maintain pressure while conserving air. A visual and audio alarm system powered by a rechargeable 12V battery adds another layer of protection, while adjustable handles extending from 3″ to 4.2″ provide improved ergonomics and operator comfort.

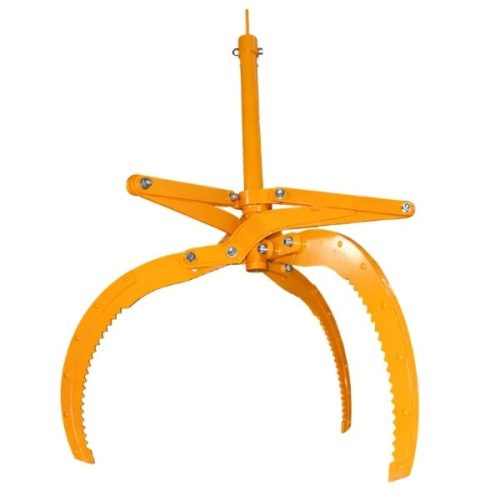

You might also want to take a look at the diverse line of Aardwolf Stone Lifters, where you will probably find the best solution for your Granite Shop.
AVLP3 Pro Vacuum Lifters 600 Main Features
- Pneumatic tilting system allows smooth and precise 0°–90° vertical/horizontal movement
- Vacuum tank maintains suction during power loss for enhanced safety
- Visual and audio alarm system alerts when vacuum pressure is low
- Slide valve control enables quick and simple ON/OFF operation
- Dual operation modes: audio alarm mode and energy saver mode for efficiency
- Adjustable handles (3″–4.2″) for improved ergonomics and comfort
- Robust, durable construction for heavy-duty applications
Watch the Aardwolf AVLP3 Pro Vacuum Lifters 600 in action
AVLP3-600P Technical Specifications
| Property | Value |
|---|---|
| Number of pads | 3 |
| Pad size | Outer pads: 19 5/8 × 11 3/4 inCentral pad: 15 3/4 × 7 7/8 in |
| Working load limit – Vertical | 660 lb |
| Working load limit – Horizontal | 1320 lb |
| Net weight | 160 lb |
| Gross weight | 245 lb |
| Packaging dimensions | 66 1/8 × 16 7/8 × 37 7/8 in |
Battery Information – Alarm System
| Property | Value |
|---|---|
| Battery code | GBA 12V 2.0Ah Bosch |
| Battery type | Lithium-ION |
| Voltage | 12V |
| Capacity | 2.0Ah |
| Quantity | 1 |
| Continuous operation time (pressure saving mode) | 2 hours |
| Working time (pressure saving mode) | 6 hours |
| Continuous operation time (audio alarm only) | 120 hours |
| Working time (audio alarm only) | 360 hours |
Battery charger
| Property | Value |
|---|---|
| Charger code | GAL 12V-40 Bosch |
| Input supply voltage | 220–240 VAC |
| Output voltage | 12V |
| Output current | 4.0Ah |
| Quantity | 1 |
| Full charge time | 0.5 hour |
| Weight | 1 lb |
Compressed Air Requirement
| Property | Value |
|---|---|
| Air consumption | 6.4 CFM |
| Supply air pressure | 72 psi |
