Aardwolf AMVL250 4-Pad Mechanical Vacuum Lifter
The Aardwolf AMVL250 is a mechanical vacuum lifter for horizontal handling of smooth, non-porous sheet and plate materials. Choose between two four-pad configurations: the AMVL250-4 with a rectangular pad arrangement or the AMVL250-4L with four pads arranged in a straight line. Both models have a working load limit of 250 kg (551 lb).
Choose your configuration

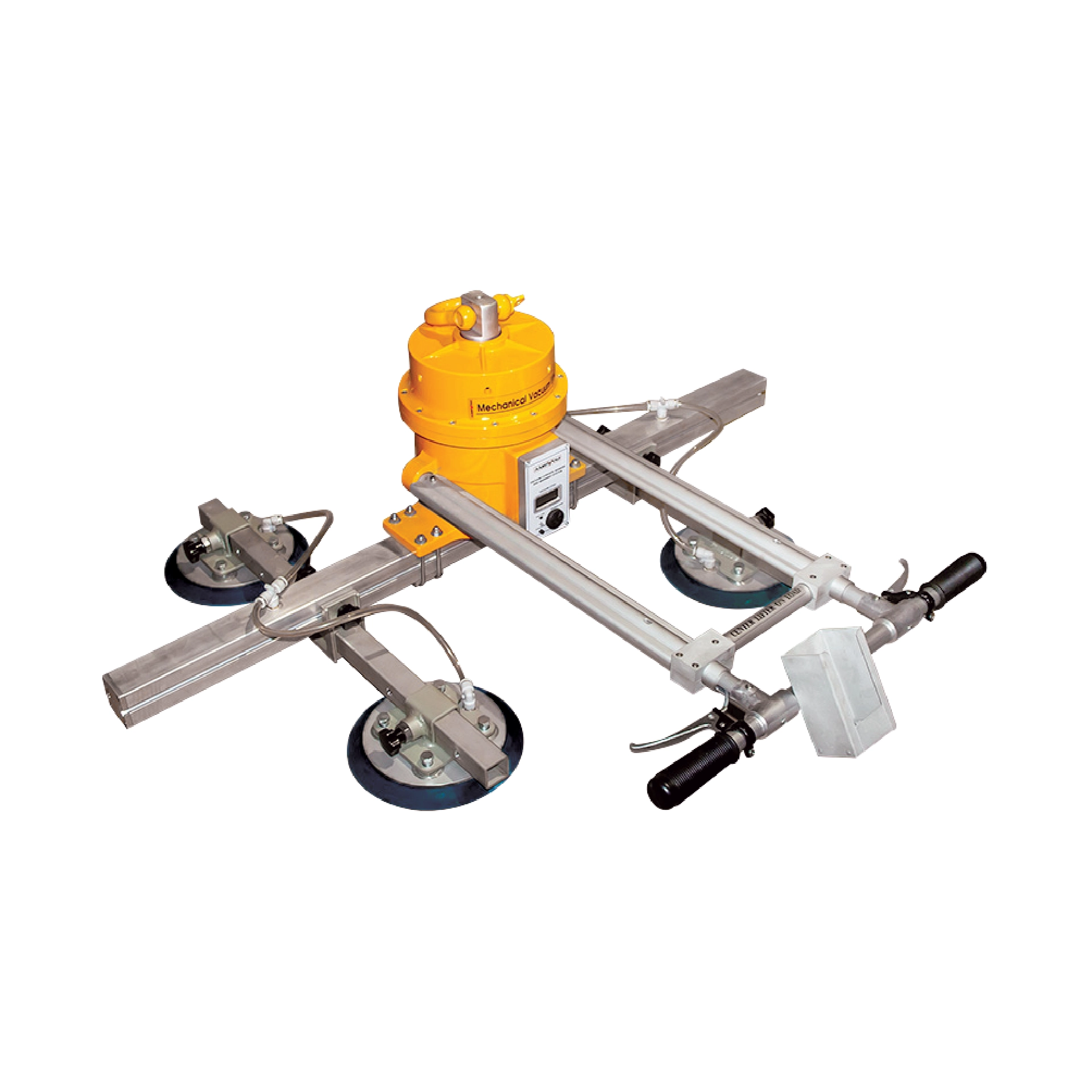

- AMVL250-4 — Standard: Four vacuum pads in a rectangular arrangement.

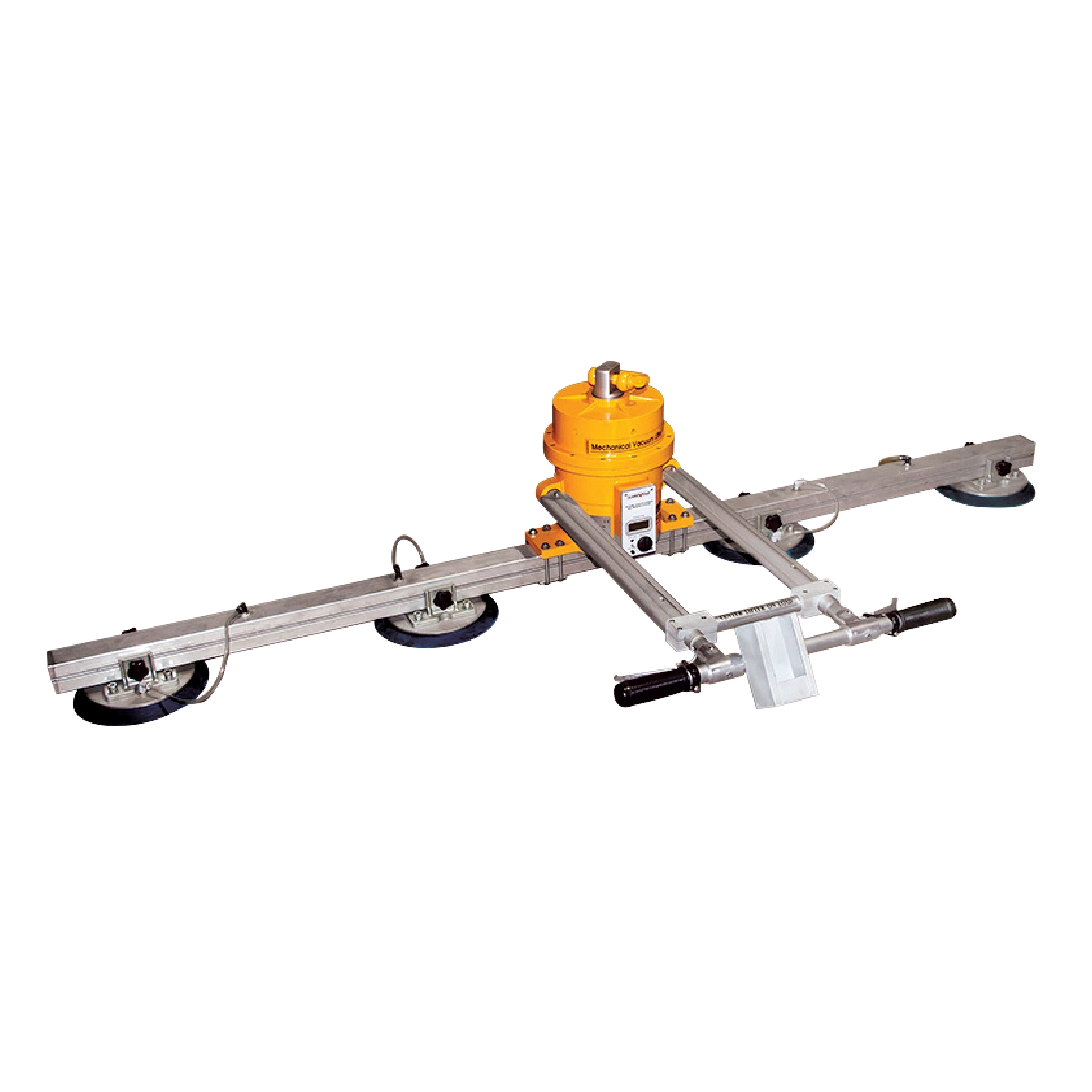

- AMVL250-4L — Inline: Four vacuum pads aligned along a single beam. Available by special order.
Key features
- Mechanical vacuum generation requires no external electricity or compressed-air supply for lifting suction.
- A vacuum gauge provides a visual indication of vacuum level.
- A low-vacuum warning alarm alerts the operator to a loss of vacuum.
- A front handle assists with positioning and guiding the lifter.
Specifications
| Manufacturer | Aardwolf |
|---|---|
| Models | AMVL250-4 / AMVL250-4L |
| Working load limit | 250 kg / 551 lb |
| Vacuum pads | 4 |
| Configurations | Standard (rectangular) / Inline (straight line) |
| Handling orientation | Horizontal |
| Vacuum system | Mechanical |
| Compatible surface type | Smooth, non-porous sheet and plate materials |
Applications
Designed for compatible polished granite, polished engineered stone, sheet metal, steel plate, plastics and fiberglass. Material condition and surface suitability must meet the manufacturer’s operating requirements.
