Aardwolf 180º Rotation Vacuum Lifter 160kg ARV-180E

Aardwolf 180º Rotation Vacuum Lifter 160kg ARV-180E

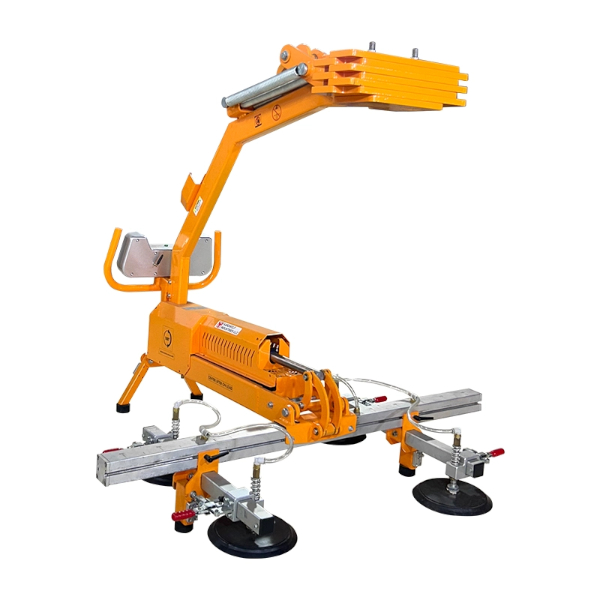

Aardwolf 180º Rotation Vacuum Lifter 160kg ARV-180E is a cordless vacuum lifter designed to integrate directly with cranes and hoists, offering a working load limit of 353 lbs and full 180° rotation. All lifting, lowering, and rotation functions are controlled via an integrated steering-wheel-style control panel, providing precise and intuitive operation. Equipped with a high-performance vacuum pump, it delivers strong, reliable suction for a wide range of flat materials, while the self-balancing system ensures stability and ease of handling throughout the lifting process.

Built for efficiency and durability, the ARV-180E features a robust electric cylinder for smooth, precise lifting and lowering, along with linear rotation control that lets operators adjust speed and angle as needed. A 24V quick-swap battery enables continuous operation with fast replacement and is supported by a cooling fan for high-duty cycles. Safety is enhanced with audio-visual monitoring for vacuum pressure and battery status, while adjustable vacuum pads with measuring scales and locking handles ensure quick setup. An integrated support stand, ergonomic handle, and wireless crane control system further improve stability, comfort, and ease of use in both workshops and job sites.

You might also want to take a look at the diverse line of Aardwolf Stone Lifters, where you will probably find the best solution for your Granite Shop.

Note

• Compatible with Aardwolf cranes & hoists (optional).
• A dual-position fabrication table is available as an optional accessory.

180º Rotation Vacuum Lifter 160kg ARV-180E Main Features

Among the features of this wonderful Rotation Vacuum Lifter, we find:

• High-performance vacuum pump – Provides strong, stable suction for reliable load handling.
• Self-balancing system – Keeps loads stable and easier to handle.
• Electric cylinder – Ensures smooth and precise lifting/lowering.
• Linear rotation control – Operators can adjust rotation speed and angle as required.
• Safety monitoring – Audio-visual alerts for vacuum pressure and battery status.
• 24V quick-swap battery – Enables battery replacement within seconds for uninterrupted operation.
• Adjustable vacuum pads – With integrated measuring scale and locking handles for quick adjustment.
• Integrated support stand – Provides stability when not in use, convenient for storage and maintenance.
• Ergonomic handle – Designed for comfortable operation over extended periods.
• Wireless crane control – Compact and modern control without separate wired remotes.

Watch the Lifter in action

Rotation Vacuum Lifter 160kg ARV-180E Technical Specifications:

Property	Value
Model	ARV-180E
Working Load Limit (WLL)	353 lbs
Rotation	180°, linear control
Battery	24V quick-swap clip-in
Net weight	289 lbs
Lifting Mechanism	Electric cylinder
