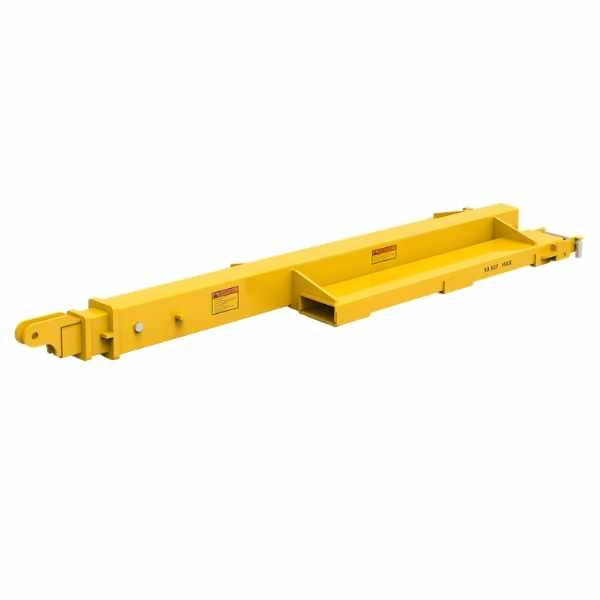

Aardwolf Forklift Boom FB3LP-5420
The Aardwolf Forklift Boom FB3LP-5420 has a low-profile design specifically intended for unloading marble and granite sheets from closed van containers where height is a critical factor. This Forklift Boom is a telescoping two-section rectangular tube steel boom built to comply with current safety guidelines and manufactured from heavy gauge Australian rectangular tube steel, AS1163-450 LO, which ensures strength, reliability, and safety.
FB3LP-5420 Main Features
Among the features of the FB3LP-5420, we find:
- The boom extension is designed so that it cannot be pulled all the way out
- The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins
- Durable powder-coat finish
NOTE: Boom lift capacities depend completely on the capacity of the forklift being used<
Watch the Boom in action

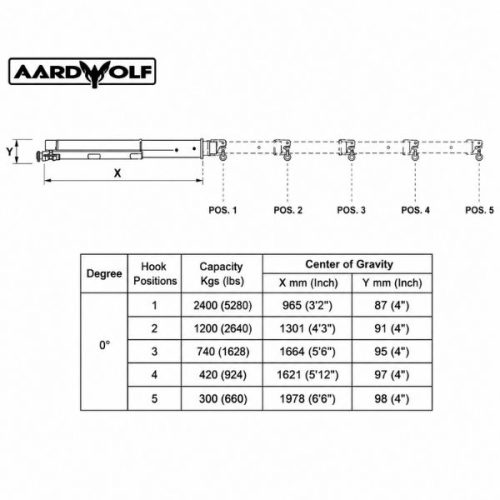

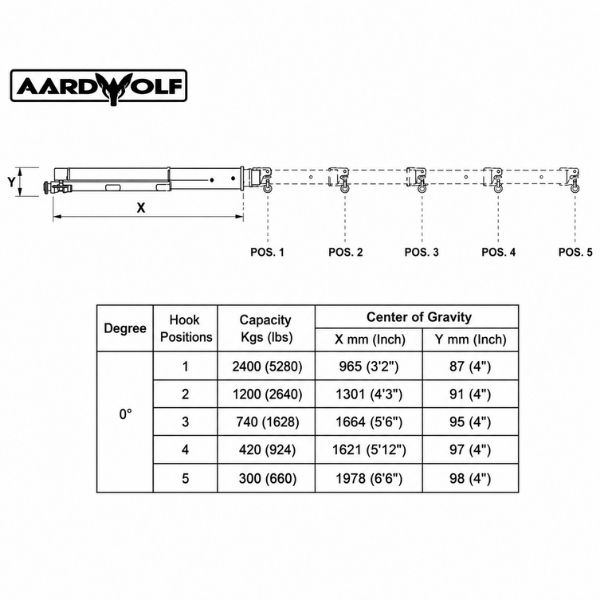

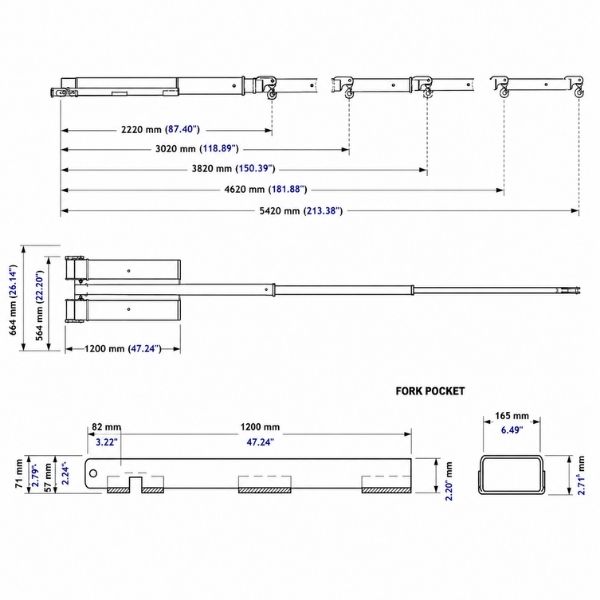

Aardwolf Forklift Boom Technical Specifications:
| Feature | Metric (mm-kg) | Imperial (inch-lb) |
|---|---|---|
| Manual telescope | 2,210 – 5,410 | 87″ – 213″ |
| Increment | 800 | 31.5″ |
| Slip onto fork designed with fork pocket | 165 x 65 | 6.5″ x 2.6″ |
| Fork pocket from the center to center | 377 | 14.8” |
| Working load limit | Retracted: 2,400 | 5,291 |
| Extended: 300 | 661 | |
| Net weight | 162 | 357 |
| Gross weight | 172 | 379 |
| Packaging dimension | 2,400 x 640 x 400 | 94″ x 25″ x 15.7″ |
