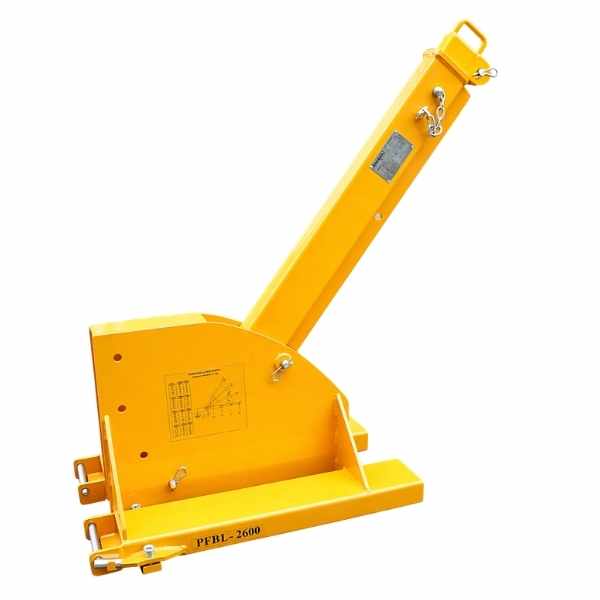

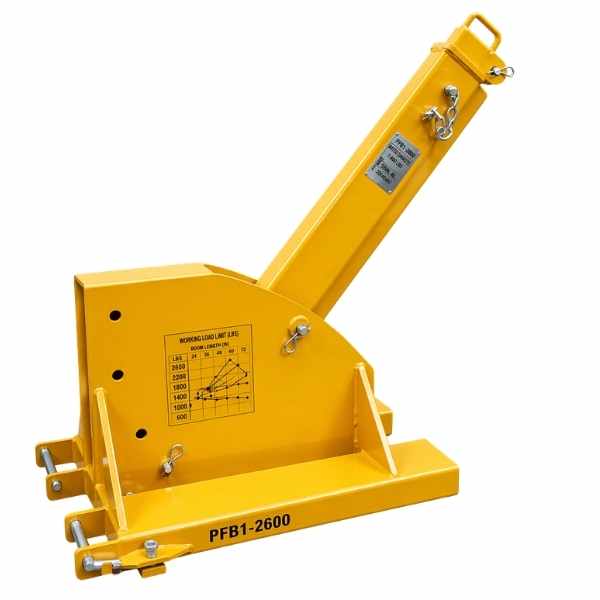

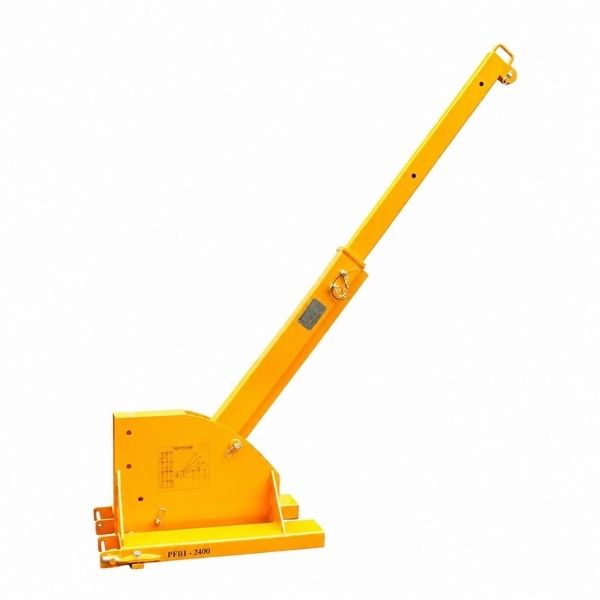

Aardwolf Pivot Forklift Boom
The Aardwolf Pivot Boom model PFB1-2600 is adjustable for height and length. The tilt facility allows the extra height to compensate for the hook and sling length lost when lifting with a jib attachment.
Pivot Forklift Boom Features
Among the features of the PFB1-2600, we find:
- The boom extension is designed so that it cannot be pulled all the way out
- The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins

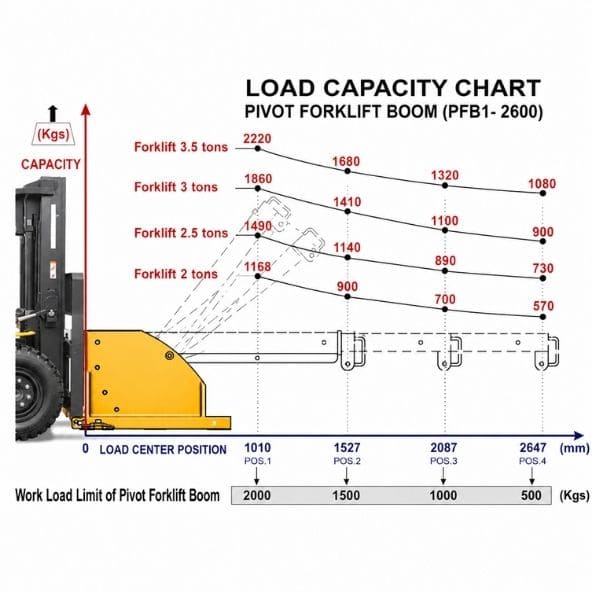

NOTE: Boom lift capacities depend completely on the capacity of the forklift being used

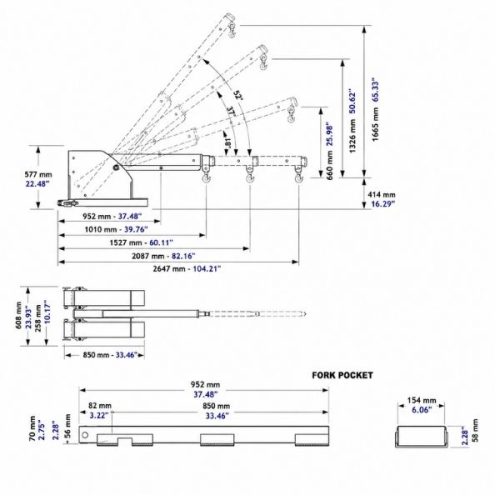

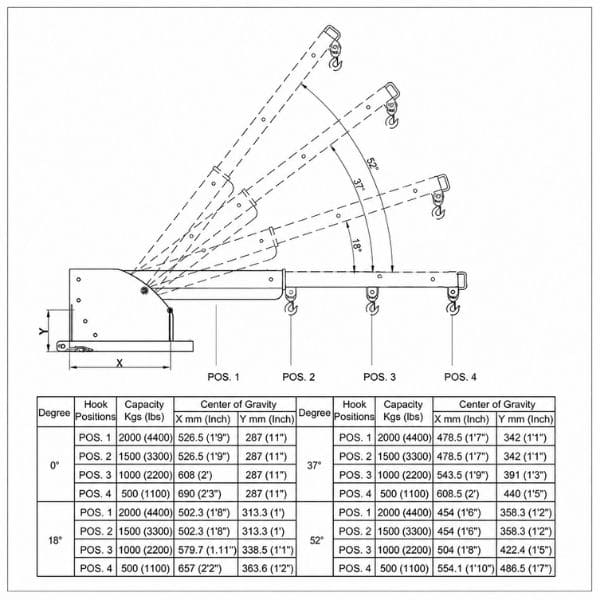

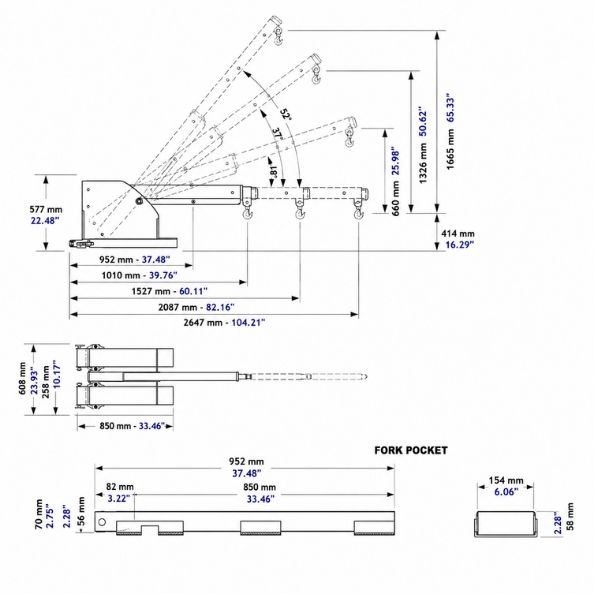

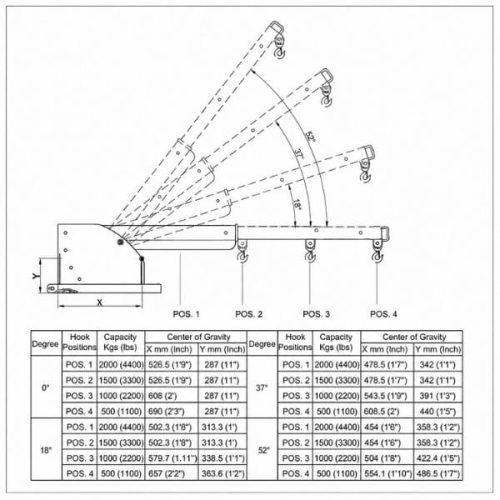

Aardwolf Forklift Boom Technical Specifications:
| Feature | Metric (mm-kg) | Imperial (inch-lb) |
|---|---|---|
| Slip onto forks designed with fork pockets | 154 x 58 | 6.1″ x 2.3″ |
| Fork pockets | 366 | 14.4″ |
| Manual telescope | 1,500 – 2,600 | 59″ – 102.4″ |
| Increment | 560 | 22″ |
| Working load limit | Retracted: 1,500 | 3,307 |
| Extended: 500 | 1,102 | |
| Net weight | 151 | 333 |
| Gross weight | 160 | 353 |
| Packaging dimension | 1,750 x 620 x 710 | 68.9″ x 24.4″ x 28″ |
