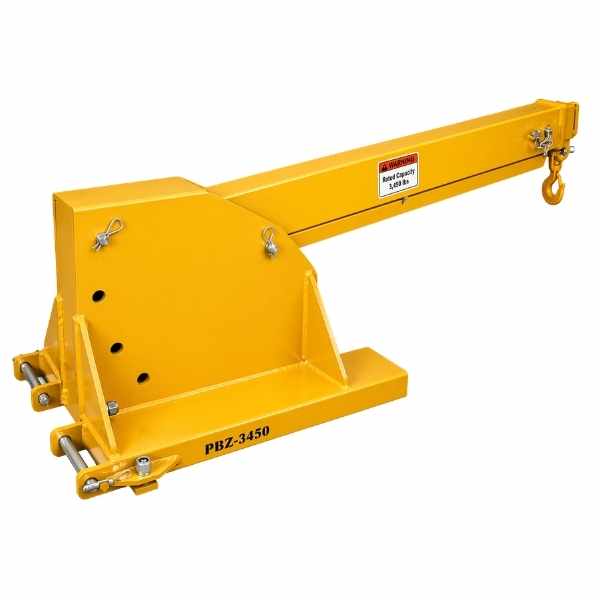

Aardwolf Pivot Forklift Boom PFB2-3450
The Aardwolf Pivot Forklift Boom PFB2-3450 is adjustable for height and length. The tilt facility allows the extra height to compensate for the hook and sling length lost when lifting with a jib attachment.
Pivot Forklift Boom PFB2-3450 Features
Among the features of the PFB2-3450, we find:
- The boom extension is designed so that it cannot be pulled all the way out
- The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins
- Adjusts from 0 to 52 degrees

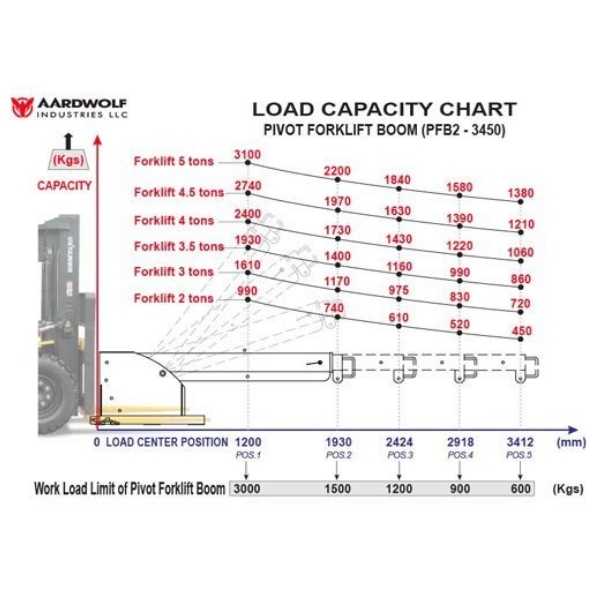

NOTE: Boom lift capacities depend completely on the capacity of the forklift being used

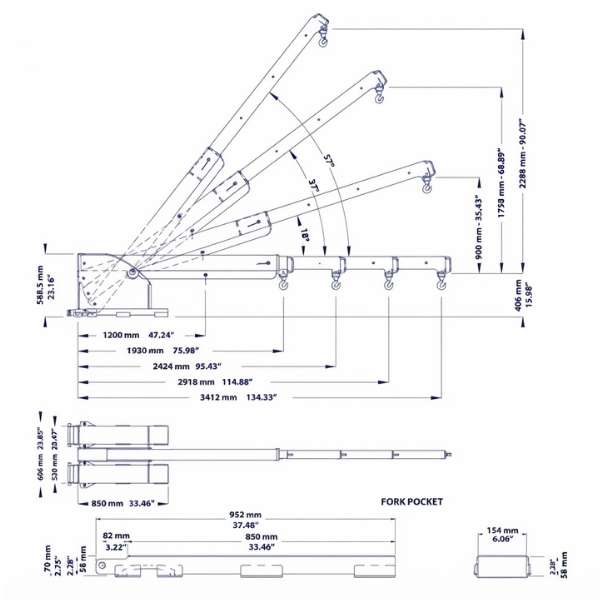

Aardwolf Forklift Boom Technical Specifications:
| Feature | Metric (mm-kg) | Imperial (inch-lb) |
|---|---|---|
| Slip onto forks designed with fork pockets | 154 x 58 | 6.1″ x 2.3″ |
| Fork pockets | 366 | 14.4″ |
| Manual telescope | 1,930 – 3,412 | 76″ – 134.3″ |
| Increment | 494 | 19.4″ |
| Working load limit | Retracted: 1,500 | 3,307 |
| Extended: 600 | 1,322 | |
| Net weight | 196 | 432 |
| Gross weight | 206 | 454 |
| Packaging dimension | 2,250 x 620 x 730 | 88.6″ x 24.4″ x 28.7″ |
Watch the Boom in action
