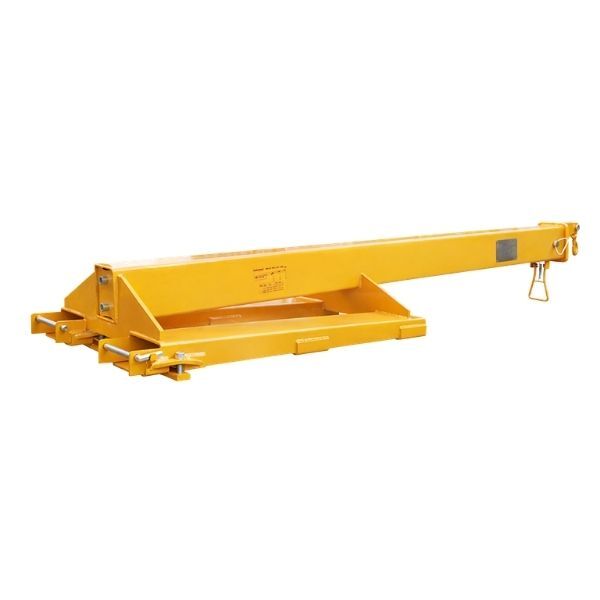

Aardwolf Forklift Jib FB4-4800
The Aardwolf Forklift Jib FB4-4800 are made from high-grade Australian rectangular tube steel, AS1163-450 LO, which ensures strength, reliability and safety. The Aardwolf forklift jibs compliment the patented range of Aardwolf lifting clamps.
The Forklift Jib FB4-4800 is a telescoping two section rectangular tube steel jib for use on 5t – 8t forklift trucks. It offers versatility with maximum visibility for the driver.
Jib Main Features
- Jib extension is designed so it cannot be pulled all the way out.
- The jib is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins.

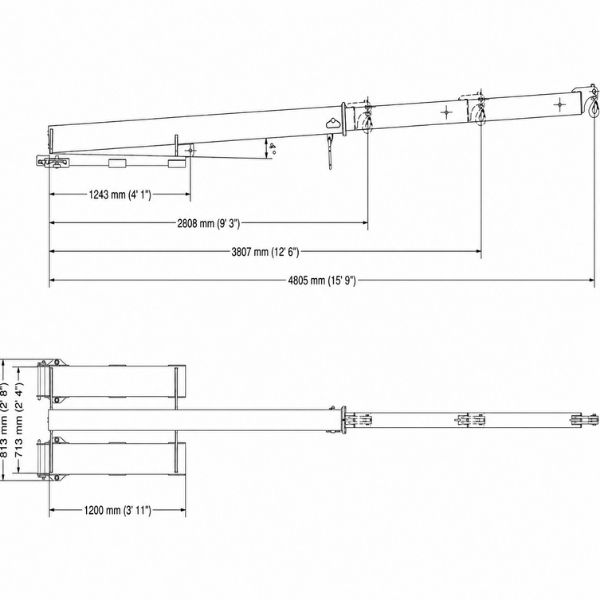

Aardwolf Forklift Jib Technical Specifications:
| Feature | Metric (mm-kg) | Imperial (inch-lb) |
|---|---|---|
| Capacity | Fully retracted – 3,000 kg, | Fully retracted – 6,613.87 lb, |
| fully extended – 1,000 kg | fully extended – 2,204.62 lb | |
| Manually Telescopes From | 2.8 to 4.8 m in 2 increments of 1 m | 9.19 to 15.75 ft in 6.56 ft increments |
| Fits Onto Forks | 193 mm wide x 81 mm high | 7.6 in wide x 3.19 in high |
| Fork Pockets From Centre To Centre | 520 mm | 20.47 in |
| Packaging Dimensions | L 2250 x W 820 x H 580 mm | L 88.58 x W 32.28 x H 22.83 inches |
| Weight Of Unit | 198 kg | 436.52 lb |
