Aardwolf Forklift Boom FB3-5380
Aardwolf Forklift Boom FB3-5380 s a telescoping three-section rectangular tube steel boom for use on 3-ton forklift trucks and larger. It offers versatility with maximum visibility for the driver. All Forklift Booms are made from high-grade Australian rectangular tube steel, AS1163-450 LO, which ensures strength, reliability, and safety. The Forklift Booms complement the patented range of Aardwolf lifting clamps. This forklift boom has a lifting capacity of over 5,290 pounds and over 660 pounds fully extended.
FB3-5380 main Features
Among the features of the FB3-5380, we find:
- The boom extension is designed so it cannot be pulled all the way out
- The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins
- Maximum load capacity, fully retracted – 5,291 LBS, fully extended – 661 LBS.

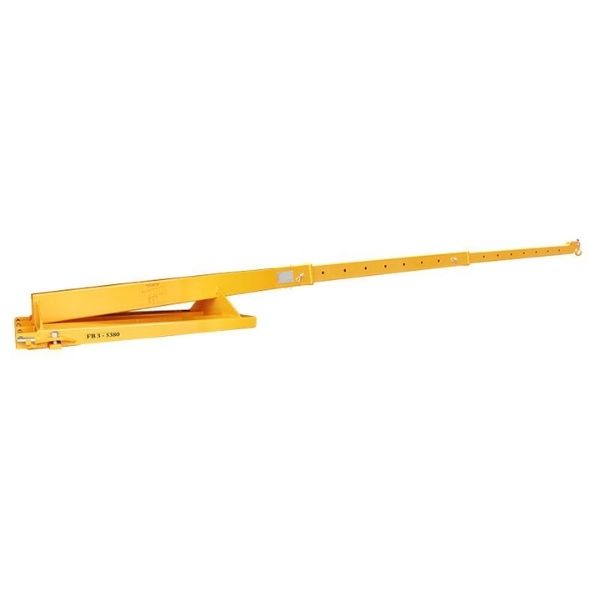

- Manually telescopes from 86.5″ to 212 in increments of 31.3
NOTE: Boom lift capacities depend completely on the capacity of the forklift being used

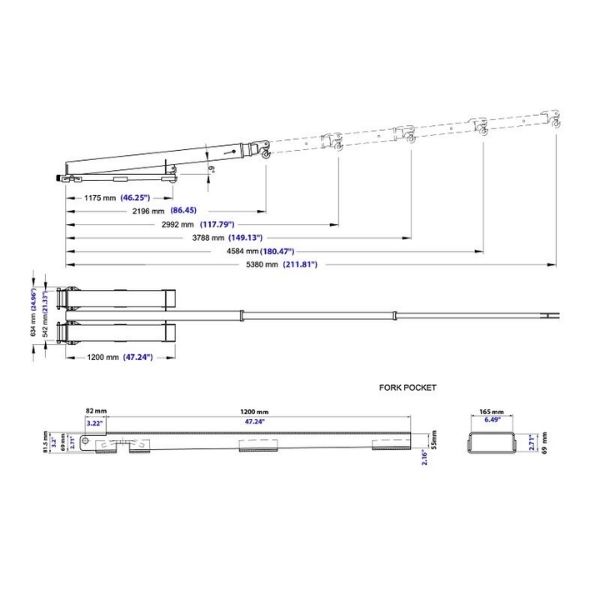

Aardwolf Forklift Boom Technical Specifications:
| Feature | Metric (mm-kg) | Imperial (inch-lb) |
|---|---|---|
| Manual telescope | 2196 – 5380 | 86.5” – 212” |
| Increment | 796 | 31.3″ |
| Slip onto fork designed with fork pocket | 165 x 65 | 6.5″ x 2.6″ |
| Fork pocket | 377 | 14.8” |
| Working load limit | Retracted: 2,400 | 5,291 |
| Extended: 300 | 661 | |
| Net weight | 163 | 359 |
| Gross weight | 173 | 381 |
| Packaging dimension | 2350 x 630 x 580 | 92.5′ ‘x 24.8’ ‘x 22.8” |
